Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should obtain the latest relevant information before placing orders and should verify that such information is current and complete.
EVM IMPORTANT NOTICE Texas Instruments (TI) provides the enclosed product(s) under the following conditions: This evaluation kit being sold by TI is intended for use for ENGINEERING DEVELOPMENT OR EVALUATION PURPOSES ONLY and is not considered by TI to be fit for commercial use. As such, the goods being provided may not be complete in terms of required design-, marketing-, and/or manufacturing-related protective considerations, including product safety measures typically found in the end product incorporating the goods.
EVM schematic located in the EVM User’s Guide. When placing measurement probes near these devices during operation, please be aware that these devices may be very warm to the touch. Copyright 2002, Texas Instruments Incorporated Mailing Address: Texas Instruments Post Office Box 655303...
About This Manual This user’s guide describes the characteristics, operation, and use of the TPA3001D1EVM. The user’s guide includes a schematic diagram, bill of mate- rials (BOM), and board layout diagrams. How to Use This Manual This document contains the following chapters: Chapter 1—Introduction...
Page 6
Information About Cautions and Warnings Information About Cautions and Warnings This book may contain cautions and warnings. This is an example of a caution statement. A caution statement describes a situation that could potentially damage your software or equipment. This is an example of a warning statement. A warning statement describes a situation that could potentially cause harm to you.
Quick Start List for the Platform Quick Start List for Stand-Alone Operation Bill of Materials, Schematic, and PCB Layers TPA3001D1EVM Bill of Materials TPA3001D1EVM Schematic TPA3001D1EVM PCB Layers ..........
Page 8
3–3 TPA3001D1EVM Bottom Layer Tables 2–1 Typical TI Plug-N-Play Platform Jumper and Switch Settings for the TPA3001D1 2–2 Typical TPA3001D1EVM Jumper Settings 2–3 Platform Jumper and Switch Settings for the TPA3001D1 2–4 Typical TPA3001D1EVM Jumper Settings 2–5 TPA3001D1EVM Gain Settings 3–1...
This chapter provides an overview of the Texas Instruments (TI) TPA3001D1EVM class-D audio amplifier evaluation module. It includes a list of EVM features, a brief illustrated description of the module, and a list of EVM specifications. Topic Description ...........

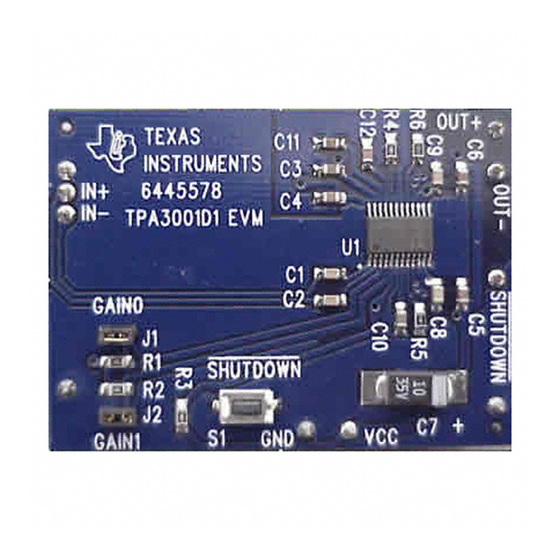

Description 1.1 Description The TPA3001D1 evaluation module (EVM) is a 20-W class-D mono audio power amplifier complete with a small number of external components mounted on a circuit board measuring approximately 2 1/4 inches by 1 1/2 inches (Figure 1–1 and Figure 1–2). Figure 1–1.
TPA3001D1EVM Specifications The platform, which has room for a single TPA3001D1EVM, is a convenient vehicle for demonstrating TI’s audio power amplifier and related evaluation modules. The EVMs simply plug into the platform, which automatically provides power to the modules, interconnects them correctly, and connects them to a versatile array of standard audio input and output jacks and connectors.
Follow the steps in this chapter to quickly prepare the TPA3001D1EVM for use. Using the TPA3001D1EVM with the TI plug-n-play audio amplifier evaluation platform is a quick and easy way to connect power, signal and control inputs, and signal outputs to the EVM using standard connectors.
1) ON = Jumper installed, OFF = Jumper NOT Installed, X = Don’t care 2) Set to ON when tone control board SLOP109 is installed in U1, otherwise set to OFF. 3) R3 must be removed from the TPA3001D1EVM to allow the headphone jack to control the shutdown of the TPA3001D1.
2.3 Quick Start List for the Platform Follow these steps when using the TPA3001D1EVM with the TI plug-n-play audio amplifier evaluation platform (see the platform user’s guide, SLOU011, for additional details). Platform Preparations 1) Ensure all external power sources and platform power switch S1 are set to OFF.
Quick Start List for the Platform Figure 2–1. Quick Start Platform Map Power Input Signal Conditioning Audio Input ****CAUTION**** Do not insert or remove EVM boards with power applied Plug-N-Play Audio Amplifier Evaluation Platform SLOP097 Rev. C.1 Audio Power Amps Power In/Out Speaker...
15) Adjust the signal source level as needed. 2.4 Quick Start List for Stand-Alone Operation Follow these steps to use the TPA3001D1EVM as a stand-alone unit, or when connecting it into existing circuits or equipment. Connections to the TPA3001D1 module header pins can be made via individual sockets, wire-wrapping, or soldering to the pins, either on the top or the bottom of the module circuit board.
Quick Start List for Stand-Alone Operation Evaluation Module Preparations 6) Adjust the source signal level as needed. 7) Use jumpers GAIN0 and GAIN1 to set the gain as shown in Table 2–5. Table 2–5. TPA3001D1EVM Gain Settings GAIN1 Note: ON = Jumper installed,...
Bill of Materials, Schematic, and PCB Layers This chapter contains the bill of materials, schematic, and board layout for the TPS3001D1EVM. Topic TPA3001D1EVM Bill of Materials TPA3001D1EVM Schematic TPA3001D1EVM PCB Layers Chapter 3 .......
Page 20
TPA3001D1EVM Bill of Materials 3.1 TPA3001D1EVM Bill of Materials Table 3–1. TPA3001D1EVM Bill of Materials Reference Description C1, C2 Capacitor, ceramic, 0.47 F, 80%/–20%, Y5V, 16 V C3–C6, C10, C11 Capacitor, ceramic, 1 F, 80%/–20%, Y5V, 25 V Capacitor, electrolytic, 10 F, 35 V, SMD C8,C9 Capacitor, ceramic, 0.22 F, 80%/–20%, Y5V,...
Page 21
3.2 TPA3001D1EVM Schematic Figure 3–1. TPA3001D1EVM Schematic Diagram 120 k 0.47 F IN– 0.47 F SHUTDOWN 120 k V CC 0.22 F 10 F 120 k TPA3001D1 V CC VREF GAIN0 BYPASS GAIN1 COSC 220 pF SHUTDOWN ROSC PGND AGND...
TPA3001D1EVM PCB Layers 3.3 TPA3001D1EVM PCB Layers The following illustrations depict the TPA3001D1EVM PCB assembly and layers. These drawings are not to scale. Figure 3–2. TPA3001D1EVM Top Layer Figure 3–3. TPA3001D1EVM Bottom Layer...
