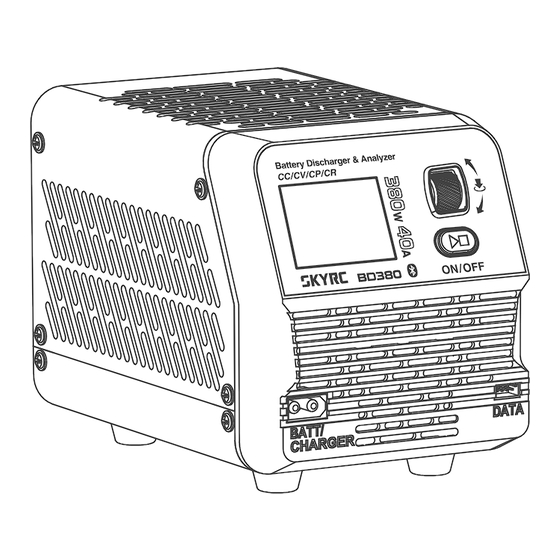

Skyrc BD380 Instruction Manual

Skyrc BD380 Instruction Manual

Battery discharger & analyzer

Advertisement

Quick Links

Instruction Manual
Battery Discharger & Analyzer
SK-600153 V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BD380 and is the answer not in the manual?

Questions and answers

Summary of Contents for Skyrc BD380

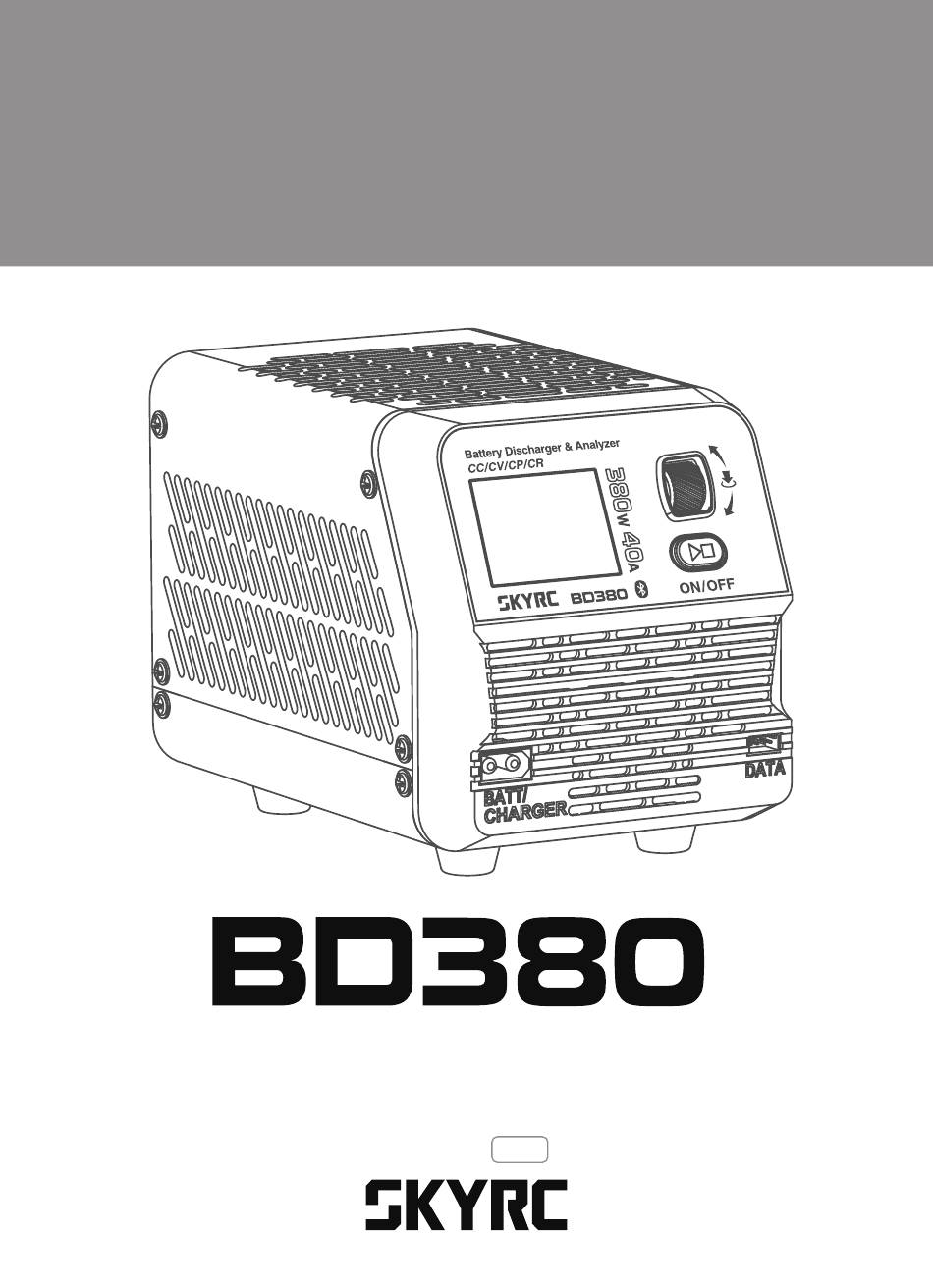

  • Page 1 Instruction Manual Battery Discharger & Analyzer SK-600153 V1.0...
  • Page 2 BD380 is much more than a simple battery discharger or a battery load tester. It will test virtually any type or size of battery, any chemistry or number of cells, up to 30 volts.
  • Page 3: What's Inside The Box

    WHAT'S INSIDE THE BOX Instruction Manual BD380 Discharger*1 Instruction Manual*1 Cable*1 FEATURES • It displays real-time battery voltage, discharged capacity, and discharge current. • It can test battery capacity that helps select batteries with the desired capacity. • It saves time when users wish to store their large-capacity batteries.
  • Page 4: Specification

    SPECIFICATION Item Option Description Operating Voltage 3.0V-30.0V When connected to 3.0V-30.0V Discharge Voltage external power supply Range Main port only 5.9V-30.0V Low voltage Less than 3.0V Error Thresholds High voltage Higher than 30.5V Discharge Power Max. 380W Discharge Current 0.3A-40.0A Connector Interface XT60 CC Constant Current...
  • Page 5 MAXIMUM DISCHARGE POWER CHART Min. Discharge Max. Discharge Battery No. of Min. Cut-off Current (A) Current (A) Voltage Type Cell Voltage Discharging power: Discharging power: 380W 380W 8.40 40.00 40.00 12.60 30.15 40.00 12.0 16.80 22.61 31.66 LiPo 15.0 21.00 18.09 25.33 18.0...
  • Page 6: Operating Modes

    BD380 has four operating modes, and each operating mode has distinct use cases. Constant Current (CC) Mode In this mode, the BD380 maintains a constant current output regardless of changes in resistance or voltage. This mode emphasizes the constant current flow for predictable energy depletion, ideal for precise capacity testing and battery health assessment.
  • Page 7: Constant Power (Cp) Mode

    Constant Power (CP) Mode CP mode allows the BD380 to deliver a constant power output irrespective of variations in voltage or current. It is beneficial for reflecting the ability to maintain constant power output, adapting to the needs of diverse applications requiring steady power delivery.
  • Page 8: Operation

    OPERATION 1. Connect the battery to the BD380. Once connected, the BD380 will power on and start up. 2. Choose one of the four operating modes you need. 3. Setting parameters such as discharge time and cutoff voltage for discharging via the knob.
  • Page 9: App Control

    APP CONTROL BD380 is equipped with a built-in Bluetooth module, allowing it to be connected and controlled using a mobile phone. You can easily achieve this by downloading the app "SkyCharger", which is available for free on Google Play and the App Store.
  • Page 10: Warranty And Service

    This charger is designed and approved exclusively for use with the types of battery stated in this Instruction Manual. SkyRC accepts no liability of any kind if the charger is used for any purpose other than that stated. We are unable to ensure that you follow the instructions supplied with the charger, and we have no control over the methods you employ for using, operating, and maintaining the device.
