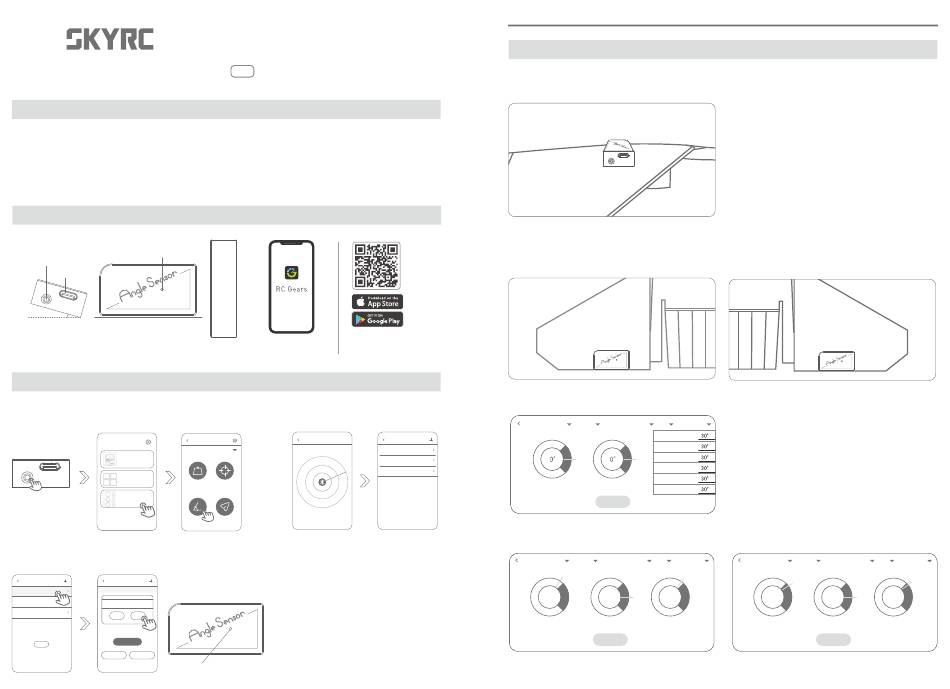

ANGLE GAUGE
Instruction Manual
Introduction
Congratulations on the purchase of SkyRC Angle Gauge!
The gauge consists of three sensing modules, which are wirelessly controlled through Bluetooth. It
measures the surface angle and relative angle difference.
Download the RC Gears app to get started to measure the real-time measuring data.
What is inside the box
LED Indicator
Switch
ChargePort
* Actual angle to measure
* The right-angle side is the reference side for
measuring
SKYRC Angle Gauge x3
Connecting
1. Long press to turn on. Enable the Bluetooth on your
smartphone and open the APP .
RC Gears
Name
GNSS Performance Analyzer
GSM020
Corner Weight System
Weight
SCWS2000
Center of Gravity Gauge
* Long press the switch
CGG-020 & SAM-020
to turn on the modules.
Angle
3. Set up the reference surface, left and right. The corresponding module flashes blue during
the setting.
Angle meter
Angle meter
Unassigned Scale
Unassigned Scale
Unassigned Scale
未分配位置
Position
Reference
未分配位置
Unassigned Scale
Back
OK
进入
进入
Reference
Left
Right
* The module flashes in blue
1.
SKYRC Angle Gauge
v1.0
SK - 500040
* Please scan the QR code
to download the RC Gears app
RC Gears
from App Store or Google Play!
2. Search to connect
Center of Gravity Gauge
Searching...
Model one
CG
Throw
Measuring Angles
1. Connect the modules.
2. Fix the reference module to the position where the surface of the model aircraft is referenced.
3. Fix the left and right modules on the rudder surface to measure.
Note: The right-angle must face the outside of the rudder surface and be parallel to the edge of
the rudder surface.
4. Set and input the angle in reference to the model aircraft manual.
Name
Model one
Angle-meter
Unassigned Scale
Unassigned Scale
Unassigned Scale
Left angle
5. Set the angle to the maximum with the remote control, and check whether the calibration range
meets the requirements indicated in the manual.
Name
Model one
37.5°
Left angle
RED warns that the maximum adjustable angle of the
corresponding wing is greater than the calibration range
Elevator
Reference: sensor - relative
Angle
Set angle
Up aileron
Down aileron
Up elevator
Down elevator
Up flap
Reference angle
Down flap
ZERO
Elevator
Reference: sensor - relative
Angle
Set angle
Name
0°
35.6°
Reference angle
Right angle
ZERO
GREEN indicates that the maximum adjustable angle of the
corresponding wing is within the calibration range
SKYRC Angle Gauge Instruction Manual
Model one
Elevator
Reference: sensor - relative
Angle
Set angle
27.2°
0°
28.5°
Left angle
Reference angle
Right angle
ZERO
2.
SKYRC Angle Gauge
