Skyrc BD350 Instruction Manual

INSTRUCTION
MANUAL

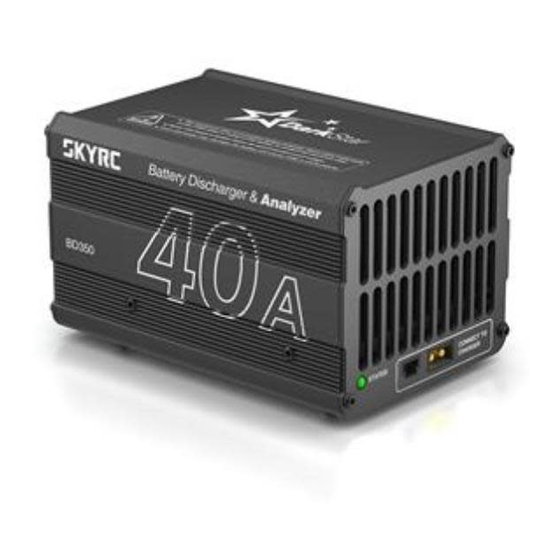

BD350 BATTERY DISCHARGER & ANALYZER

INTRODUCTION

Thanks for choosing SkyRC BD350 discharger.
BD350 discharger supports most RC batteries and works with SkyRC T1000* charger with a discharge
current of up to 40A and discharge power of 350W.
There should be more models to work with, and we will update the website!
*

OPERATION INSTRUCTION

Discharge
1. Upon connecting the power supply, T1000 automatically powers on and enters the main menu;
2. Connect BD350 discharger to T1000;
3. Discharge the battery by connecting to T1000 on Port A;
4. Select Discharge: set the cut-off voltage, the discharge current, and the number of cells;
5. Start the program.
SK-600147
r y
B a t t e
L i P o
-1-
Analyze via Charge Master PC Software
BD350 is more than a simple battery discharger. It is a powerful test instrument that
measures, graphs, and compares the parameters of various batteries. It allows for the
precise measuring of battery capacity and performance.
No more guesswork anymore when choosing the best battery for RC racing!
Notice:
As of the time of releasing, the BD350 discharger only works with T1000.

EXPLANATION OF STATUS LEDS

LED
Stays Green
Stays Red
Flashes Red

SPECIFICATION

Working Voltage: DC 5V
Discharge Power: 350W
Discharge Current: 0.1-40A
o
Over Temp. Protection: >95 C
Status
Standby
Discharging
Error
o o
Working Temp.: 0 C~40 C
Working Humidity: 0%~75%
Size: 157*105*93mm
Net Weight: 1224g
-2-
