INSTRUCTION MANUAL
Diff Analyzer
INTRODUCTION

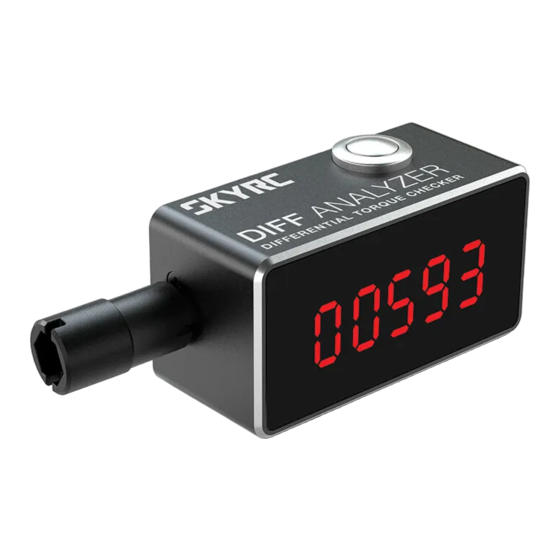

SkyRC has presented a Diff Analyzer for setting up and fine-tuning the hardness of differentials
for 1/10th scale cars and Mini-Z. Diff Analyzer provides numeric data to which helps to assess
or replicate a specific hardness. Changing the diff oil will not be by feeling or guessing
anymore. The handy device helps measure the diff setting, ensuring consistent hardness after
building and setup.
The Diff Analyzer have a precision unibody enclosure crafted from a single block of aluminum
with anodized finish, resulting in thinner, more durable and incredibly beautiful designs. It
comes out of the box with an adapter that allows you to measure 1/10th scale and Mini-Z. An
adapter for 1/8th scale can be purchased optionally.Inside it is the key components that allow
the spin and calculation of every kind of hardness of diff and viscosity of diff oil. The analyzer
is powered by any universal Micro USB output or a power bank. The device comes in a
pocketable dimension of 54x28x24.8 mm weighing 59 g only.
7mm Wheel Adaptor
for 1/10th Scale
SK-500026
Operation Button
Micro USB Port
LED Dispaly
