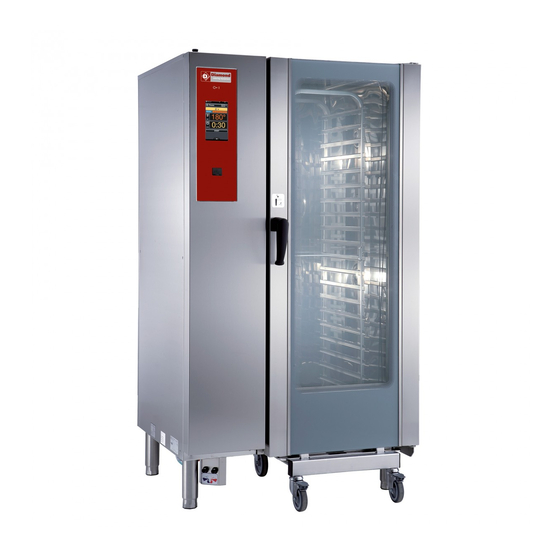

Diamond SBGT/20-CL-AGA Installation, Operation And Maintenance Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
09/2016
Mod: SBGT/20-CL-AGA
Production code: 647734

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SBGT/20-CL-AGA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Diamond SBGT/20-CL-AGA

Summary of Contents for Diamond SBGT/20-CL-AGA

  • Page 1 09/2016 Mod: SBGT/20-CL-AGA Production code: 647734...
  • Page 2 - GAS STEAM/CONVECTION OVENS INSTALLATION, OPERATION AND MAINTENANCE Page (*) Lingua originale / Original language / Originalsprache / Oorspronkelijke taal / Originalspråk / Original- sprog / Alkuperäinen kieli / Originalspråk / Langue originale / Idioma original / Idioma original / Αρχική γλώσσα...
  • Page 3 6-10 GN1/1 GN2/1 90°...
  • Page 4 安装图 SCHEMA DI INSTALLAZIONE INSTALLATIONSRITNING 取付図 INSTALLATION DIAGRAM INSTALLATIONSDIAGRAM INSTALLATIONSPLAN 설치 도면 ESQUEMAS DE INSTALAÇAO SCHEMA D'INSTALLATION Ó×ÅÄÉÁÃÑÁÌÌÁÔÁ ÅÃÊÁÔÁÓÔÁÓÇÓ ESQUEMA PARA LA INSTALACIÓN ASENNUSKAAVIOT INSTALLASJONSSKJEMAER INSTALLATIESCHEMA 6 GN 1/1 Mod. 描述 ....页码 Descrizione ....Pagina 商品概要 ..ページ Description ....Page 설명 ..... 페이지 Deschreibung ..Seite Description ....Page Descripción ....Pág.
  • Page 5 安装图 INSTALLATIONSRITNING SCHEMA DI INSTALLAZIONE 取付図 INSTALLATIONSDIAGRAM INSTALLATION DIAGRAM 설치 도면 INSTALLATIONSPLAN ESQUEMAS DE INSTALAÇAO Ó×ÅÄÉÁÃÑÁÌÌÁÔÁ ÅÃÊÁÔÁÓÔÁÓÇÓ SCHEMA D'INSTALLATION ESQUEMA PARA LA INSTALACIÓN ASENNUSKAAVIOT INSTALLASJONSSKJEMAER INSTALLATIESCHEMA 10 GN 1/1 Mod. 描述 ....页码 Descrizione ....Pagina 商品概要 ..ページ Description ....Page 설명 ..... 페이지 Deschreibung ..Seite Description ....Page Descripción ....Pág.
  • Page 6 INSTALLATIONSRITNING 安装图 SCHEMA DI INSTALLAZIONE INSTALLATIONSDIAGRAM 取付図 INSTALLATION DIAGRAM ESQUEMAS DE INSTALAÇAO INSTALLATIONSPLAN 설치 도면 Ó×ÅÄÉÁÃÑÁÌÌÁÔÁ ÅÃÊÁÔÁÓÔÁÓÇÓ SCHEMA D'INSTALLATION ASENNUSKAAVIOT ESQUEMA PARA LA INSTALACIÓN INSTALLASJONSSKJEMAER INSTALLATIESCHEMA 10 GN 2/1 Mod. 描述 ....页码 Descrizione ....Pagina 商品概要 ..ページ Description ....Page 설명 ..... 페이지 Deschreibung ..Seite Description ....Page Descripción ....Pág.
  • Page 7 安装图 INSTALLATIONSRITNING SCHEMA DI INSTALLAZIONE 取付図 INSTALLATIONSDIAGRAM INSTALLATION DIAGRAM 설치 도면 INSTALLATIONSPLAN ESQUEMAS DE INSTALAÇAO Ó×ÅÄÉÁÃÑÁÌÌÁÔÁ ÅÃÊÁÔÁÓÔÁÓÇÓ SCHEMA D'INSTALLATION ASENNUSKAAVIOT ESQUEMA PARA LA INSTALACIÓN INSTALLASJONSSKJEMAER INSTALLATIESCHEMA 20 GN 1/1 Mod. 描述 ....页码 Descrizione ....Pagina 商品概要 ..ページ Description ....Page 설명 ..... 페이지 Deschreibung ..Seite Description ....Page Descripción ....Pág.
  • Page 8 安装图 INSTALLATIONSRITNING SCHEMA DI INSTALLAZIONE 取付図 INSTALLATIONSDIAGRAM INSTALLATION DIAGRAM ESQUEMAS DE INSTALAÇAO INSTALLATIONSPLAN 설치 도면 Ó×ÅÄÉÁÃÑÁÌÌÁÔÁ ÅÃÊÁÔÁÓÔÁÓÇÓ SCHEMA D'INSTALLATION ASENNUSKAAVIOT ESQUEMA PARA LA INSTALACIÓN INSTALLASJONSSKJEMAER INSTALLATIESCHEMA 20 GN 2/1 Mod. Descrizione ....Pagina 描述 ....页码 Description ....Page 商品概要 ..ページ Deschreibung ..Seite 설명...

  • Page 9: Table Of Contents

    STEAM/CONVECTION GAS OVENS INSTALLATION AND OPERATING INSTRUCTIONS (for the United Kingdom) Summary Page - Installation diagrams............4 7.3 REPLACING THE GAS VALVE ........ 47 APPLIANCE IDENTIFICATION.......... 39 7.4 GAS VALVE ADJUSTMENT ........47 7.5 TABLE 2: NOZZLES AND ADJUSTMENTS / GAS TYPES.. 48 I.

  • Page 10: General Characteristics

    I. GENERAL CHARACTERISTICS 1. TABLE 1: TECHNICAL DATA for AUSTRALIA 6GN2/1 10 GN 1/1 10 GN 2/1 20 GN 1/1 6 GN 1/1 20 GN 2/1 n° GRIGLIE (AOS061E) AOS061GTG1 AOS101GTG1 AOS102GTG1 AOS201GTG1 AOS202GTG1 AOS061GTD1 AOS101GTD1 AOS102GTD1 AOS201GTD1 AOS202GTD1 MODEL FCZ061GTG FCZ101GTG FCZ102GTG...

  • Page 11: Appliance Description

    Attention: Appliance installation, any maintenance 2. APPLIANCE DESCRIPTION work and conversion to another type of gas must only be carried out by professionally qualifi ed personnel authorised by the Manufacturer. This handbook concerns various appliance models. For further information regarding your model, refer to Table •...

  • Page 12: Residual Risks

    3.2 RESIDUAL RISKS Cat ......gas category P mbar ....gas pressure The machine has several risks that were not completely elimina- ∑ Qn ..... gas power ted from a design standpoint or with the installation of adequate G30-Lb1-...G120... consumption of various gas types protection devices.

  • Page 13: Installation Instructions

    II. INSTALLATION INSTRUCTIONS the height of the worktop by means of the adjustable feet. Attention: The external panels of the oven must be • The appliance is not suitable for built-in installation. removed for the operations described in this section. Attention: As the unit must be operating in order to carry out Make sure the steam coming from the oven di-...

  • Page 14: Instructions Regarding The Exhaust System

    KEY: CONSTRUCTION TYPE Manifold / draught damper accessory (to be ordered from the manufacturer) Steam generator burnt gas outlet Compartment convector burnt gas outlet Adapter ring for commercial ducts (to be ordered from the manufacturer) Conical sections for single outlet (accessory not mandatory) Tmax=350°C Fixing screws (supplied);...

  • Page 15: Power Cable Installation

    4.1 POWER CABLE INSTALLATION WATER CHARACTERISTICS INLET "CWI1" To guarantee correct appliance operation, several water To connect the power cable to the appliance, proceed as follows: treatment systems may have to be installed. For that purpose, Model 6 - 10 - 20 GN see the instructions of the following Flow Chart : •...

  • Page 16: Water Draining System

    Note: CHECK SUPPLY PRESSURE INPUT "CWI1" AND "CWI2" If water comes out of the AIR-BREAK (safety outlet C1) it means the drain C is blocked. Elimination of the obstruction should be The pressure measured upstream of the oven (and downstream of carried out by specialised technical personnel.

  • Page 17: Conversion To Another Type Of Gas

    • Loosen the screw "D" relevant to the gas valve pressure point 7. CONVERSION TO ANOTHER TYPE OF GAS and connect a pressure gauge with minimum resolution of 1 Pa to it; • Remove adjustment screw cap "E1". • Light the burner and select on the control panel a HOT AIR Attention: The appliance is factory set for a type of cooking cycle for the convector and STEAM for the steam gene- gas, as specifi...
  • Page 18 7.5 TABLE 2: NOZZLES AND ADJUSTMENTS / GAS TYPES FIGURE 2a - 2b 6 GN1/1 10 GN1/1 10 GN2/1 20 GN1/1 20 GN2/1 n° of GRIDS CONVECTOR ° ° ° ° ° ° BOILER ** REFERENCE ø ø ø ø ø...

  • Page 19: Gas Type Sticker

    8. SAFETY DEVICE - Power supply polarity (Phase/Neutral) inverted. - The oven electrical system is "Phase/Phase" type. In this case install the special "Transformer Kit" available from the manufacturer. - Faulty gas valve. The appliance is equipped with the following safety devices: - Flame detection electrode incorrectly positioned or disconnected.

  • Page 20: Operating Instructions

    III. OPERATING INSTRUCTIONS Before starting the appliance, carefully read this handbook. The MODELS WITH DOUBLE OPENING SYSTEM (on request) instructions and information given in it are important for correct The oven has a double opening system to prevent being exposed and optimum oven use.

  • Page 21: Description Of Control Panel

    DESCRIPTION OF CONTROL PANEL ..Humidity setting and adjustment: for activating or excluding the humidity or adjusting the required level in the The control panel has the following controls: Hot Air Cycle. ON/OFF oven switch. _______________ Hot air cycle with compartment vent open: for very dry cooking, allowing the removal of humidity when necessary (max.
  • Page 22 Fast compartment cooling: useful for going from UTILITIES one type of cooking to another at lower temperature; it enables fan rotation and automatic injection of Low speed cycle (fan): for gentle baking, water (TS < 180°C) even with the door open. such as light patisserie.
  • Page 23 Go back to previous page Active Maintaining Cycle phase. Add Maintaining Cycle (70°C): for slow and prolonged Cancel space (Backspace) cooking, typically for meat (large cuts). Activated at the end of cooking. Combinable with all cycles. Find Program Custom SPECIAL CYCLES Regeneration cycle: produces the optimum humidity Upload data in oven from USB port for fast heating of products to be regenerated.

  • Page 24: Oven Use

    OVEN USE 4. CONTROL PANEL USE 4.2 SWITCHING THE OVEN OFF To switch the oven off, press the button O (O - I) of the following Foreword: switch: When selecting certain functions, the initial status is restored if no button is pressed within 15 seconds (approx.). O °...

  • Page 25: Manual

    In this way a cooking cycle has been set; now, just close the door 4.4 MANUAL and touch START to start the Cycle. The PREHEATING stage starts, after which the message "LOAD" appears, indicating to place food in the oven; close the door to start cooking.
  • Page 26 The functions in MANUAL Cooking mode are as follows: cycle HOT AIR HUMIDITY TEMPERATURE TIME CORE PROBE adjustable x (vent x (max. 8 hours) x (from 10° to 99°) ---- > compartment vent open ---- > compartment vent closed x ---- >...
  • Page 27 UTILITIES (see page 47) The fi gure shows phase 1 with the following settings: cycle HOT AIR COMBI STEAM phase number combi cycle Fan speed * humidity 160° temperature (C°) Injection of water in compartment x (from 10sec. to 120sec.) - 0:30 cooking phase time (0 hours : 30 minutes) Reduced power...
  • Page 28 4.4.3 ADVANCED MULTITIMER 4.4.4 ECODELTA The Advanced MultiTimer function is the same as the MultiTimer The ECO DELTA function enables cooking without har- with the addition of the following functions: ming the food with high temperatures; this ensures more gentle and more even cooking, with less weight loss.
  • Page 29 1) Remove the core probe "A" from its seat "B" and insert it in 4.4.6 FSC (Food Safe Control) the product without forcing excessively, making sure the tip (the sensitive part) is positioned near the centre of the product. The FOOD SAFE CONTROL (FSC) is a device enabling the microbiological SAFE condition of the food to be controlled during cooking.

  • Page 30: Automatic

    3) Preset COOKING (example in fi gure) 4.5 AUTOMATIC ▼ Steamed - Custom - Codfi sh fi llet The AUTOMATIC control mode is used for automatic cooking, - Cuttlefi sh - Octopus by setting several simplifi ed functions. This saves the operator - Seafood salade from having to know the cooking parameter values (temperature, time, humidity) and makes the same type of cooking more equal.
  • Page 31 SPECIAL CYCLES PRESET MANAGEMENT The special cycles appear on the AUTOMATIC mode main screen, Preset management allows uploading or download presets (from and are as follows: or to USB key), deleting them or restoring factory defaults. Preset management can be modifi ed as required by going to Settings>...

  • Page 32: Programs

    - Quick maturing process, time-saving and possibility of using 4.6 PROGRAMS fresh cuts of meat. - Lower weight loss, 5-8% (depending on the quality of the food and core probe temperature setting). The PROGRAMS control mode is used for already carrying out - Considerable saving of portions for sale.
  • Page 33 4.6.2 START PROGRAM MANAGE PROGRAMS Press the button of the Program Name on the Program List to This function allows the programs to be managed using the access the Start screen and set the cooking parameters or start the program. following buttons: - Select All = to select all programs in all categories.

  • Page 34: Mt Programs

    ATTENTION: This screen will show checkmarks on the categories PROGRAMS DRAWER to which the program is already linked. If the checkmarks are removed from these categories the program The Programs drawer contains functions for the Programs and Presets. will be unlinked. 5) Press "Save"...

  • Page 35: Cleaning

    Warning: MANAGE PRESETS In case of complete emptying of the detergent and/or rinse aid This function is used to manage presets with the following buttons: containers or emptying of their supply tubes, the CLEANING - Select All = to select all the Presets of all Programs. SYSTEM cycle must be started after fi...

  • Page 36: Settings

    4.9 SETTINGS DATE TIME Enter the date and time with the +/- sign (or with the keypad). Select one of the following items: Settings Settings Language Date Time Proofing International International Date Date 4:35 Clock Clock Food safety Month Food Safety ......

  • Page 37: Switching Off In Case Of A Fault

    Timer/Temperature dialogs LOAD Oven Confi guration from USB:   Short cooking   MultiTimer cooking 1) Insert the USB key.   Eco-delta cooking 2) Access the Settings menu Opzioni 3) Open the drawer and select the symbol FSC Show F value during cooking Ask for FSC risk set on start (upload from USB)

  • Page 38: Cleaning And Maintenance

    Do not use detergent or rinse aid powder dissolved in water or 6. CLEANING AND MAINTENANCE in gel form and containing chlorine. ATTENTION: The warranty does not cover damage caused by the use of deter- • Have the appliance fully checked periodically (at least once a year).

  • Page 39: Steam Generator Periodical Maintenance

    6.1.3 METHOD WITH CHEMICAL DESCALER water, rinsing with plenty of water and drying thoroughly. • Do not clean the stainless steel with steel wool, brushes or Descaling with chemical products must be carried out according scrapers in common steel, as they could deposit ferrous particles to the supplier's instructions (the detergent supplier fi...

  • Page 40: Replacing Consumable Components

    6.2 REPLACING CONSUMABLE COMPONENTS 6.3 PARTICULAR CLEANING Replacing the oven compartment lamp (Fig. 3) Discharge system cleaning and effi ciency check To replace the oven compartment lamp, if burnt out, proceed as Periodically clean the drain pipe, checking for any obstructions follows: involving the draining of water.
