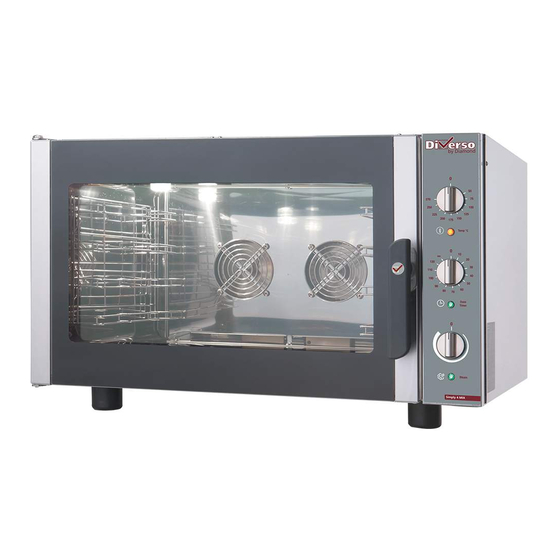

- Page 1 11/2018 Mod: WR-FCV4-DE Production code: NB-SP-004E 00 DIV...
- Page 2 EN CONVECTION OVENS INSTRUCTIONS FOR THE INSTALLATION, USE AND MAINTENANCE GUP-304EB GUP-404EB GUP-104EB GUP-604EB GUP-004EB GUP-106EB GUP-606EB GUP-006EB GUP-110EB GUP-610EB GUP-010EB 2200748 FMLD423 E104-UPE NB-SP-004E 2200750 FMLD443 E106-UPE NB-SP-006E 2200752 FMLD461 E110-UPE NB-SP-010E FMLD661 E604-UPE FMLD1061 E606-UPE E610-UPE...
-
Page 3: Installation
INDEX Dimensions Foreword Declaration of Conformity European Directive ROHS 2012/19/UE Transport of the oven and packaging removal Informative labels INSTALLATION Oven positioning Electrical connection Technical data for electrical connection Hydraulic connection water inlet Spare parts replacing Checking the functions USE AND MAINTENANCE Description of the control panel components Starting the oven... - Page 4 4 x 2/3 GN - 4 x 460x340 Dimensioni Capacità Distanza teglie Peso a vuoto Dimensions Capacity Trays distance Empty weight Abmessungen Kapazität Einschubabstand Leergewicht Dimensions Capacité Ecartement grilles Poids à vide Dimensiones Capacidad Distancia bandejas Peso en vacío Afmetingen Capaciteit Afstand dienbladen Leeggewicht...
- Page 5 4 x 1/1 GN - 4 x 60x40 - 4 x 1/1 GN 60x40 Dimensioni Capacità Distanza teglie Peso a vuoto Dimensions Capacity Trays distance Empty weight Abmessungen Kapazität Einschubabstand Leergewicht Dimensions Capacité Ecartement grilles Poids à vide Dimensiones Capacidad Distancia bandejas Peso en vacío Afmetingen...
- Page 6 6 x 1/1 GN - 6 x 60x40 - 6 x 1/1 GN 60x40 Dimensioni Capacità Distanza teglie Peso a vuoto Dimensions Capacity Trays distance Empty weight Abmessungen Kapazität Einschubabstand Leergewicht Dimensions Capacité Ecartement grilles Poids à vide Dimensiones Capacidad Distancia bandejas Peso en vacío Afmetingen...
- Page 7 10 x 1/1 GN - 10 x 60x40 - 10 x 1/1 GN 60x40 Dimensioni Capacità Distanza teglie Peso a vuoto Dimensions Capacity Trays distance Empty weight Abmessungen Kapazität Einschubabstand Leergewicht Dimensions Capacité Ecartement grilles Poids à vide Dimensiones Capacidad Distancia bandejas Peso en vacío Afmetingen...
-
Page 8: Declaration Of Conformity
FOREWORD The contents of this manual are generic and not all the functions described may be available on your product. The manufacturer declines all responsibility for possible inaccuracies contained in this pamphlet, due to printing or copy errors. We reserve the right to make on our own products those changes to be considered necessary or useful, without jeopardizing the essential characteristics. -
Page 9: Informative Labels
1.4 INFORMATIVE LABELS On each oven there are applied some metal labels, that give important info concerning characteristics of the oven, electric and plumbing connections and eventually the drain connection. On the right hand side panel there is the label A. The info contained on this label are: •... -
Page 10: Technical Data For Electrical Connection
1.7 TECHNICAL DATA FOR ELECTRICAL CONNECTION Power loading no. and motor Heating Absorbed Feed cable Model and voltage power power current section 4 x 2/3 GN 3.3 kW 220-240 V 1N ~ 1 x 240 W 3.0 kW 14.0 A cable included 50/60 Hz 4 x 460x340... -
Page 11: Hydraulic Connection - Water Inlet
2.5 HYDRAULIC CONNECTION – WATER INLET If the humidification system is installed, the ovens have a water inlet coupling at the back. Always install an on-off valve between the appliance and the water mains, making sure it is easy to operate. We also suggest installing a cartridge filter on the water inlet pipe. - Page 12 USE AND MAINTENANCE INSTRUCTIONS FOR A SAFE USE OF THE OVEN • Ensure the oven is on a stable position and safety devices installed upstream are efficient. • Always use adequate protection gloves to introduce or pull out the trays. •...
- Page 13 4.5B COOKING TIME Press button (F) on the side to change cooking time. Display C shows ---. Press the button on the side to increase the value on the display. Press the button on the side to reduce the value on the display. For an unlimited functioning of the oven (infinite time), press the button on the side, when the display shows value 0.
- Page 14 4.5F MANUAL HUMIDIFICATION Manual humidification can be activated while cooking by pressing button H. The valve that injects steam in the cooking chamber is activated only when button H is pressed. It is possible to change the parameters during the cooking in order to adapt it to the food.
-
Page 15: Maintenance
9.0 MAINTENANCE All external stainless steel parts should be: 1 - cleaned with clear, soapy water; 2 - rinsed with water; 3- dried thoroughly. It is absolutely forbidden to use scrapers, metal soap pads and other common steel tools as they could besides scratching the surface, deposit iron particles that, oxidizing would cause rust to form.
