Sennheiser ASP 2 Specifications

Wireless Microphones 2
Antennasplitter
Description

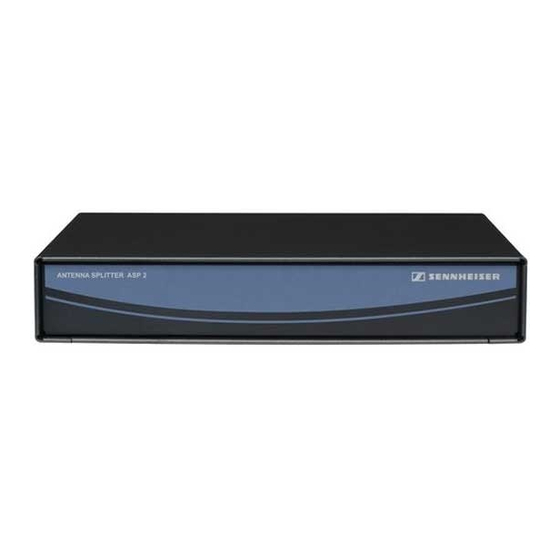

Passive 2 x 1 : 4 antenna splitter. The ASP 2 allows a single pair of
antennas to feed up to four EM 500 G2, EM 300 G2 or EM 100 G2
receivers. Incorporates DC distribution for distributing the DC supply
voltage of the NT 1 power supply unit to up to four receivers.
By combining two ASP 2, an 8-channel system can be operated with
only two antennas.
Delivery includes
1 ASP 2 antenna splitter
Operating instructions
Recommended Accessories
Mains unit for ASP 2 (EU
version)
Mains unit for ASP 2 (UK
version)
Mains unit for ASP 2 (120V
version)
Passive Antenne
Omni-directional antenna
Active directional antenna
Rack Mount Kit
NT 1 Cat. No.04786
NT 1-UK Cat. No.04787
NT 1-120 Cat. No.04788
A 2003-UHF Cat. No.03658
A 1031-U Cat. No.04645
A 12AD-UHF Cat. No.04156
GA 2 Cat. No.09823
Features
Easy installation
Technical data
RF frequency range
Attenuation
Dimensions
Weight
Operating voltage (stand
alone)
Publ.: 16.01.2004
ASP 2
Cat. No. 09824
500 ..... 870 MHz
10 dB (IN B/OUT B), 14
dB (IN A/OUT A)
212 x 145 x 38 mm
700 g
10-16 V DC
