- Page 1 Antenna Splitter 1:4 ASP 2 Instructions for use...

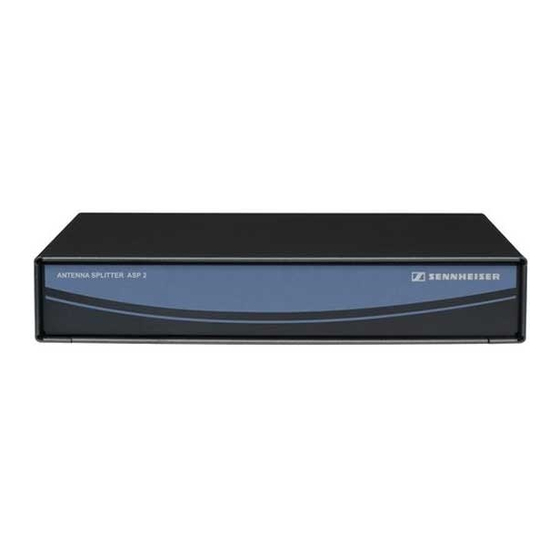

- Page 2 Brief description The ASP 2 passive RF antenna splitter has been designed for routing antenna signals to several receivers in a multi-channel system, i.e. up to four diversity receivers are supplied with the signals of only two antennas. The antenna splitter incorpora- tes DC distribution for powering up to four receivers in addi- tion to two antenna boosters via a single mains unit.
- Page 3 Safety instructions Caution! Never open the unit! If units are opened by you in breach of this instruction, the warranty becomes null and void. Attention! Make sure that the air vents of the unit are not covered or blo- cked! Keep the unit away from central heating radiators and electric heaters! Caution! Set up the unit on an even surface or mount it into a rack! Lay...
- Page 4 Operating controls DC input (DC IN) for mains unit Cable grip for power supply DC cable Four DC outputs (DC OUT) for powering up to four receivers Antenna input B (IN B, DC-FEED 12 V), BNC socket Four antenna outputs (OUT B), B leg Four antenna outputs (OUT A), A leg RF output A (link to antenna input B to make...
- Page 5 Putting the unit into operation The below connection diagram shows the connections for a 4-channel diversity system. Setting up the unit The unit is suitable for use as table top or can be mounted into a rack. For mounting the unit into a 19" rack, use the GA 2 rack adapter (optional accessory).
- Page 6 Connecting the receivers You can connect up to four rack-mount receivers (e.g. EM 100 G2, EM 300 G2 or EM 500 G2) to the ASP 2. The split- ter incorporates DC distribution for powering the receivers. Pass the cables coming from the antenna spitter’s DC out-...
- Page 7 The NT 1 mains unit can power up to four receivers. The DC power is also available at the antenna inputs for powering two optional antenna boosters. ASP 2 Pass the cable through the cable grip Insert the DC connector on the power supply cable into the...
- Page 8 Disturbed reception or no reception If problems occur that are not listed above or if the problems cannot be solved with the proposed solutions, please contact your local Sennheiser agent for assistance. Possible cause Receivers are not powered Check the connections of...
-
Page 9: Specifications
Specifications Antenna splitter Frequency range Distribution attenuation Dimensions Weight Voltage range Accessories NT 1 Mains unit for powering up to four receivers and two antenna boosters, European version NT 1-120 Mains unit for powering up to four receivers and two antenna boosters, 120 V version NT 1-UK Mains unit for powering up to four receivers and two antenna... - Page 10 Application example Two ASP 2 antenna splitters can be linked to make a 1-to-8 diversity splitter. Connections for an 8-channel system Linking two 4-channel systems...
- Page 11 ENGLISH The guarantee period for this Sennheiser product is 24 months from the date of purchase. Excluded are accessory items, rechargeable or disposable batteries that are delivered with the product; due to their characteristics these products have a shorter service life that is principally dependent on the individual frequency of use.
- Page 12 Konformitätserklärung Sennheiser electronic GmbH & Co. KG erklären, dass die- ses Gerät die anwendbaren CE-Normen und Vorschriften erfüllt. Approval Sennheiser electronic GmbH & Co. KG declare that this device is in compliance with the applicable CE standards and regulations. Certification Sennheiser electronic GmbH &...
- Page 13 Sennheiser electronic GmbH & Co. KG 30900 Wedemark, Germany Phone: +49 (5130) 600 0 Fax: +49 (5130) 600 300 www.sennheiser.com Printed in Germany Publ. 12/03 90686/A01...
