Sennheiser AC 3000 Product Sheet

3000 Series

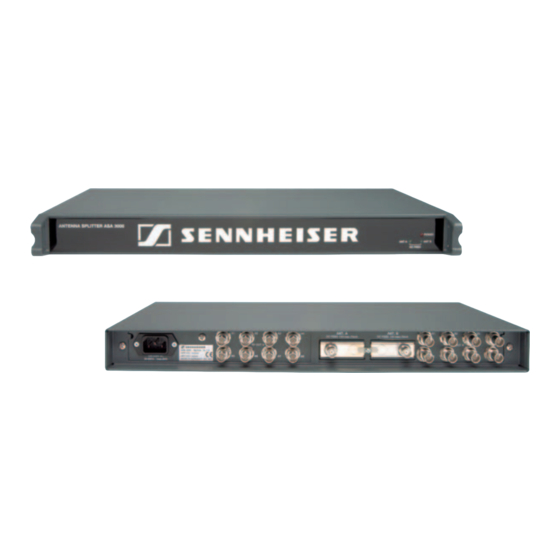

The ASA 3000 is an active
antenna splitter for multi-
channel wireless microphone
systems with up to 16 chanels
(8 x EM 3031, 8 x 3032 or
8 x EM 3532). The ASA 3000 is
suitable for the entire UHF
range but can optionally be
equipped with selective input
filter modules to narrow the
input frequency range.
Technical Data
Antenna splitter
Frequency range
Distribution attenuation
Nominal impedance
Connectors
DC supply to power
head amplifiers short circuit-proof
Power supply 100 – 240 V, 50 – 60 Hz
Dimensions
ASA 3000
Active splitter
Broadband input modules
Optional selective input modules
DC power supplied to antenna head amplifiers
Robust 19'' housing in 3000 Series design
Delivery includes: ASA 3000, rack mounting kit, telescopic antennas,
mains cable
Accessories
2 x 1:8 active Selective input module
470 – 870 Hz Active directional antenna
0 dB Passive omni-directional
50 antenna
BNC sockets Ground plane antenna
12 V, 70 mA, Co-axial antenna cable, RG 58
19'', 1 U Passive directional antenna
Product
News
Cat. No. 09407
Cat. No. 09408
Cat. No. 09423
IM 3000 Cat. No. 05241
A 12 AD UHF Cat. No. 04156
A 1031-U Cat. No. 04645
GZA 1036-9 Cat. No. 02336
GZL 1019 A1 (1 m) Cat. No. 02324
GZL 1019 A5 (5 m) Cat. No. 02325
GZL 1019 A10 (10 m) Cat. No. 02326
A 2003-UHF Cat. No. 03658
