Sennheiser ASA 3000 Instructions For Use Manual

Sennheiser ASA 3000 Instructions For Use Manual

Active antenna splitter 2 x 1:8
Hide thumbs Also See for ASA 3000:

Advertisement

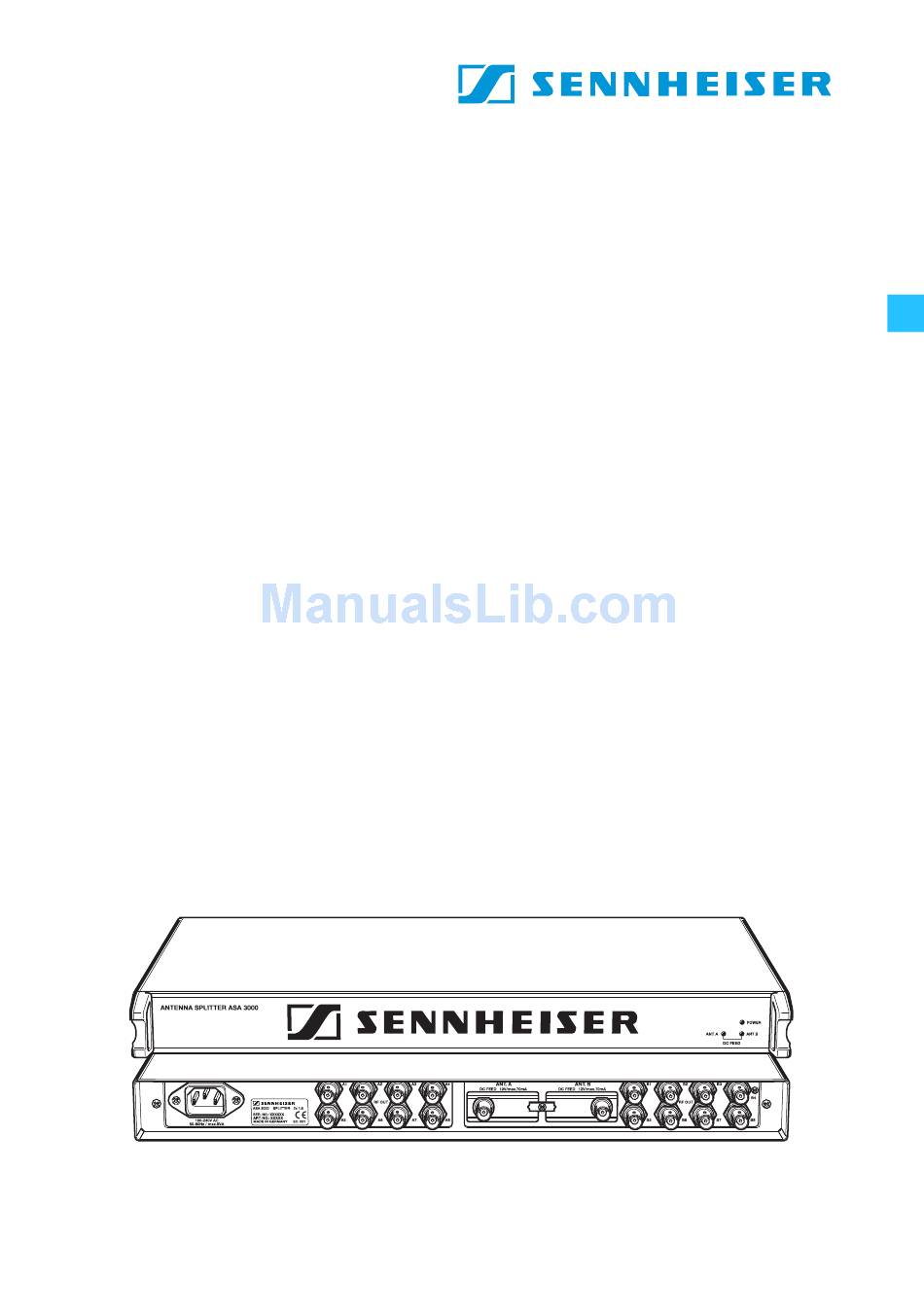

Active Antenna Splitter 2 x 1:8
ASA 3000
Instructions for use
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the ASA 3000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sennheiser ASA 3000

  • Page 1 Active Antenna Splitter 2 x 1:8 ASA 3000 Instructions for use...
  • Page 2: Table Of Contents

    Specifications ..............11 Manufacturer declarations ......... 12 Brief description With the 2 x 1:8 active antenna splitter, up to eight recei- vers (EM 3031) or twin receivers (EM 3032, EM 3532) can be operated with only one pair of diversity antennas.
  • Page 3: Safety Information

    Make sure that the air vents of the unit are not covered or blocked. Keep the unit away from central heating radiators and electric heaters! Set up the unit on an even surface or mount it into a rack! Lay the cables in such a way that no-one can stumble over them! Keep liquids and small parts which conduct electricity away from the unit! Use a damp cloth for cleaning the unit.
  • Page 4: Operating Elements

    POWER (red) Threaded holes for rack-mounting BNC sockets for antenna outputs, diversity section “B”, Exchangeable wideband input module with BNC antenna input for diversity sec- tion “B” ANT. B Catch for input modules Exchangeable wideband input module with BNC antenna input for diversity sec- tion “A”...
  • Page 5: Connection Diagram

    Connection diagram The below connection diagram shows the connections for an 8- or 16-channel system. ANT B ANT A Antenna booster Antenna booster e.g. AB 1036 e.g. AB 1036 Mains Input A Input B ASA 3000 1 : 8 1 : 8...
  • Page 6 Putting the unit into operation Setting up the unit The unit is suitable for use as table top or can be mounted into a rack. Fix the unit to a 19" rack by using the supplied rack- mounting kit. To set up the unit on an even, horizontal surface, fix the four self-adhesive plastic feet to the base of the unit.
  • Page 7 If you use passive antennas only, the DC supply voltage can be turned off. To do so, remove the two input modu- les (see “Exchanging the input modules” on page 7) and set the two switches DC-Feed ANT A DC-Feed ANT B to position “OFF”.
  • Page 8 When using the wideband input modules: Use an active antenna (e.g. A 12 AD antenna) or an antenna with antenna booster (e.g. GZA 1036 antenna with AB 1036 antenna booster).
  • Page 9: Trouble Shooting

    6). The two LEDs DC FEED ANT A DC FEED ANT B light up green. If the LEDs do not light up even though the two switches DC-Feed ANT A DC-Feed ANT B are set to position...
  • Page 10: Accessories

    Accessories The following accessories are available from Sennheiser: Cat. No. A 2003 UHF Active antenna 03658 A 12 AD UHF Active antenna 04645 GZA 1036 Passive antenna 02243 AB 1036 Antenna booster 03598 IM 3000 Selective input module 05241 GZL 1019 A1...
  • Page 11: Specifications

    Specifications RF characteristics / active diversity antenna splitter Antenna splitter: 2 x 1:8, active Frequency range: 470–870 MHz Distribution attenuation: +3/-1 dB Nominal impedance 50 Ω of the inputs/outputs: Connections inputs A/B: BNC sockets Connections outputs A1-A8/B1-B8: BNC sokkets Booster supply 12 V, 200 mA max.
  • Page 12: Manufacturer Declarations

    The guarantee is void if the product is mani- pulated by non-authorised persons or repair stations. In the case of a claim under the terms of this guarantee, send the device, inclu- ding acces-sories and sales receipt, to the responsible service partner. To mini- mise the risk of transport damage, we recommend that the original packaging is used.
  • Page 13 Sennheiser electronic GmbH & Co. KG 30900 Wedemark, Germany www.sennheiser.com Printed in Germany Publ. 05/07 093248 / A03...
