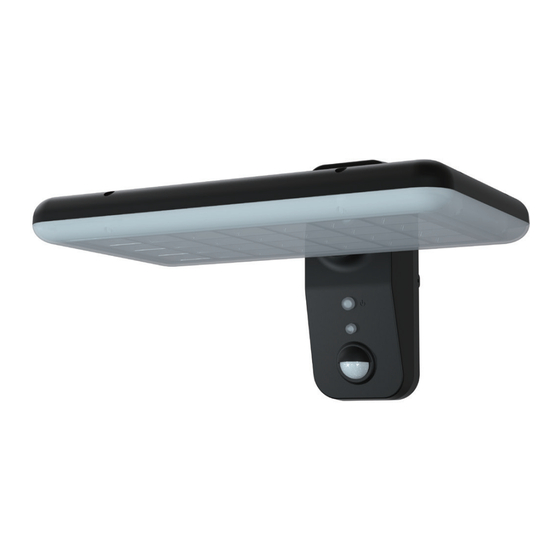

V-TAC VT-414 Instruction Manual

Led solar yard light

Download this manual

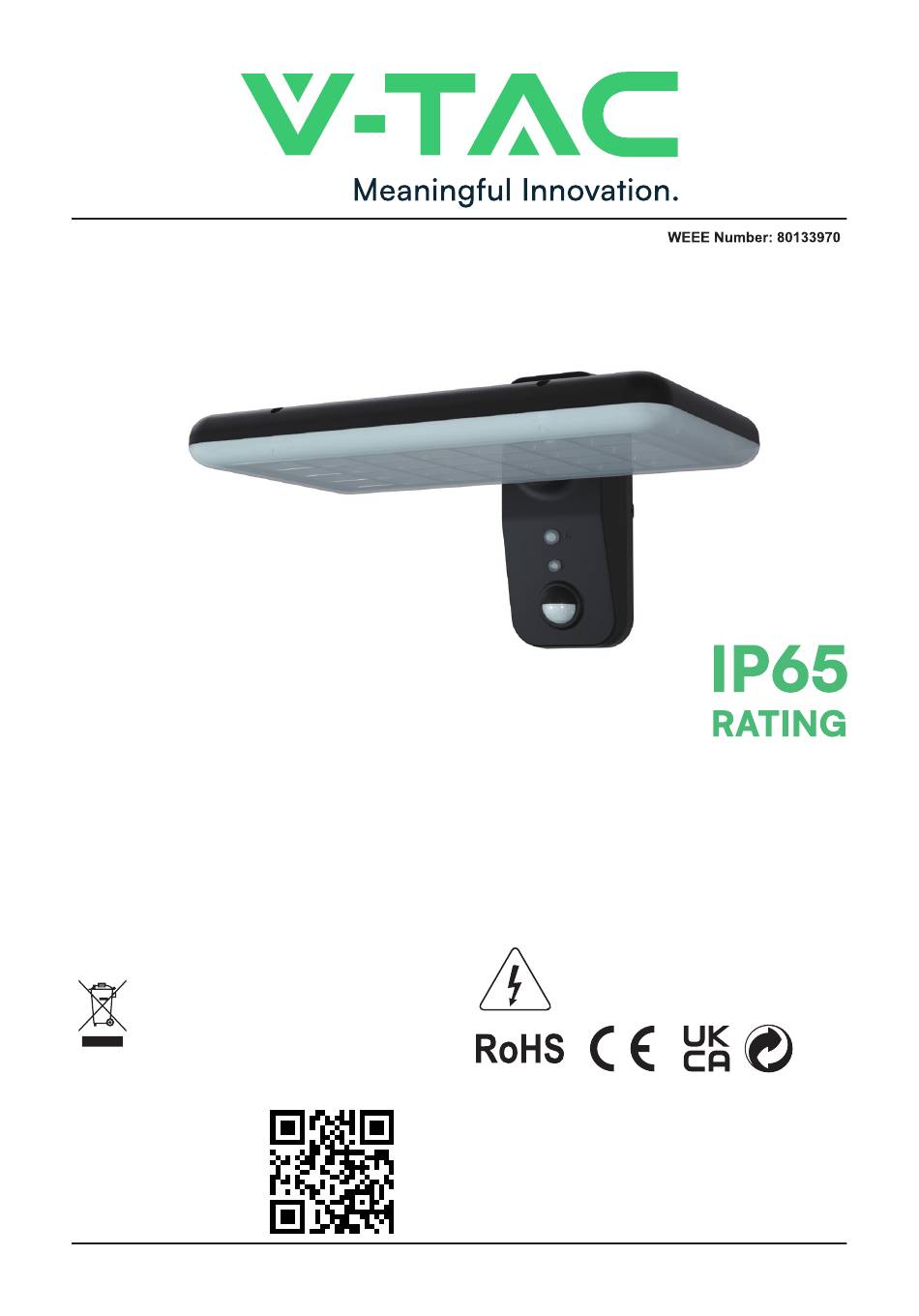

INSTRUCTION MANUAL

INTRODUCTION

Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please

read these instructions carefully before starting the installation and keep this manual handy

for future reference. If you have any another query, please contact our dealer or local ven-

dor from whom you have purchased the product. They are trained and ready to serve you at

the best.

This marking indicates that this product

should not be disposed of with other

household wastes.

In case of any query/issue with the product, please reach out to us at: support@v-tac.eu

For More products range, inquiry please contact our distributor or nearest dealers.

V-TAC EUROPE LTD. Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B

LED SOLAR YARD LIGHT

MULTI-LANGUAGE MANUAL QR CODE

Please scan the QR code to access the

manual in multiple languages.

Caution, risk of electric shock.

Need help?

Do you have a question about the VT-414 and is the answer not in the manual?

Page 1 LED SOLAR YARD LIGHT INTRODUCTION Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before starting the installation and keep this manual handy for future reference. If you have any another query, please contact our dealer or local ven- dor from whom you have purchased the product.
Page 2 TECHNICAL DATA MODEL VT-414 10315,10316 LUMENS 2000 LM OUTPUT POWER 15 W EQUIVALENT WATT 150 W LEDs SMD 2835x112 pcs OPTIONAL CCT BATTERY PACK 32700, 3.2V, 6000mAh, 19.2Wh MONO SOLAR PANEL DC 4.5V, 6W PIR SENSOR 120° / 6-8 Meters BEAM ANGLE 240°...
Page 3 INSTALLATION Mark the positions of the 4 holes on the wall according to the base. Drill 4 holes with a diameter of Ф6mm and a depth of 60mm. Insert the plastic expansion plugs into the holes. Lock the base on the wall with screws. Slide the lamp onto the base.

1031510316
