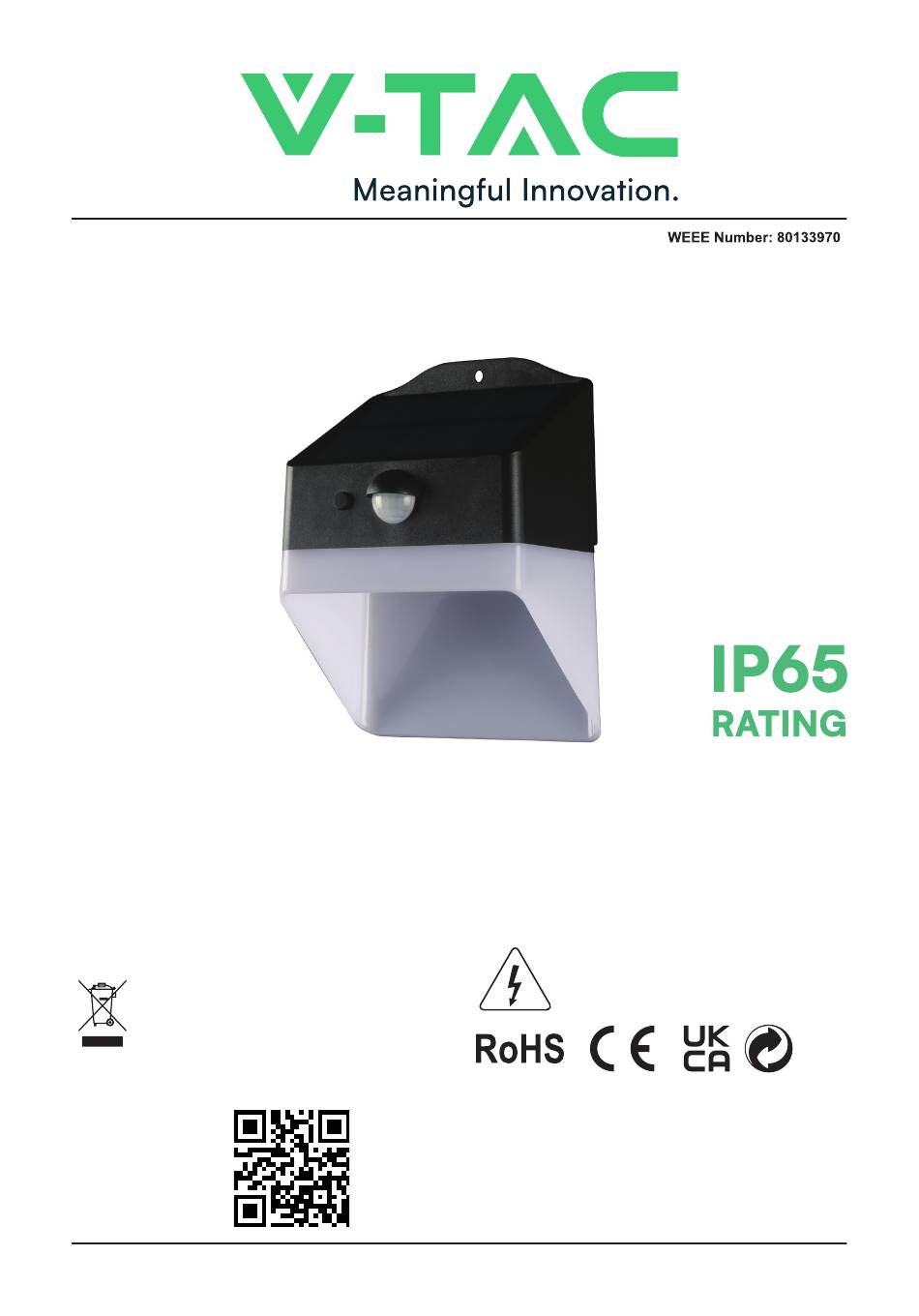

V-TAC VT-422 Instruction Manual

Led solar wall light

INSTRUCTION MANUAL

INTRODUCTION

Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please

read these instructions carefully before starting the installation and keep this manual

handy for future reference. If you have any another query, please contact our dealer or

local vendor from whom you have purchased the product. They are trained and ready to

serve you at the best.

This marking indicates that this product

should not be disposed of with other

household wastes.

In case of any query/issue with the product, please reach out to us at: support@v-tac.eu

For More products range, inquiry please contact our distributor or nearest dealers.

V-TAC EUROPE LTD. Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B

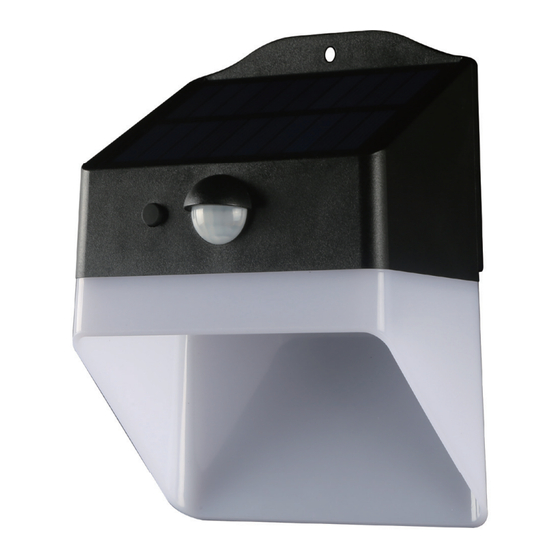

LED SOLAR WALL LIGHT

MULTI-LANGUAGE MANUAL QR CODE

Please scan the QR code to access the

manual in multiple languages.

Caution, risk of electric shock.

Table of Contents

Need help?

Do you have a question about the VT-422 and is the answer not in the manual?

Page 1 LED SOLAR WALL LIGHT INTRODUCTION Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before starting the installation and keep this manual handy for future reference. If you have any another query, please contact our dealer or local vendor from whom you have purchased the product.
Page 2 TECHNICAL DATA MODEL VT-422 10309 LUMENS 200 LM OUTPUT POWER EQUIVALENT WATT 20 W LEDs SMD 2835x10 pcs SOLAR PANEL 18650, 3.7V, 1200mAh, 4.44Wh MONO SOLAR PANEL DC 5.5V, 0.7W BEAM ANGLE 120° *60° PIR SENSOR 120° / 6 Meter...
Page 3 INSTALLATION Installation 1: Wall Mount Drill a hole with a diameter of 6mm and a depth of 50mm. Fix the expansion plug in the hole. Fix the lamp with screw. Installation 2: Hanging Drill a hole with a diameter of 6mm and a depth of 50mm. Fix the expansion plug in the hole.
