EAGLE
Installation Guide
*988-13183-001*
Gimbal mounting
1
Recommended pilot holes
Soft/hard materials Ø 3.8 — 4.8 mm (3/16")
⚠
WARNING:
Always wear appropriate
eyewear, ear protection, and dust mask
when drilling, cutting, or sanding. Remember
to check the reverse side of all surfaces
whenever drilling or cutting.
7 & 9
®
In the box
A
C

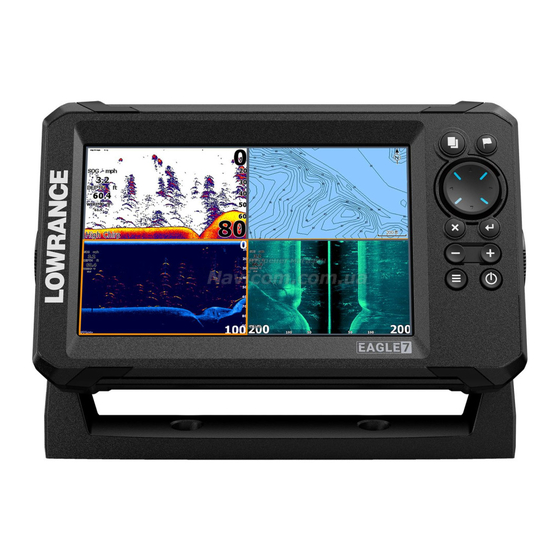

A EAGLE 7 or 9 display unit
B Gimbal kit
C SplitShot or TripleShot skimmer transducer
D Power cable kit
E Cable lock collars
F Documentation pack
2
3
B
E
D
F
Advertisement
Table of Contents
Related Manuals for Lowrance EAGLE 7
Summary of Contents for Lowrance EAGLE 7
- Page 1 In the box EAGLE 7 & 9 ® Installation Guide A EAGLE 7 or 9 display unit B Gimbal kit C SplitShot or TripleShot skimmer transducer D Power cable kit *988-13183-001* E Cable lock collars F Documentation pack Gimbal mounting Recommended pilot holes Soft/hard materials Ø...
- Page 2 Panel mounting ⚠ WARNING: Panel mounting may affect GPS performance. Cable lock collar...
- Page 3 Wiring Note: ¼ Connect either a SplitShot or TripleShot transducer. • Refer to included transducer installation information. • Dimensions EAGLE 7 225.9mm 121.8mm (8.89") (4.80") 24.0mm 226.5mm (8.92") (0.94") 139.8mm 162.8 mm (5.50") (6.41") 69.2mm (2.72") 88.5mm (3.48") EAGLE 9 287.2 mm...
- Page 4 Visit www.navico.com/intellectual-property to review the global trademark rights and accreditations for Navico Group and other entities. • Navico is a trademark of Navico Group. ® • Lowrance is a trademark of Navico Group. ® • EAGLE is a trademark of Navico Group. ®...
