Bose L1 PRO SYSTEMS Repair Manual page 4

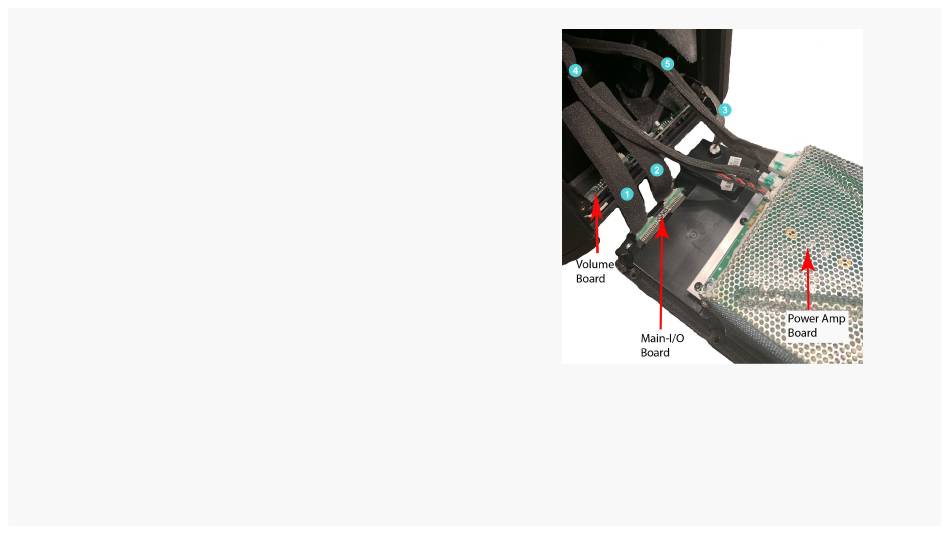

Green adhesive on
Connectors
Connectors on the Main-I/O board and the
Power Amp board have glue on them to ensure
the cable is secure.
.
When removing the cable from the connector,
use a spudger/screwdriver to separate the green
adhesive from the edge of connections.
Re-assembly Note:
RTV may be used if the green adhesive is not
available.
Items 1, 2 & 4, 5 are cables that need to be
secured. Adhesive needs to be added during
reassembly if the cable had been removed from
the connector.
4
