Markant WORKWAYS Assembly Manual

PACKING LIST
Frame
Column
Feet
End pipe
Outer pipe
Conection pipe
Cable clamp
Rubber washer
Hole cap
Control Box / Handset
Control box
Handset
AC cable
Screws
Screw for motor house / Outter pipe, M6x16
Screw for feet, M10x16mm
Tailstock for connection pipe, M10x8mm
Screw for tabletop, Ø5x20mm
Screw for handset, Ø4x22mm
TIGHTENING TORQUE
Tailstock
Screw for motor house and outer pipe
Screw for feet and tabletop
Screw for handset
Make sure all screws are tightened, also after a period of use!
REST THE DESK BEFORE USE
Press both up and down buttons at the same time for 3 seconds.
Continue pressing the buttons until both columns are in lowest
position. When finish reset, the control box makes a sound and the
buttons can be released. Now the system is operational.

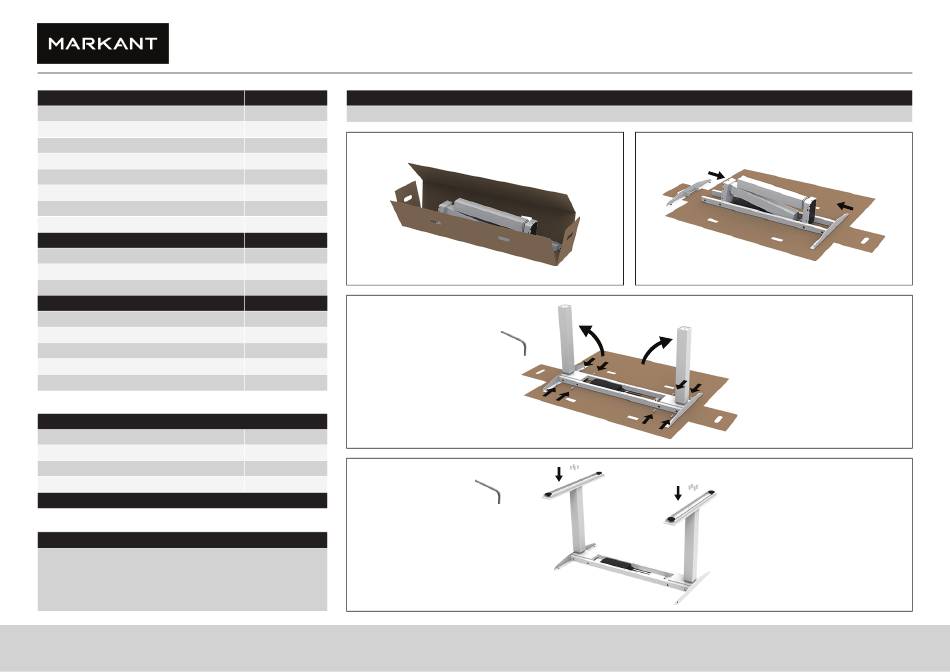

WORKWAYS/MATRIX FS - ASSEMBLY MANUAL
pcs WARNING
2 Carefully arrange all the cables not to be damaged by tabletop screws.
2
Step 1
2
2
2
6
8
8
pcs
1
1
1
pcs Step 3
8
8
8
8
2
Maximum 6Nm
Maximum 10Nm
Step 4
Maximum 10Nm
< 6Nm
Step 2
x8
x8
