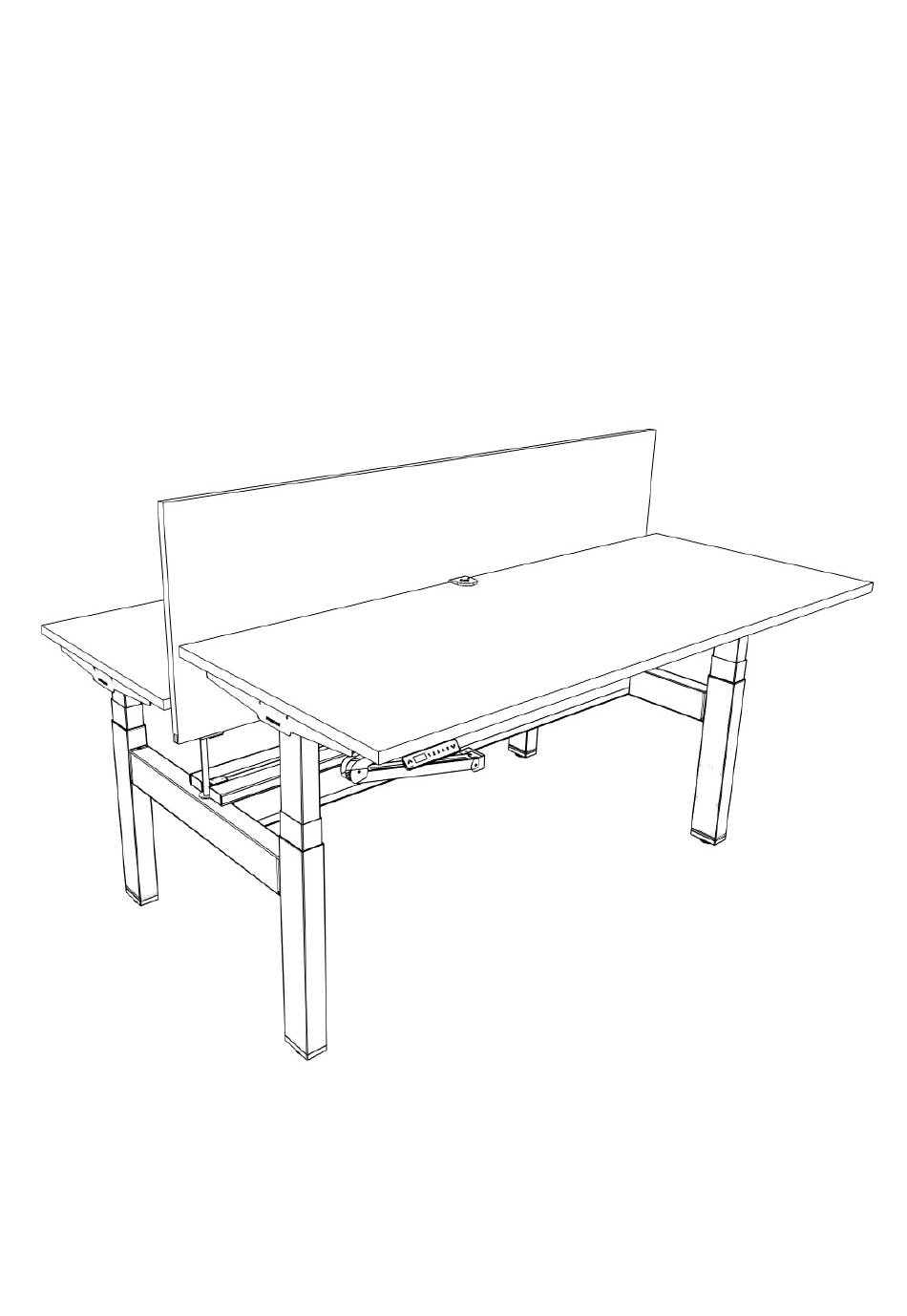

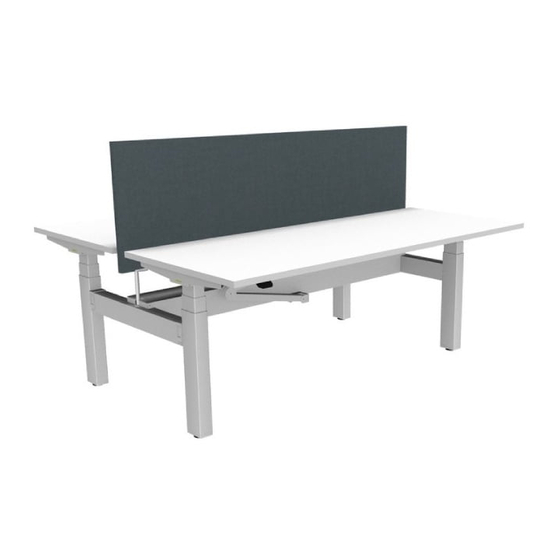

- Page 1 MATRIX PRO INSTALLATION MANUAL CABLE GUTTER & SCREEN...
- Page 2 MATRIX PRO CABLE GUTTER & SCREEN INSTALLATION...
- Page 3 MATRIX PRO CABLE GUTTER & SCREEN INSTALLATION INDEX Chapter Page page 5 - 8 MATRIX PRO CABLE TRAY WITH ELBOW page 9 MATRIX PRO TABLE TOP page10 - 11 MATRIX PRO FRAMELESS SCREEN BRACKET page 12 - 13 MATRIX PRO INTERTRUNK &...
- Page 4 MATRIX PRO CABLE GUTTER & SCREEN INSTALLATION HARDWARE *POWER TOOL, ALLEN KEY & LEVELER ARE NOT INCLUDED...
- Page 5 MATRIX PRO CABLE GUTTER & SCREEN INSTALLATION MATRIX PRO CABLE TRAY WITH ELBOW STEP 1: Matrix Pro combi desk has been assembled according to the size STEP 2: Place the cable tray at the center of the bridge...
- Page 6 MATRIX PRO CABLE GUTTER & SCREEN INSTALLATION *Elbow 'ear' STEP 3: Then slot in the elbow 'ear' into the cable tray's cut out STEP 4: Inside the cable tray, bend the elbow 'ear' outwards or inwards direction to secure it into position...
- Page 7 MATRIX PRO CABLE GUTTER & SCREEN INSTALLATION STEP 5: Do the same for the other side STEP 6: Place the cable tray lid on top of cable tray...
- Page 8 MATRIX PRO CABLE GUTTER & SCREEN INSTALLATION STEP 7: Attach the cable gutter on the upper elbow *Attach cable gutter on upper elbow STEP 8: Do the same for the other side to complete the installation...
- Page 9 MATRIX PRO CABLE GUTTER & SCREEN INSTALLATION MATRIX PRO TABLE TOP *Install the smart holder bracket by sliding and lock the screw with M5 allen key STEP 9: Slide in the table top towards the cable gutter STEP 10: Do the same for the other table top...
- Page 10 MATRIX PRO CABLE GUTTER & SCREEN INSTALLATION MATRIX PRO FRAMELESS SCREEN BRACKET STEP 11: Insert pin bracket into the bottom hole of a frameless screen each for left and right side *Flange STEP 12: Ensure that the flange of the pin bracket is inwards direction and the frameless screen need to place in perpendicular STEP 13: Then insert the frameless screen into the bridge.
- Page 11 MATRIX PRO CABLE GUTTER & SCREEN INSTALLATION STEP 14: Once done, close the cable tray with the lid STEP 15: Tighten the pin bracket with JCBC screw at the bottom to secure its location...
- Page 12 MATRIX PRO CABLE GUTTER & SCREEN INSTALLATION MATRIX PRO INTERTRUNK & INBETWEEN LID (OPTIONAL) STEP 16: The intertrunk tray is placed between two tables STEP 17: Place the lid on top of the tray...
- Page 13 MATRIX PRO CABLE GUTTER & SCREEN INSTALLATION The center percut out hole is used for top umbilical and power pole Alternatively, Inbetween lid is used for cluster without top umbilical or power pole. Place the lid on top of the cable tray...
