Summary of Contents for Markant MAX 3.0

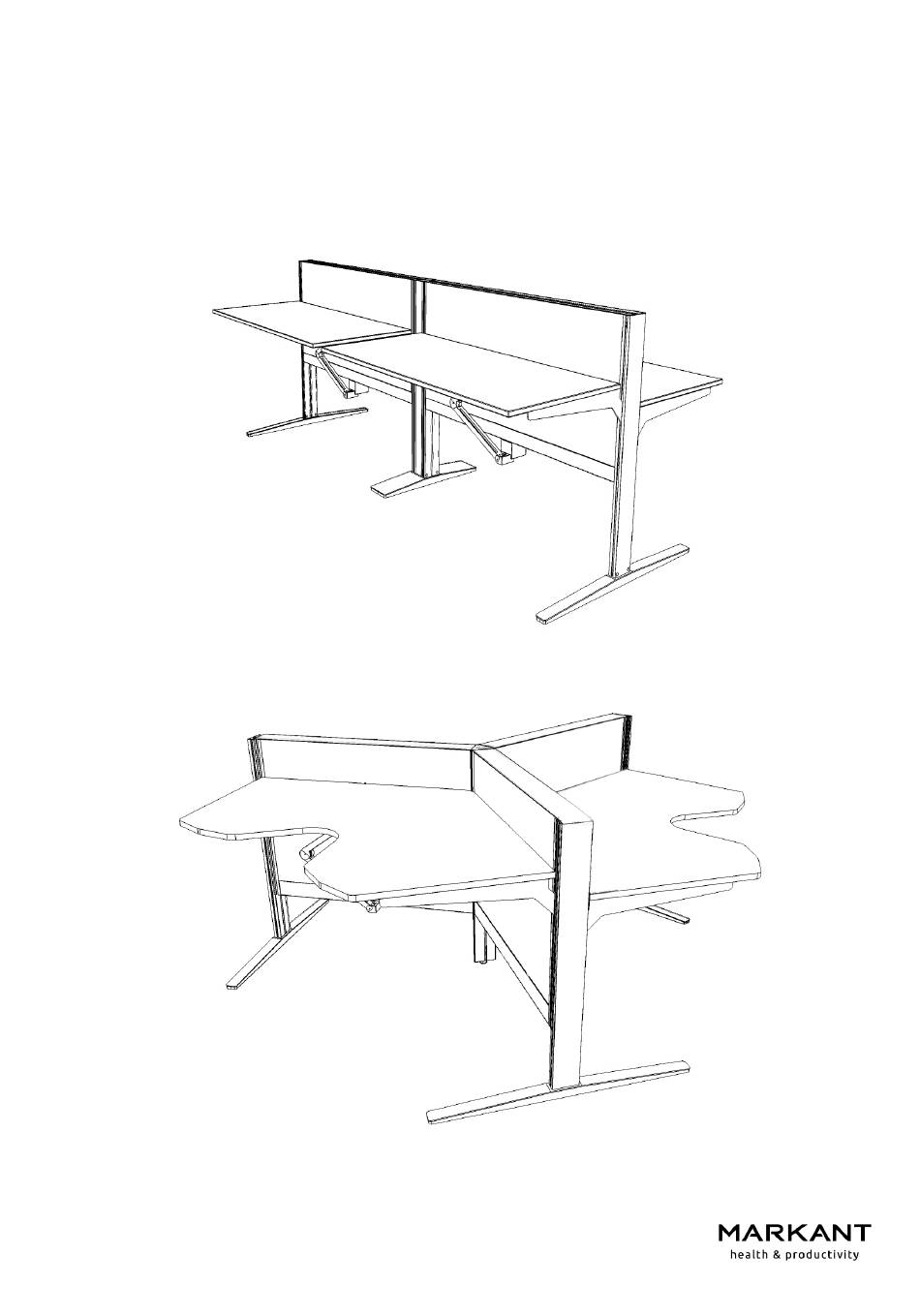

  • Page 1 MAX 3.0 INSTALLATION MAX 3.0 INSTALLATION MANUAL...
  • Page 2 MAX 3.0 INSTALLATION...
  • Page 3: Table Of Contents

    MAX 3.0 INSTALLATION INDEX Chapter Page page 1 HARDWARE page 2 T-RANGE page 3 PANEL RANGE page 4 SCREEN RANGE FRAME page 5-6 Rectangular page 7 Wing ADJUSTABILITY page 8 HI-Tech 2 - E-Drive page 9-11 T-Range page 12-13 Wing...
  • Page 4: Hardware

    MAX 3.0 INSTALLATION MAX 3.0 INSTALLATION HARDWARE *POWER TOOL, ALLEN KEY & LEVELER ARE NOT INCLUDED 120 deg NEED A LEVELER NEED A LEVELER...
  • Page 5: T-Range

    MAX 3.0 INSTALLATION T-RANGE LEGS Allen Key Allen Key 25005010xx 25005005xx 25001035xx 25001040xx Cap Screw Cap Screw OPTION: Max single end foot 25001050xx Max single middle foot 25001055xx...
  • Page 6: Panel Range

    MAX 3.0 INSTALLATION PANEL RANGE Cap Screw...
  • Page 7: Screen Range

    MAX 3.0 INSTALLATION SCREEN RANGE Allen Key Cap Screw...
  • Page 8: Rectangular

    MAX 3.0 INSTALLATION FRAME (RECTANGULAR) T AND PANEL RANGE Max3 system frame 140x72 25007525xx Max3 system frame 160x72 25007535xx 25007545xx Max3 system frame 180x72 25007555xx Max3 system frame 200x72 NEED A LEVELER T AND PANEL RANGE, SCREEN RANGE completed NEED A LEVELER...
  • Page 9 MAX 3.0 INSTALLATION SCREEN RANGE NEED A LEVELER completed *Complete look for MAX SCREEN RANGE frame...
  • Page 10: Wing

    MAX 3.0 INSTALLATION FRAME (WING) 25007515xx 2500515xx NEED A LEVELER *Complete look for MAX SCREEN RANGE frame...
  • Page 11: Hi-Tech

    MAX 3.0 INSTALLATION ADJUSTABILITY (HI-TECH) Prevent compensator rotate backward. Add in the plug from outside. NEED A LEVELER...
  • Page 12: E-Drive

    MAX 3.0 INSTALLATION ADJUSTABILITY (E-DRIVE) T- RANGE Max3 E-drive 140 25005061 Max3 E-drive 160 25005066 Max3 E-drive 180 25005071 Max3 E-drive 200 25005076...
  • Page 13 MAX 3.0 INSTALLATION Tension steel wire rope and slot in top support to aluminium profile Slot in to the groove Push this over BACK BACK...
  • Page 14 MAX 3.0 INSTALLATION CABLE GUTTER & X BEAM INSTALLATION *Slot in X beam. *Add in cable gutter from top.
  • Page 15: Wing

    MAX 3.0 INSTALLATION WING (ONLY E-DRIVE) 25005111...
  • Page 16 MAX 3.0 INSTALLATION Place on top. Slot in. *Add in the fishbone. *Add in the cable gutter.
  • Page 17: Optional

    MAX 3.0 INSTALLATION OPTIONAL (Media Space) Place on top. Slot in. 25005080xx *Add in the fishbone. *Add in the cable gutter.
  • Page 18: Elbow

    MAX 3.0 INSTALLATION ELBOW 25005150xx Step 1 : Adjust 2 glides at outside Step 2 : Adjust 2 glides at middle to touch to ground...
  • Page 19: Controller (Handset) Installer

    MAX 3.0 INSTALLATION CONTROLLER (HANDSET) INSTALLER *extension cable *controller *control box *extension cable *controller *control box...
  • Page 20: Screen

    MAX 3.0 INSTALLATION SCREEN Max3 system cover 140 25006510xxxx Max3 system cover 160 25006520xxxx Max3 system cover 180 25006530xxxx Max3 system cover 200 25006540xxxx Max3 system cover 200 25006550xxxx *magnet cover stick to the system 25003120y screw outside panel stick the panel...
  • Page 21 MAX 3.0 INSTALLATION MOUNTING SCREEN FOR SCREEN-RANGE 25006570xx 25006560xx 25005020xx *slide in 250004xx...
  • Page 22: Rectangular

    MAX 3.0 INSTALLATION TABLE TOP (RECTANGULAR) JCBC Screw JCBC Screw Max3 lid for system frame 140 25005031xx Desktop 140x75 39601215y Max3 lid for system frame 160 25005036xx Desktop 160x75 39601216y Max3 lid for system frame 180 25005041xx Desktop 180x75 39601217y...
  • Page 23: Top Lid

    MAX 3.0 INSTALLATION TOP LID (RECTANGULAR) TOP LID (WING)
  • Page 24: Accesories (Monitor Arm Installation)

    MAX 3.0 INSTALLATION ACCESORIES (MONITOR ARM INSTALLATION) STEP 1: Raise table top to highest position. STEP 2: Remove the knock out hole. STEP 3: Install in the monitor arm. STEP 4: Tighten from underneath.
  • Page 25: Cabling (Media Hub Installation)

    MAX 3.0 INSTALLATION ACCESORIES (MEDIA HUB INSTALLATION) STEP 1: Raise table top to highest position. STEP 2: Install in the Media Hub. STEP 3: Tighten the screw from top of the media hub.
  • Page 26 MAX 3.0 INSTALLATION SETTING Memory 1,2,3,4 Display Up Down Store memory Handset 120cm (H) = 68 - 128 cm Start up - Turn on the main power supply before Press and hold the up button until the highest position 128 is reached (show in display).
  • Page 27 MAX 3.0 INSTALLATION Memory 1,2,3,4 P L E A S E R E F E R T O M A R K A N T MOTOR CONNECTOR SET USER MANUAL FOR HEIGHT ADJUSTABLE DESK F O R F U R T H E R H E L P...
