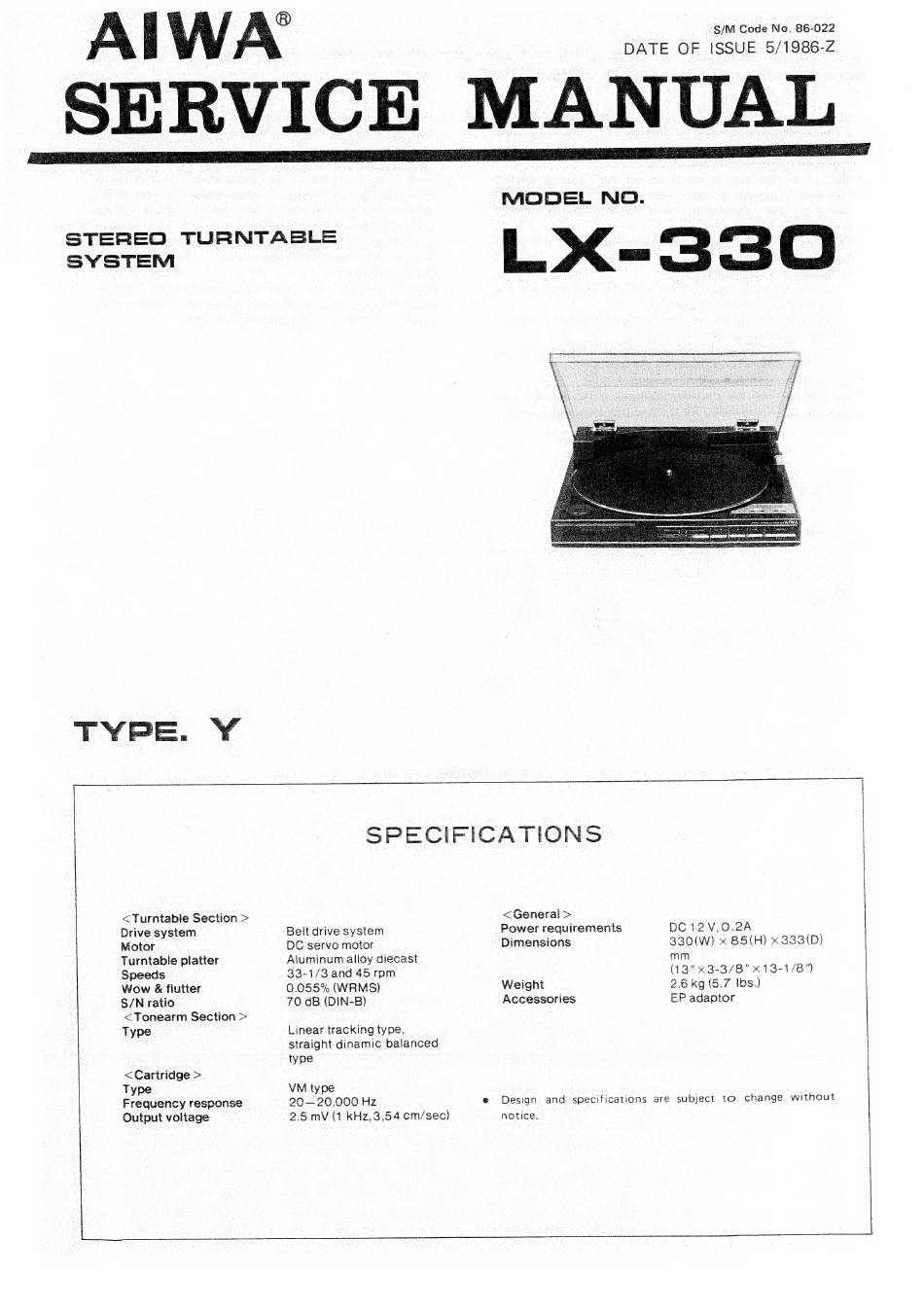

Aiwa LX-330 Service Manual

S/M Code No. 86-022
DATE OF ISSUE 5/1986-2
AIWA
SERVICE
MANUAL
MODEL NO.
STEREO TURNTABLE
SYSTEM
TYPE. Y
——
SPECIFICATIONS
<Turntabie Section >
< General >
Drive system
Belt drive system
Power requirements
DC12V,0.2A
Motor
DC servo motor
Dimensions
330(W) x 85(H) x333(D)
Turntable platter
Aluminum alloy diecast
mm
Speeds
33-1/3 and 45 rpm
;
(13" 3-3/8"
X13-1/8")
Wow & flutter
0.055% (WRMS)
Weight
2.6 kg (5.7 Ibs.)
S/N ratio
70 dB (DIN-B)
Accessories
EP adaptor
<Tonearm Section >
Type Linear tracking type,
straight dinamic balanced
type
<Cartridge >
Type VM type
Frequency response
20—20,000 Hz
Design
and specifications
are subject
to change
without
Output voltage 2.5 mV (1 kHz,3,54 cm/sec) notice.
