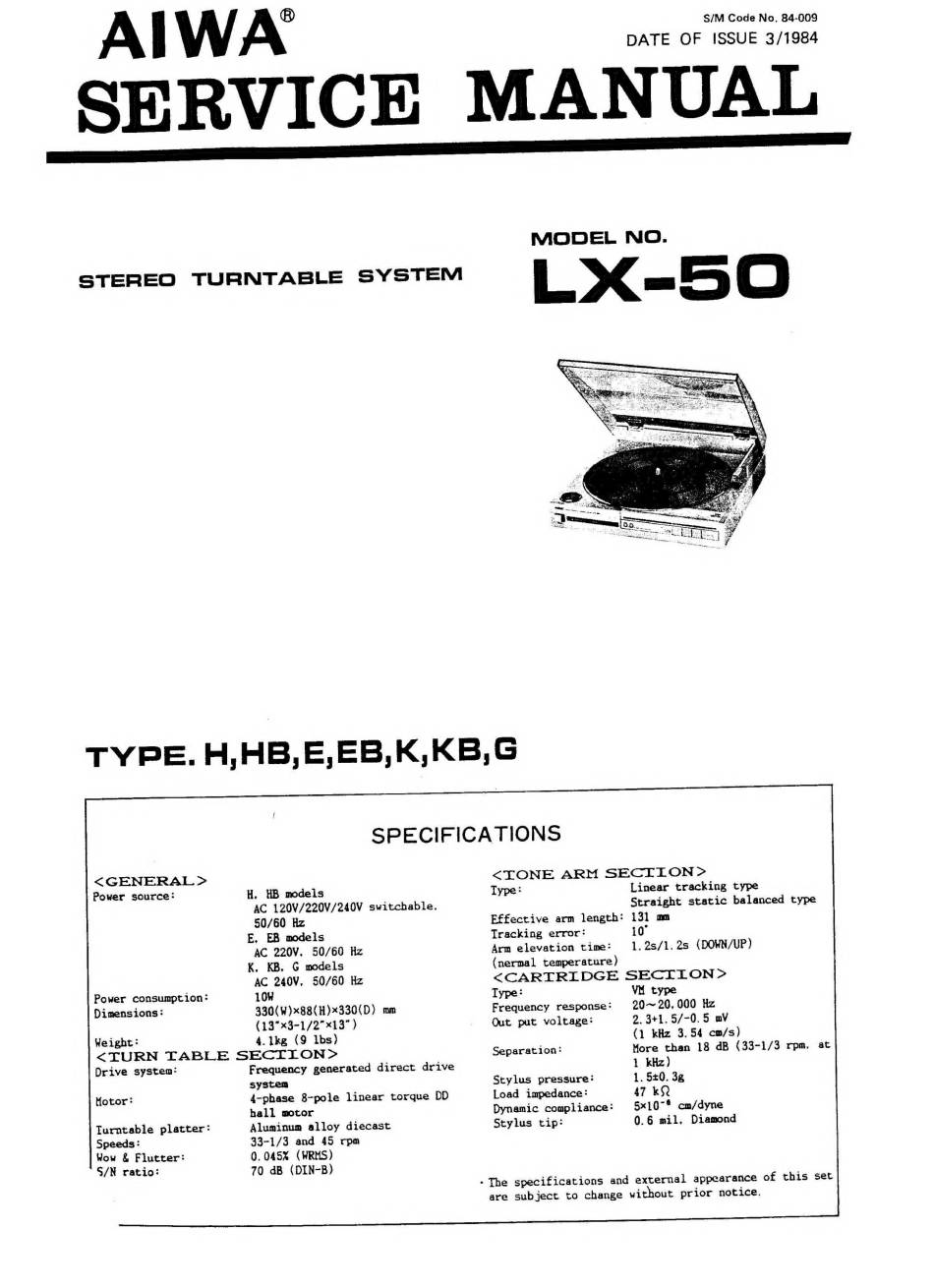

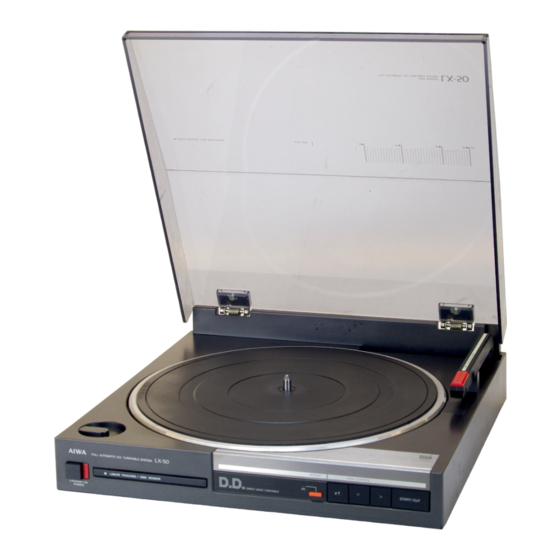

Aiwa LX-50 Service Manual

S/M Code No, 84-009
DATE OF ISSUE 3/1984
<GENERAL >
Power source:
H. HB models
AC 120V/220V/240V switchable.
50/60 Hz
E. EB models
AC 220V. 50/60 Hz
K. KB. G models
AC 240V, 50/60 Hz
Power consumption: 10W
Dimensions:
330(W)x88(H)x330(D)
mm
(13°x3-1/2"*13" )
Weight:
4. 1lkg (9 lbs)
<TURN
TABLE
SECTION>
Drive system:
Frequency genersted direct drive
system
Motor:
4-phase
8-pole linear torque
DD
hall motor
Turntable platter:
Aluminum alloy diecast
Speeds:
33-1/3
and 45 rpm
Wow & Flutter: 0.045% (WRHS)
S/N ratio: 70 dB (DIN-B)
Stylus pressure: 1. 520. 3g
Load impedance: 47 k&Q
