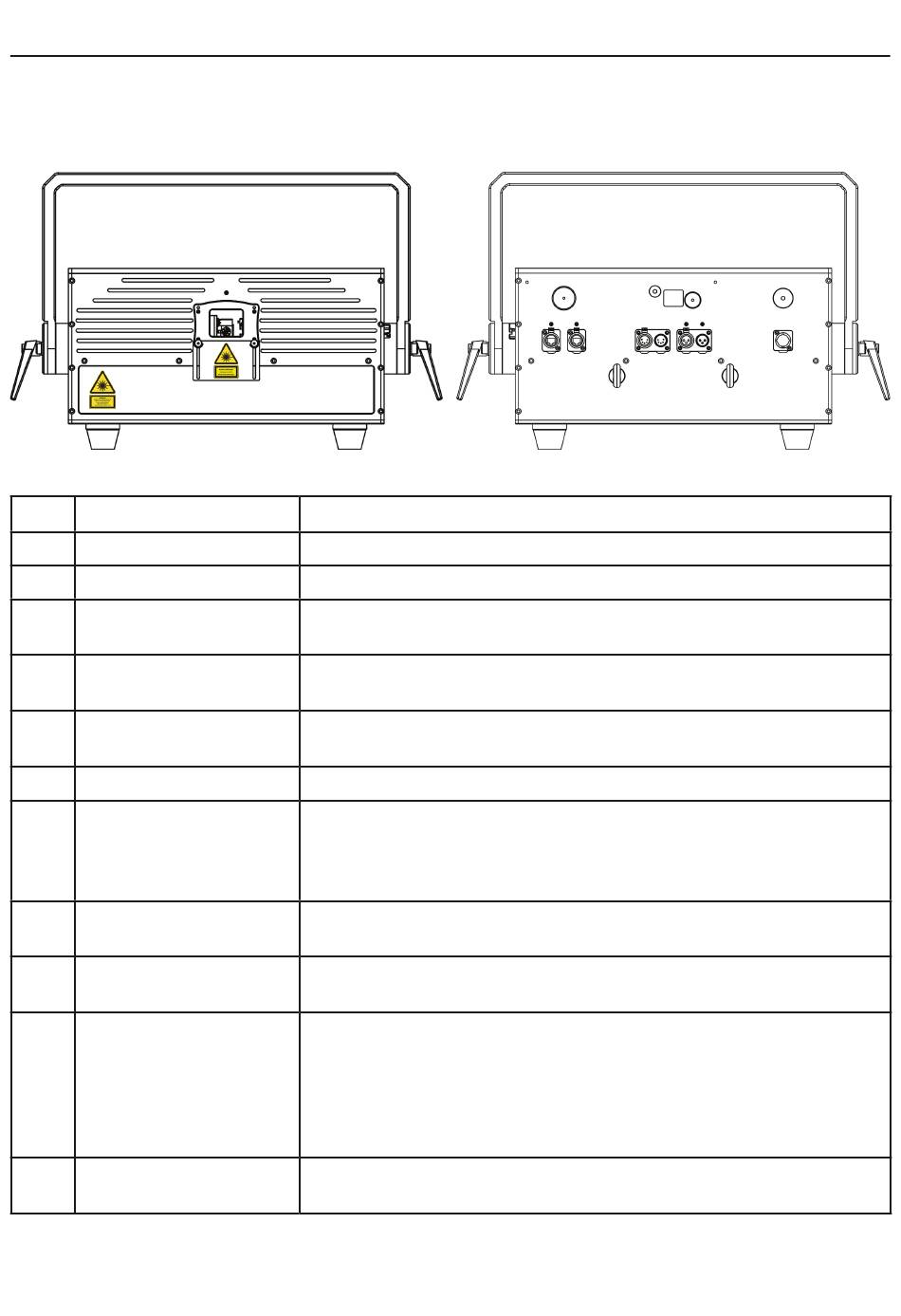

FRONT & REAR PANEL VIEW (ELITE 100 PRO FB4 (IP65))
NO. Name
1. Laser Aperture
2. Aperture Masking Plate
3. Laser Emission
4. 3-Pin Interlock
Key Switch/
5.
Power ON
6. Fuse
7. Power IN
8. DMX IN & OUT
9. Ethernet
10. FB4 Control Interface
11. Safety Eyelet
3
1
2
Laser output, do not look directly into this aperture.
Can be moved up and down when two locklng bolts are loosened.
When this Indicator is lit up the laser system is ready to emit the laser
radlation as soon as It recelves Instructions from control software.
Laser output Is avallable only when the Interlock is connected.
It could be used to connect a laser emergency switch.
Turn the key switch ON to allow laser output.
Current rating 20A, slow acting type.
AC100-240V power input and output sockets. With output
feature you can connect the device to one another using the
input and output sockets. They must be the same fixtures. DO
NOT mix fixtures.
Use these ports to connect DMX control signal or to daisy chain the
DMX signal between multiple laser display systems.
Used to control the laser system via a PC or via ArtNET.
The inbuilt control interface allows you to control the laser via Ethernet
and DMX/ArtNet, but it also handles all the basic settins of the laser
system master size and positions, method of control, colour settings
etc. All of these settings can be accessed through the menu using the
endless rotary knob and once saved, they are stored on included mini
SD card.
Use this together with approriate safety wire to secure the system
against unexpected fall.
