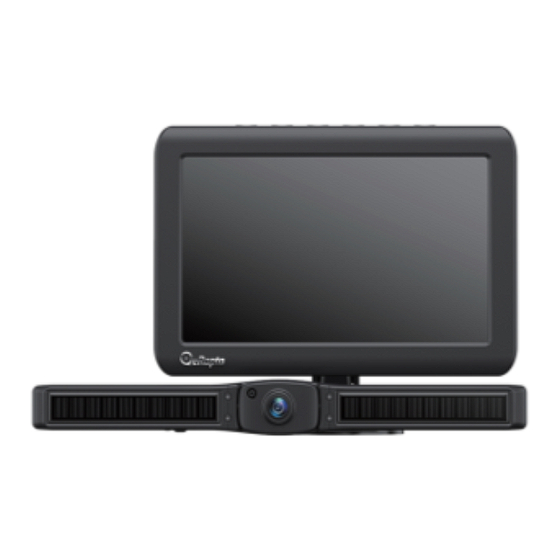

eRapta Solar Wireless 5" Camera System
(ATYZX5)
Installation and Operation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATYZX5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for eRapta ATYZX5

Summary of Contents for eRapta ATYZX5

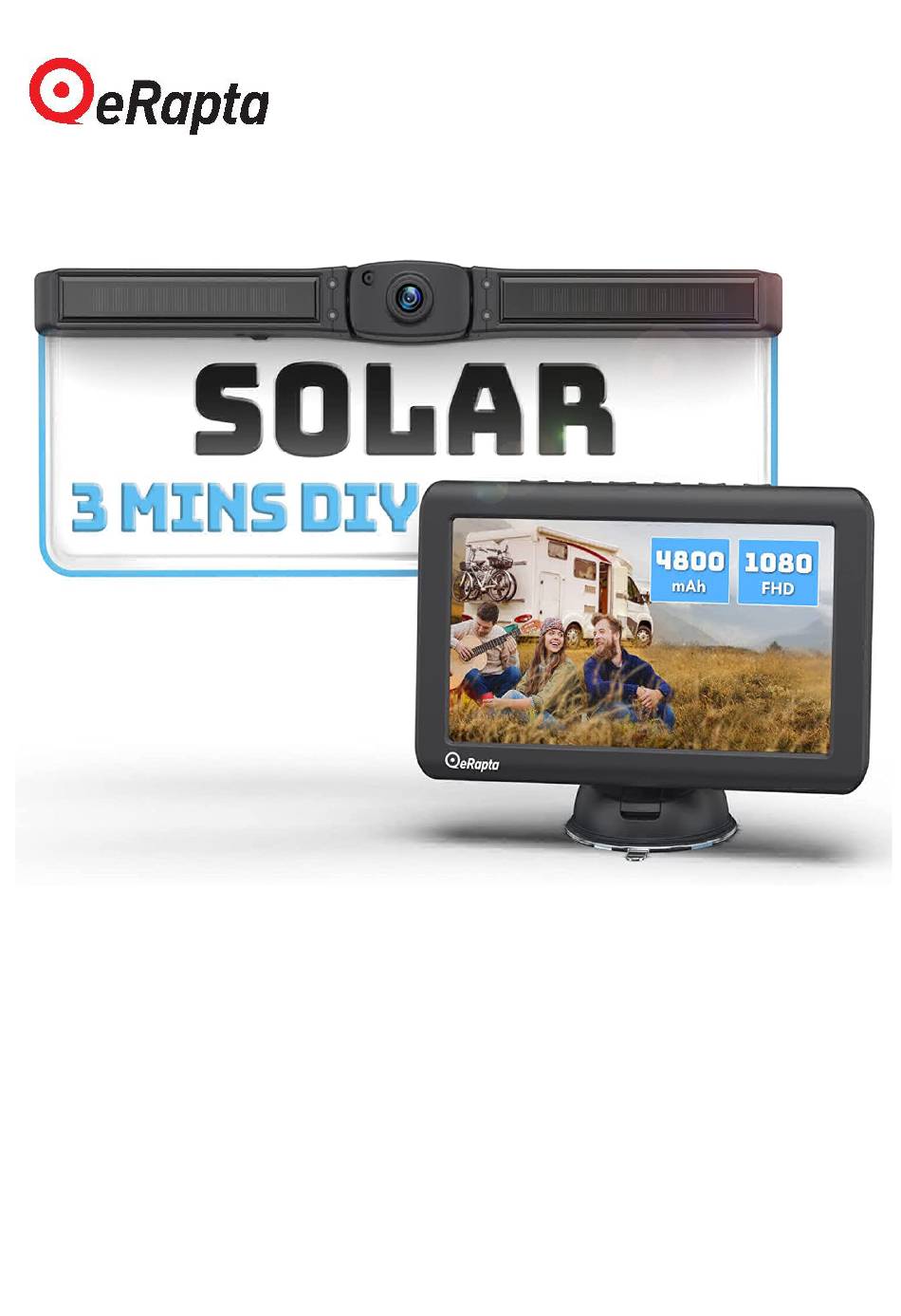

  • Page 1 Solar Wireless 5” Camera System (ATYZX5) Installation and Operation Guide...
  • Page 2 Foreword Thank you for purchasing our product! eRapta has always been committed to providing high-quality products, and bringing a good experience to our customers. It’s our great honor to have your trust! This manual includes product installation guide and system operation instructions. To obtain the best performance, please read the manual carefully before installing, and keep the manual properly.

  • Page 3: Table Of Contents

    Contents 1. Package List..............2. Introduction and Specification........3 2.1 Specification............... 3 2.2 Introduction to Camera..........3 2.3 Introduction to Monitor..........5 2.4 Introduction to Accessories........8 3. Installation Guide............11 3.1 Make an Installation Plan.......... 11 3.2 Monitor Installation..........12 3.3 Camera Installation...........

  • Page 4: Package List

    1. Package Listing Thanks for choosing eRapta solar wireless backup camera system ATYZX5! We are committed to providing you with the best quality products, so our product will serve you for years. Please check the external packaging to see whether there are any signs of rough handling.
  • Page 5 The image above provides an overview of all the items in the package. If any items are missing or damaged, please contact us at : sales2@erapta.com...

  • Page 6: Introduction And Specification

    2. Introduction and Specification 2.1 Specification The system is designed to observe surroundings and assist parking, including a monitor, a camera, and other accessories needed to install. It requires 12-24 Volt Direct Current power to work. To avoid damage caused by electricity shock or improper installation, we recommend a qualified and experienced engineer to install the system for you.
  • Page 7 indicator light is off. ④：Indicator Light of Pairing. Usually the camera will pair automatically, otherwise select the pair option and pair them manually. When Pairing is in progress, the light will be flashing in green. When the pairing is successful, the light will stay in green.

  • Page 8: Introduction To Monitor

    2.3 Introduction to Monitor 2.3.1 Icons on the screen : This camera has signal : Camera battery status : Solar charging is in progress 2.3.2 Buttons on the monitor There are 5 buttons on the top of the monitor. From left to right, they are +, M, -, A, SEL.
  • Page 9 Right/Increase When entering the menu, you can select different options by pressing to move to the right, or pressing - to move to the left, and you can choose the options by pressing S. When entering the image settings, you can increase the parameters by pressing and decrease it by pressing -.
  • Page 10 is used for DIY reversing line. There are four options to adjust the reverse line by pressing , they are height H, width W, position M, and cancel the reverse line. In the H state, the height of the reversing line can be adjusted by pressing +, -.

  • Page 11: Introduction To Accessories

    2.4 Introduction to Accessories 2.4.1 Monitor activate button 1. It’s used to light up the screen when you need to see through camera. 2. It needs to be paired with the monitor before use. Normally, the Pairing is done Before leaving our factory. But you need to re- pair the button if it lost paired.
  • Page 12 2.4.3 Monitor Mount 1. It’s used to hold the monitor in the desired position. 2. Two types of mounts are available depending on the need. 2.4.4 Camera bracket 1. It’s used to fix the camera to the license plate. 2.4.5 Antenna 1.
  • Page 13 2.4.6 Plastic nut It’s used to fix the monitor and the monitor mount. 2.4.7 USB charging cable 1. It’s used to connect the charger and the camera. 2.4.8 2 Screws It’s used to fix the camera bracket to the license plate.

  • Page 14: Installation Guide

    3. Installation Guide 3.1 Make an Installation Plan Before installation, we recommend you spend a little time testing the system. This can help you confirm whether the system works normally before you install it on your vehicle. You can use a 12-24V power supply to power up the monitor and camera.

  • Page 15: Monitor Installation

    3.2 Monitor Installation There are two bracket options for screen mounting. And it can be mounted to the dashboard or to the windshield. 1. Mount the antenna to the back of the monitor. 2. Select a bracket. Place the plastic nut behind the bracket gimbal as shown in the picture.
  • Page 16 has been fixed with the monitor mount. 5. When you use the suction cup holder, first open the suction cup locking buckle as shown in the position. Wet the suction cup with water, fixed in the ideal position, then press the suction cup locking buckle.

  • Page 17: Camera Installation

    3.3 Camera Installation 1. Remove the license plate screws. Place the camera bracket in front of the license plate. The bracket direction as shown In the picture. The screw holes on both sides correspond to the license plate screw holes. Use the screws to fix the bracket to the license plate.
  • Page 18 To prevent it from falling off easily, we tightened the fixing clips. So when you take it off, you need to use more force. If you encounter any problems in the installation, please feel free to contact us: sales2@erapta.com We will provide professional technical support within 24h.

  • Page 19: System Operation

    4. System Operation This part describes the functions of 5 panels in menu page. You can press M to enter the menu page and adjust settings by buttons on the monitor. When you move the cursor to a panel or a sub-panel, its icon will become gray.

  • Page 20: Secondary Menu

    4.2 Secondary Menu 4.2.1 Pairing Setting Before leaving our factory, the camera has already been paired with the monitor. Generally, the product is automatically paired when the screen is on. But you need to re-pair the camera if it lost paired. We recommend you finish pairing before installing the system on your vehicle, because the monitor and camera needs to be within 3 feet in pairing.
  • Page 21 (Pairing setting). Press to confirm the . Then press the Monitor activate button. It will appear OK under when it is paired successfully. If the system is still not paired, Please feel free e-mail to our after-sales team at any time: sales2@erapta.com...

  • Page 22: Image Parameters

    4.2.2 Image Parameters 1. Press to enter menu page. 2. Press to select the (Image setting). 3. Select brightness/contrast/saturation by press 4. Increase the parameters by pressing and decrease it by pressing 5. Press to confirm and exit the Secondary menu. 6.

  • Page 23: Image Rotation

    4.2.3 Image Rotation 1. Press to enter the menu page. 2. Press to select the (Image mirror/Flip setting). 3. Select flip or mirror image by press pressing 4. Press to confirm and exit the Secondary menu. 5. Press to exit the menu page.

  • Page 24: Screen Timeout

    4.2.4 Screen Timeout 1. Press to enter menu page. 2. Press to select the (Display time setting). 3. Select different display time by press pressing 4. Press to confirm and exit the Secondary menu. 5. Press to exit the menu page. Tips: When you select off to make the monitor stay on, it will speed up the power consumption and the life of the camera battery.

  • Page 25: Parking Guideline: On/Off

    4.2.5 Parking Guidelines: ON/OFF 1. Press to enter menu page. 2. Press to select the (Parking guide line setting). 3. Select on/off by press pressing 6. Press to confirm and exit the Secondary menu. 7. Press to exit the menu page.

  • Page 26: Parking Guideline Adjustment

    4.2.6 Parking Guidelines Adjustment 1. Press to enter the three different adjustment states of parking guide line, or turn off the parking guide line. 2. When it appears H, the height of the parking guidelines can be adjusted by pressing 3.

  • Page 27: Faq

    5. FAQ 1. Q: How to solve the problem of "black screen"? A: Check if the screen and camera are successfully paired. Check if the camera has power, and check if the car charger can power the screen. 2. Q: Why does the monitor activate button not match and not work? A: The monitor activate button needs to be connected to the screen.

  • Page 28: Warranty

    6. Warranty Each of your messages will be answered within 24 hours. We will help you solve your problems, and provide you with the best after-sales service and technical support! Email : sales2@erapta.com Warranty: Lifetime Warranty...
