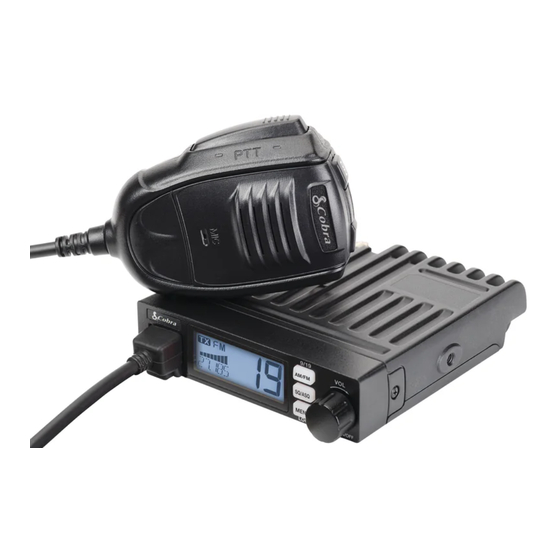

19 MINI AM/FM

Ultra Compact Recreational CB Radio

4W Power / 40 Channels / 12V Adapter

Owners Manual

Nothi

Nothin Comes os to a o a

No N N

Nothing Comes Close to a Cobra

thin

thi

thi thin

n C

ng C

g C

Come

C C ome

omes

ome

omes

Clo

se to

to a

to to a

a Co

a C

obra

Our Thanks, The CB Story,

and Customer Assistance

Thank you for purchasing the Cobra 19 MINI AM/FM CB. Properly used,

this CB radio will give you many years of reliable service.

Citizens Band Radio History

Invented by Al Gross in 1945, the CB radio originally served as a method of communication for troops

during World War II. After the war, Gross worked to make two-way radios a way of communication

for personal use and the CB radio service was established by law in the U.S. in 1949. It wasn't until

the 1970s that technology advanced and the CB market caught on as a method of communication

between drivers to report police speed traps and road hazards.

The Citizens Band Radio Service consists of 40 channel frequencies that are mostly 10 kHz apart.

Transmitter power is limited to 4 watts in the US, and range can vary depending on the terrain and

quality of the product.

Currently, the Citizens Band service does not require a license for operation, regardless of age, as

long as the rules of operation established by the Federal Communication Commission (FCC) are

followed.

Petition For FCC Part 65 Rule Changes

In 2016, Cobra petitioned the FCC to revise Part 95 rules to allow CB radios to use frequency

modulation (FM). Cobra contended that FM offers improved speech quality and lower noise

interference, which improves the standard of two-way radios and is a beneﬁt to the customer.

Through the direct efforts of Cobra Electronics and the enthusiastic support from loyal customers and

the distribution network, the FCC granted the request and in 2021, Part 95 ofﬁcially was updated to

include FM as an option for two-way radio use. In addition, AM/FM in CB radios allow backwards

compatibility to communicate with older AM-only CB radios.

Today, thanks to Cobra Electronics' petitions to improve the quality of the Citizens Band Radio

Service, users can enjoy the beneﬁts of CB radio communication in a range of industries.

Customer Assistance

Should you encounter any problems with this product, not understand its features, menu

or installation, please refer to the this owner's manual. If you require further assistance,

after reading this manual, we are here to help:

Service, Orders & Product Questions

For service, orders, product questions and service hours please call 800-543-1608

or go to www.cobra.com.

For Assistance Outside the U.S.A.

Contact Your Local Dealer
