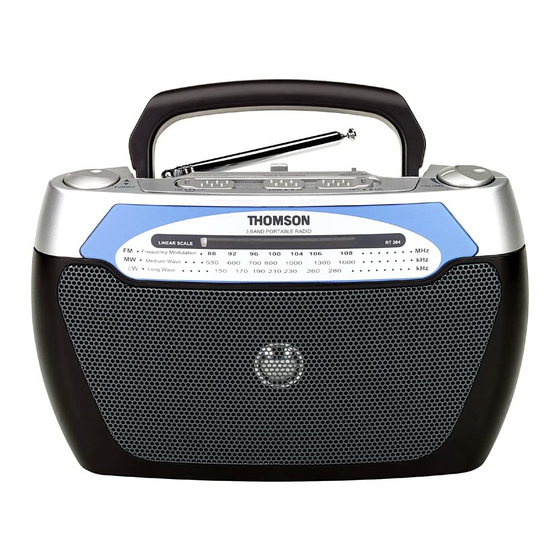

THOMSON RT304 Manual

Main Connections (For UK only)

MAINS CONNECTIONS:
(For UK, see inside front cover)
MAINS OUTLET POWER SUPPLY:
Note:
Power is fed to the unit even when it is not functioning. To cut the
Power Supply off, the power cable must be unplugged.
CAUTION:
For UK Only
CONNECT THE MAIN LEAD INTO AC MAINS
POWER SOCKET
POWER SUPPLY 230V.
Note: The mains lead of the set is fitted with a
moulded plug. If the mains socket are not
compatible or if for any reason the plug is
removed please follow the directions below. The
moulded plug cannot be rewired and if removed
must be disposed of safely.
DO NOT under any circumstances plug the severed
plug into any mains socket as this could result in
electric shock.
Important: If the plug is removed, rewire the
new plug as follow:
The wires in the mains plug are coloured in
accordance to the following code:
BLUE = NEUTRAL & BROWN = LIVE
RT304/464 EN
230V ~50Hz
If the colours of the wires in the mains lead of
this apparatus may not correspond with the
coloured markings identifying the terminals in
your plug, proceed as follows:
BLUE wire to the terminal coded N (Neutral) or
coloured black.
BROWN wire to the terminal coded L (Live) or
coloured red.
DO NOT make any connection to
the terminal in the plug which is
marked by the letter E or by the
earth symbol or coloured green
or green and yellow.
1
BLUE BROWN
A fused plug must be fitted
with a 3A fuse approved by
ASTA or BS1362 and fuse
covers must be always be
securely replaced. If your set
does not work, the fuse may
be blown.
