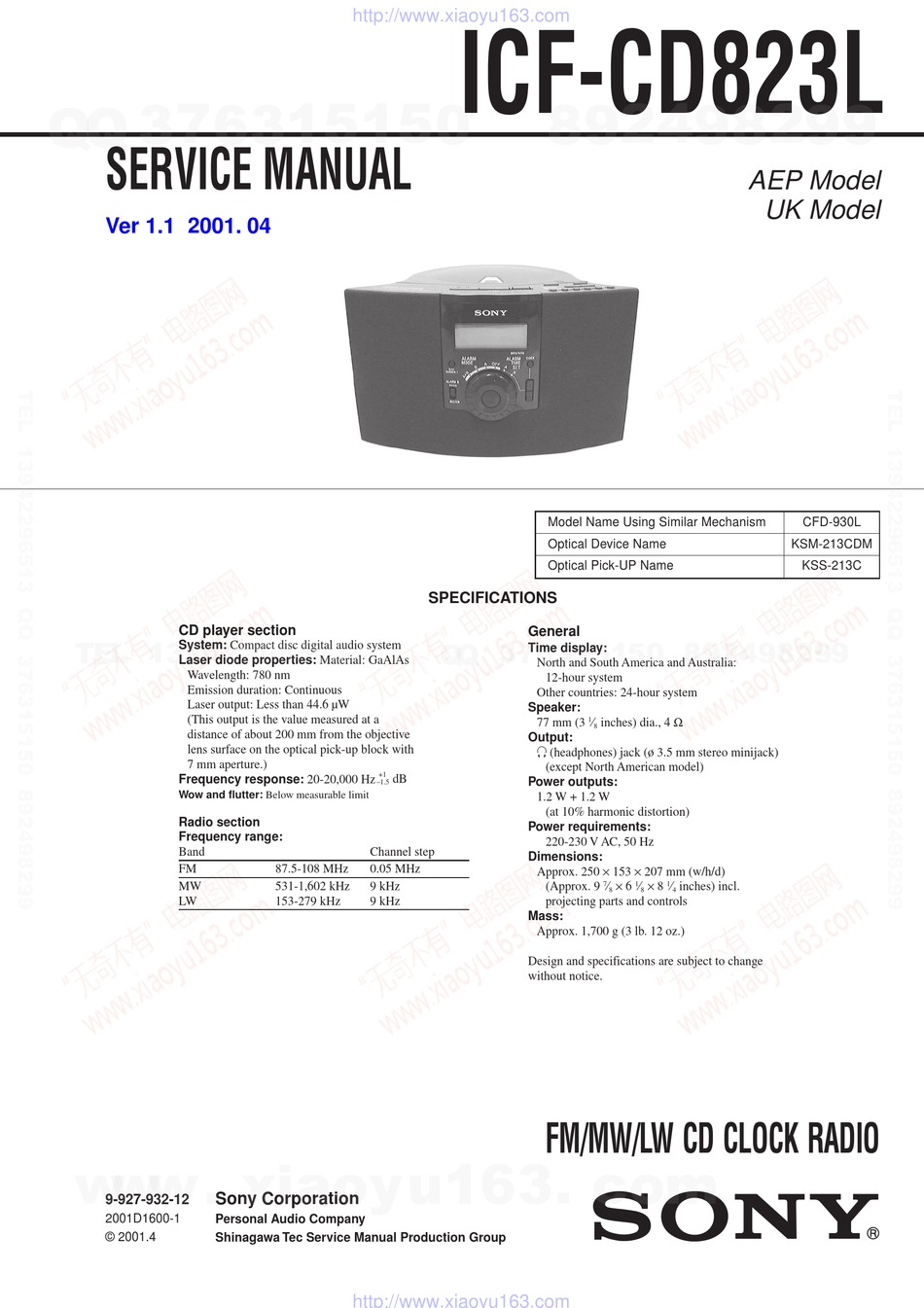

Sony ICF-CD823L Service Manual

QQ
3 7 63 1515 0
SERVICE MANUAL
Ver 1.1 2001. 04
TE CD player section
L 13942296513
System: Compact disc digital audio system
Laser diode properties: Material: GaAlAs
Wavelength: 780 nm
Emission duration: Continuous
Laser output: Less than 44.6 µW
(This output is the value measured at a
distance of about 200 mm from the objective
lens surface on the optical pick-up block with
7 mm aperture.)
Frequency response: 20-20,000 Hz
Wow and flutter: Below measurable limit
Radio section
Frequency range:
Band
FM
MW
LW
www
.
Sony Corporation
9-927-932-12
2001D1600-1
Personal Audio Company
© 2001.4 Shinagawa Tec Service Manual Production Group
http://www.xiaoyu163.com
+1
dB
–1.5
Channel step
87.5-108 MHz 0.05 MHz
531-1,602 kHz 9 kHz
153-279 kHz 9 kHz
x ao u163
y
i
http://www.xiaoyu163.com
ICF-CD823L
2 9
8
Model Name Using Similar Mechanism
Optical Device Name
Optical Pick-UP Name
SPECIFICATIONS
Q Q
General
3 6 7 1 3 1 5
Time display:
North and South America and Australia:
12-hour system
Other countries: 24-hour system
Speaker:
inches) dia., 4 Ω
1
77 mm (3 ⁄
8
Output:
i (headphones) jack (ø 3.5 mm stereo minijack)
(except North American model)
Power outputs:
1.2 W + 1.2 W
(at 10% harmonic distortion)
Power requirements:
220-230 V AC, 50 Hz
Dimensions:
Approx. 250 × 153 × 207 mm (w/h/d)
(Approx. 9
projecting parts and controls
Mass:
Approx. 1,700 g (3 lb. 12 oz.)
Design and specifications are subject to change
without notice.
FM/MW/LW CD CLOCK RADIO
co
.
9 4 2 8
AEP Model
UK Model
0 5 8 2 9 9 4 2 8
× 6 × 8
7 1 1
⁄ ⁄ ⁄ inches) incl.
8 8 4
m
9 9
CFD-930L
KSM-213CDM
KSS-213C
9 9
