Technical Support and E-Warranty Certificate www.vevor.com/support

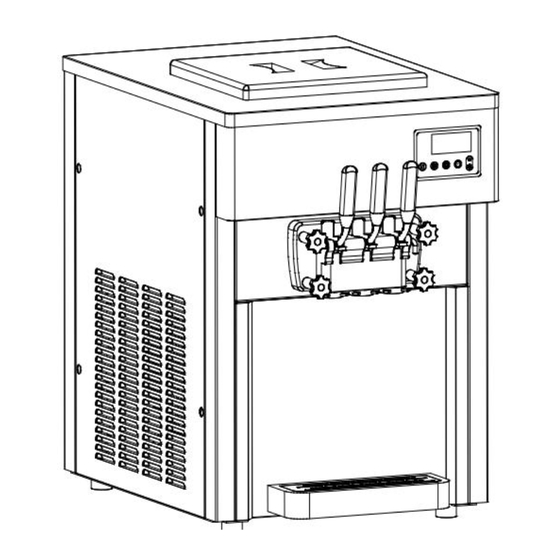

ICE CREAM MACHINE
MODEL:BQL-7200T
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for VEVOR BQL-7200T
Summary of Contents for VEVOR BQL-7200T
- Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support ICE CREAM MACHINE MODEL:BQL-7200T We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses not necessarily mean to cover all categories of tools offered by us.
- Page 2 This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
-
Page 3: Table Of Contents
Warning-To reduce the risk of injury, user must read instructions manual carefully. CORRECT DISPOSAL This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. - Page 4 2. Children should be supervised to ensure that they do not play with the appliance. 3. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 5 There are flammable materials in refrigerant pipes and compressor. Please be far away fire source during using, service and disposal. 2. FCC Information CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment! This device complies with Part 15 of the FCC Rules.
- Page 6 3. Unpacking & Inspection 1) Cut and unfasten the straps and planks securing the carton; remove the carton, foam boards, and packing bags to see if there is any damage to the device's appearance. (Note: The device must not be tilted more than 45° during transportation.) 2) Open the cylinder cover and check whether all the accessories contained in the packing list are available.
- Page 7 Fig. C 5) Install the water receiver as shown in (Fig. C). 6) Check the nameplate affixed to the rear panel of the device and ensure that the voltage specified on the device matches the local supply voltage. 7) Be sure the dispenser is properly grounded. Otherwise, an electric shock may occur in the event of a malfunction or electric leakage.(For some models ,the grounding line is the yellow-and-green line at the bottom)
-
Page 8: Ii.product Structure Diagram
5. Power Connection All the internal wires have been fully connected before delivery of our Bingzhile Ice-cream Dispensers. The only thing for users to do is to select proper wires according to the required power and connect with the power cord at the bottom rear-end of the device, in addition to proper grounding. -
Page 9: Iii.operation Panel & Functions
III. Operation Panel & Functions The operation panel is divided into a key fluorescent screen and an LCD screen (select the corresponding operation) Operate as shown in Fig. D, E, and F 1) Cleaning/Unfreezing key: In standby mode, press the key to trigger cleaning mode. As the cleaning indicator lights on with a buzzing sound, the stirring motor starts running, and the LCD screen displays the current value of the stirring motor. - Page 10 motor is shown on the LCD screen. Press this key again to enter the standby mode. (Only applicable for models with this function) 6) Timing/Resetting key In standby mode, press this key to trigger timer resetting mode. Press this key again to change the timer resetting value. Hold down this key for 10 seconds to reset the number of cups.
-
Page 11: Iv.how To Make Ice Cream
IV. How to Make Ice Cream 1) Leave the prepared ice cream slurry standing for 15 minutes before pouring it into both cylinders at the top of Ice-cream Dispenser; Note: The slurry shall not cake. 2) Power on the Ice-cream Dispenser to enter the standby mode, then press the "cleaning key"... -
Page 12: V.cleaning & Maintenance
cream as required. Note: In the previous cleaning mode, you are required to keep an eye on the "current hardness" value displayed on the screen. If the "current hardness" displayed is 2.2, the hardness of ice cream shall be set between 3.5-5.0;... -
Page 13: Vi.troubleshooting & Solutions
5) Power off,disassemble and wash the parts: Loosen the four screws on the outlet valve and disassemble the outlet valve unit. Take out handle fastening pin, handle, valve rod, seal ring from the outlet valve in tuns. Take out the stirrer from the refrigerating cylinder. Clean all the disassembled parts. - Page 14 1.The power cord is not 1. Check the power properly connected cord and re-connect it 2. Check the null line 2. The null linc is not and make sure it's connected properly connected dispenser 3. The function switch is 3. Turn on the fails to start not turned on function switch...
- Page 15 1. Repair the leakage and vacuumize it to 1. Refrigerant lcakage replenish the refrigerant dispenser fails to 2. Clean the 2. Condenser blockage refrigeratc condenser 3. Repair or replace 3. The fan fails to operate the fan 1. Adjust the belt or 1.
- Page 16 1. The puffing pipe is 1. Rcinsert puffing not inserted pipe Poor puffing effect 2.The puffing switch is 2. Turn on the puffing not turned on switch 1. The slurry ratio is 1. Prepare new wrong qualified slurry 2. Improper hardness 2.
- Page 17 The compressor stops after the ice cream is 1. The travel switch 1. Repair or replace formed, but the contact is connected the travel switch motor does not stop When making ice cream, the motor 1. Repair or 1. The travel switch is does not operate replace the damaged...
-
Page 18: Vii.accessories
VII.Accessories 1. An intenal hexagonal wrench 2. A set of scal rings 3. A Uscr's manual 4. A warranty card Technical Parameters: Please refer to the nameplate for specific technical parameters and refrigerant performance. Circuit Diagram of Ice Cream Maker - 17 -... - Page 19 Made In China - 18 -...
- Page 20 Technical Support and E-Warranty Certificate www.vevor.com/support...
Need help?
Do you have a question about the BQL-7200T and is the answer not in the manual?
Questions and answers
How do I turn off (disable) the CL2 alarm?
To disable the CL2 alarm on the VEVOR BQL-7200T, which indicates a slurry shortage in the right cylinder, follow these steps:
1. Refill the slurry in the right cylinder.
2. Insert the resetting key into the switch at the bottom of the display panel.
3. Turn the resetting key clockwise 90° to reset the ice cream record and clear the alarm.
This process will stop the CL2 alarm if the slurry shortage has been resolved.
