ICE CREAM MACHINE
MODEL:BQL-9200STA BQL-9200ST
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for VEVOR BQL-9200STA
Summary of Contents for VEVOR BQL-9200STA
- Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support ICE CREAM MACHINE MODEL:BQL-9200STA BQL-9200ST We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses not necessarily mean to cover all categories of tools offered by us.
- Page 2 This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
-
Page 3: Correct Disposal
Warning-To reduce the risk of injury, user must read instructions manual carefully. CORRECT DISPOSAL This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. -
Page 4: Safety Precautions
VII.Ice Cream Machine Cleaning and Maintenance Methods VIII.Fault Analysis and Solutions Safety Precautions ·Before using the appliance, please read this user manual to ensure that you gain the maximum benefit from it. 1. WARNING: 1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. -
Page 5: Fcc Information
flammable propellant in this appliance. 11. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. ·Note: This appliance contains flammable refrigerant R290 and foaming agent cyclopentane. Please avoid contact fire when you transport and use it. Please ask professional for servicing when the machine broke down. - Page 6 This product generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception,which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the...
- Page 7 to allow cold air to enter the machine and allow hot air to escape, to ensure the condensation cycle of the machine.Clean the dust on the condenser regularly . Note: The machine will inevitably be shaken during transportation. It is best to use it for 4 hours after smoothing.
-
Page 8: Product Structure

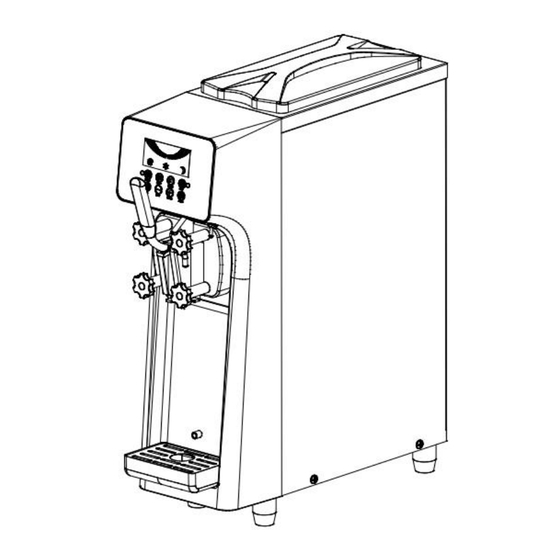

Product Structure： 1.screw for distributor 10.condenser 2.pin 11.fan 3.handle 12.gear motor 4.piston 13.mother board 5.wave ring 14.panel 6.beater 15.hopper 7.seal for distributor 16.cover for hopper 8.tray 17.rear plate 9.compressor 18.side plate BQL-9200ST Operation Panel and Function - 7 -... - Page 9 Introduction Home Page (A) Setting Page (B) Switch on the power, as shown in figure (A), bottom-left corner shows the tank is short of ingredient, the red icon flashes. After adding ingredient, red icon changes to white icon.and press “Set” enter to figure ( B)“Setting page”...
- Page 10 Cleaning Page (E) Cooling Page (F) In the standby state, press “Wash” enter to figure (E) “Cleaning Page” .the stirring motor runs, display screen shows the current value of the current stirring motor. Press “ Stop” to enter the standby state. In the standby state, press “Auto”...
- Page 11 Display screen show as figure (H), please cut off the power switch to wait or check. BQL-9200STA Operation Panel and Function Introduction the operation panel is divided into LCD screen (select the corresponding operation with the object control) LCD screen operation and function introduction ) 1.the washing-defrosting key:...
- Page 12 4.preservation pre cooling key : In standby state, press the “Preservation” button, the preservation indicator lights up, the buzzer makes a short sound, the agitator motor, compressor, fan motor delay start, the liquid crystal display shows the current value of the current agitator motor.
- Page 13 Please use the food detergent and cleaning brush to clean the parts that have been dismantled (refer to the product structure drawing), especially the groove of the O-ring should be thoroughly cleaned. Note: Please do not damage or lose parts during operation; do not use hot water or dish washing detergent to clean the resin parts, otherwise it may cause deformation;...
- Page 14 3） Assembly of the discharge valve, refer to (Figure K) Note: Don't forget to install the seal ring Figure K 4）Install the water tank as shown (Figure L). Figure L Note: the components are assembled in the process of the ice cream machine, make sure the control power switch is off.
- Page 15 hardness value. 4 ） Press the "Auto" button, the machine enters the cooling state. press the “Fresh” button to cool the slurry in the feed chute. 5)When the hardness of the current ice cream reaches the set hardness, the machine will automatically stop and rest; when the machine stops taking a rest, the automatic start time adjustment range is within 3-9 minutes.
- Page 16 1）Press the wash button to discharge all the slurry in the tank, press stop, the machine stops. 2）Please use hot water and an appropriate amount of disinfectant, pour it into the tank and pour it into a volume of about 70% of the tank. 3）...
- Page 17 3） Press the wash button again and stir for about 5 minutes before draining the cleaning solution. 4）Please wash with hot water for 2-3 times and stop. 5）Use a cleaning brush to clean the chute discharge port.Carefully clean the liquid level sensor with a clean cloth and a cleaning brush.If the cleaning is not clean, sometimes the material shortage alarm will not work.
- Page 18 IV.Cleaning and maintenance of the condenser During the working period, the condenser will be covered with dust ,which will affect the heat dissipation. The cooling effect is poor. It must be cleaned every two months. It is best to clean it by professional. Always turn off the power before cleaning, and do not damage the condenser fins.
- Page 19 1.Check the supply 1.Low voltage voltage 2.Function switch 2.Function switch cable wiring loose reconnection 3.Contactor is bad 3.Replace contactor compressor 4.There is a problem 4.Replace the PCB docs not run with the PCB board 5.Capacitor failure 5.Replace capacitor (220V series) 6.Compressor is bad 6.Replace compressor 1.Repair the leak point...
- Page 20 6. press "set", “factory 6.motor speed is not settings"enter password match 6800 1o retest 1.Reconstitute qualified 1.Slurry ratio is wrong slurry 2.Improper hardness 2.Reset hardness setting Ice cream is 3.Motor current is too soft 3.Repair or replace the large, there is a motor short circuit.
- Page 21 compressor stops after the 1.Travel switch 1.Repair or replace the ice cream is contacts are attached. travel switch formed, and the motor does not stop. When the ice cream is made, the motor does 1.Travel switch 1.Repair or replace the not turn, and damage travel switch...
- Page 22 5.Excessive use of a cylinder when playing ice cream 6.Hot slurry is poured into the cylinder for rapid cooling 7.When the motor direction is reversed, the material is cooled. 8.There is a problem with the PCB 9.LCD monitor is 2.Replace the display damaged UH--Over voltage alarm...
- Page 23 Made In China - 22 -...
- Page 24 Technical Support and E-Warranty Certificate www.vevor.com/support...
Need help?
Do you have a question about the BQL-9200STA and is the answer not in the manual?
Questions and answers
I want the manual on portuguese please.

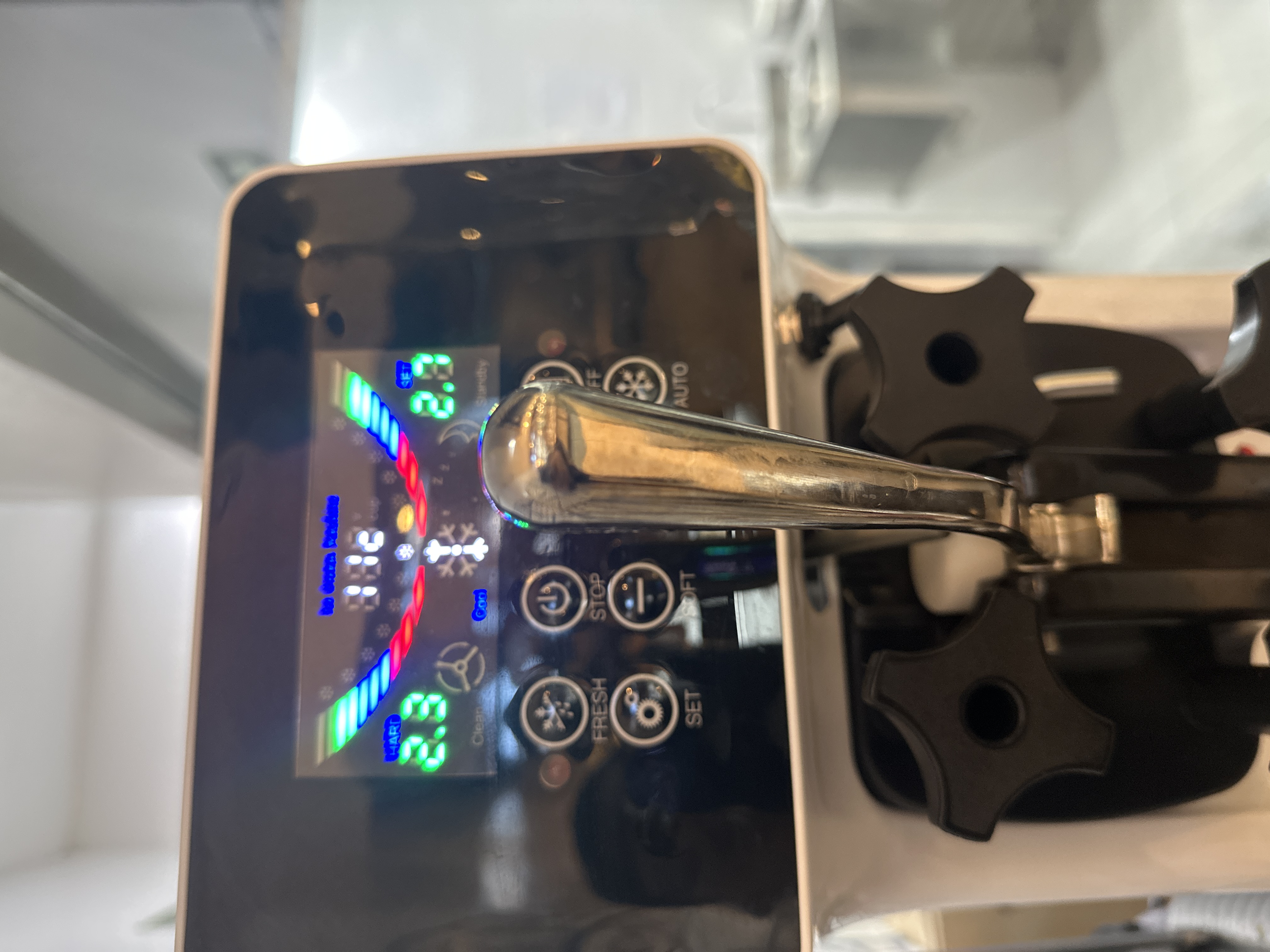

Vevor 9200sta doesn’t condensed the ice trem and the hard set up is not working
