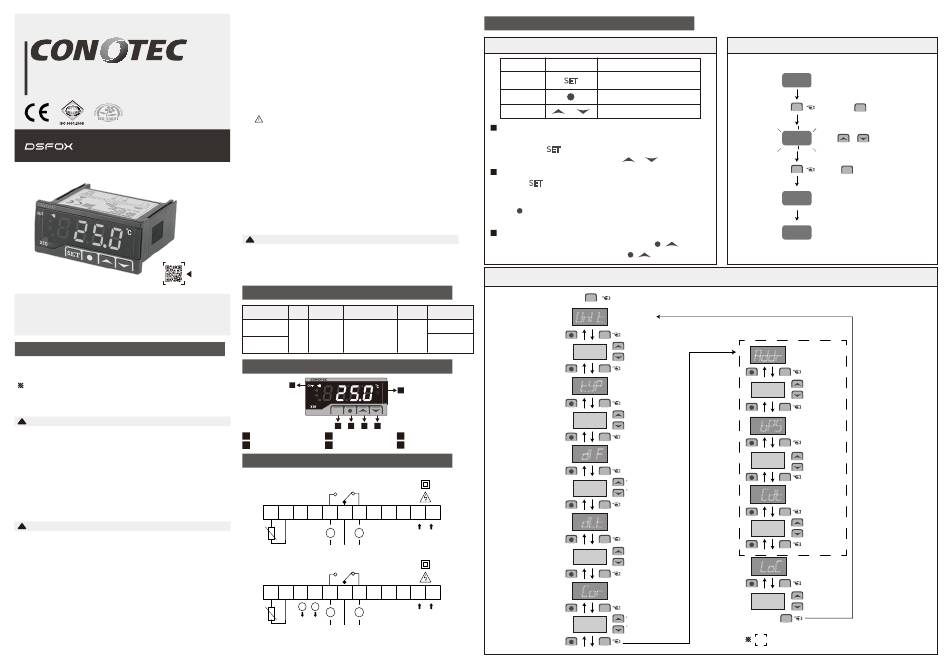

Conotec DSFOX-X10 Instruction Manual

Version 2.0.0(2024.03.22) WWW.CONOTEC.CO.KR
CONOTEC CO., LTD.
DIGITAL TEMPERATURE CONTROLLER
Instruction Manual
- X10,XR10
a detailed
description
• A user manual for this product is posted on the company website.
• Please download the technical document and communications
manual on the company website
01 Safety precautions
Please read the safety precautions carefully for correct
operation of the product.
※ The specifications and dimensions specified in this instruction
manual may be changed without any notice for performance
enhancement.
Warning
!
1. This product was not made as a safe device. Therefore, this
product should be attached with dual safety devices if it is used
for the control purposes (e.g. a device vulnerable to accident and
property damage, etc.).
2. Do not wire, inspect or service this product while the power is
being supplied.
3. You must attach this product to a panel. Otherwise, it may cause
an electric shock.
4. When connecting the power, you must check the terminal number.
5. Do not ever disassemble, process, modify or repair this product.
Caution
!
1. Please make yourself familiar with all the operation instructions,
safety precautions and warnings before using this product.
Comply with related specifications and capacity requirements
2. Do not wire or install this product to any unit with high inductive
load (e.g. motor, solenoid, etc.).
3. Use a shielded cable with a proper length when extending a sensor.
4. Do not use any part that generates an arc when used in the same
power or directly switched in close proximity.
5. Keep the power cable away from a high-voltage cable and do not
install this product in any place that is full of water, oil and dust.
6. Do not install this product in any place that is exposed to direct
sunlight or rain.
7. Do not install this product in any place that is subject to strong
magnetic power, noise, vibration or shock.
8. Keep this product away from any place that generates strong
alkaline or acid substances. Use a separate pipe.
9. Do not sprinkle water onto this product for cleaning when
installing it in the kitchen.
10. Do not install this product in any place where the temperature/
humidity ratings are exceeded
11. The sensor cable should not be cut or cracked..
12. Keep the sensor cable away from a signal cable, a power cable
or a load cable. Use a separate pipe.
13. Keep in mind that the follow-up service will not be available if
this product has been arbitrarily disassembled and modified
14. symbol on the terminal wiring diagram indicates a safety
statement that alerts a warning or caution.
15. Do not use this product near any device generating strong
high-frequency noise (e.g. high-frequency welding machine
high-frequency sewing machine, high-frequency radio,
large-capacity SCR controller, etc.).
16. Using this product in any method other than those specified by
by the manufacturer may lead an injury or a property damage
17. The product is not a toy. Keep it away from children.
18. The product should be installed only by an expert or
a qualified person.
19. The company will not be liable for any damage caused by the
violation of the above warnings and cautions or by a consumer's fault
Danger
!
Caution: Risk of electric shock
• Electric shock - Do not touch the AC terminal while the current is flowing.
It may cause an electric shock.
• Disconnect the input power before checking the input power.
02 Model Types
Control Temperature
Model Sensor Power
Type Range
Celsius : - 55.0 ℃
DSFOX-X10
100~240
Relay
NTC ~ + 99.9 ℃
VAC
contact
10K
Fahrenheit : - 60 ℉
(1EA) 50/60Hz
DSFOX-XR10
~ + 200 ℉
03 Components
1
OUT
6
X10
SET
2 3 4 5
1 OUT output display 2 SET switch 3 Back switch
Up switch Down switch Temperature unit
4 5 6
04 Terminal wiring diagram
[ DSFOX - X10 ]
Temperature control output
Sensor
NTC
10K
A C
B
1 2 3 4 5 6 7 8 9 10 11 12
R
R1 R2
POWER
SUPPLY
N R N
[ DSFOX - XR10]
Temperature control output
Sensor
NTC
Communications
10K
A
C B
1 2 3 4 5 6 7 8 9 10 11 12
+ - R
R1 R2
POWER
RS485
SUPPLY
N R N
※ Output : 250VAC 2A; A power relay or a magnet must be used.
※ Be careful that any load over the contact capacity may cause contact fusion,
contact defect, relay damage or others.
05 Setting process
Setting Method
Name Image
Entry into or return to the settings
SET
Set key
page Selection and saving of data values
Go to the previous menu when
Back switch
setting up a program
Increment/decrement of the
Up/Down key /
selected menu data
Chance of the temperature output's set temperature
(temperature setting)
1) If you press the SET key once, the setting will blink and be displayed.
2) Increase or decrease the setting with the
Installer mode settings (Program settings)
1) Press the SET key for at least 5 seconds to enter into the installer mode.
2) Configure the program based on the temperature program
configuration diagram.
3) Press key for Enter the previous setting menu
(*Program setting mode only)
System running / Stopping (only XR10)
1) In the running mode : System shut down by pushing
In the stop mode : System runs by pushing
2)
Program Setting (The value of each item is the factory setting.)
SET
Function UNIT
Temperature
control
SET
Temperature
control 485
C
communications
SET
TYP
SET
COOL
SET
Dif
SET
1.0
SET
Dlt
N
SET
0.00
SET
COR
N
SET
0.0
SET
Temperature Setting
Description
25.0
Bilnking 10.0
setting
or key
Change of the
set temperature
OK
O-K
(setting
confirmation text)
Current 25.0
temperature
+
+
Press the key for at least 5 seconds.
Temperture
unit setting
C/ f AdDr
SET
Output
1
function option
SET
COOL/ HEAT
bps
SET
Deviation
9600
temperature setting
SET
C : 0.1 ~ 25.0
cdt
F :1 ~100
SET
Output delay
in
time setting
SET
0.00 ~ 60.00
(00M 00S)
loc
SET
Temperature
correction setting
off
C :-10.0 ~10.0 SET
F :-20 ~ 20
Those functions within a dottes rectangle will only be
※
available on an XR 10 model.
The current temperature will be displayed.
SET If the press the SET key, the setting will blink.
Use the or key to change the setting.
SET Press the SET key after changing the setting.
O-K, a setting confirmation text, will be
displayed, and the current temperature
will be shown.
Communications
address setting
1 ~ 99
Baudrate setting
1200/ 2400/
4800/ 9600/
192-
Communication
data type setting
fl/ in
Lock setting
on/ off
