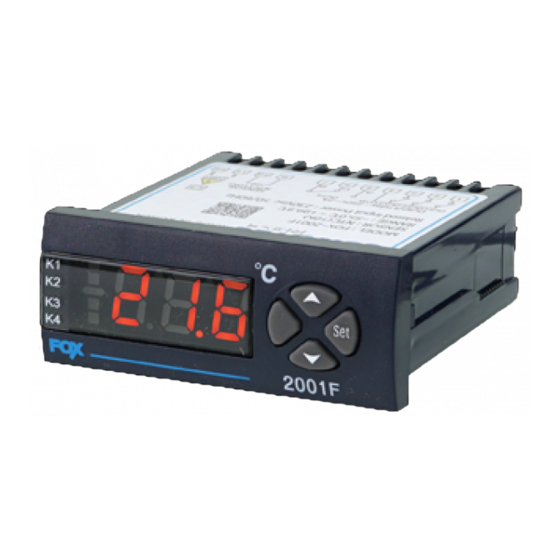

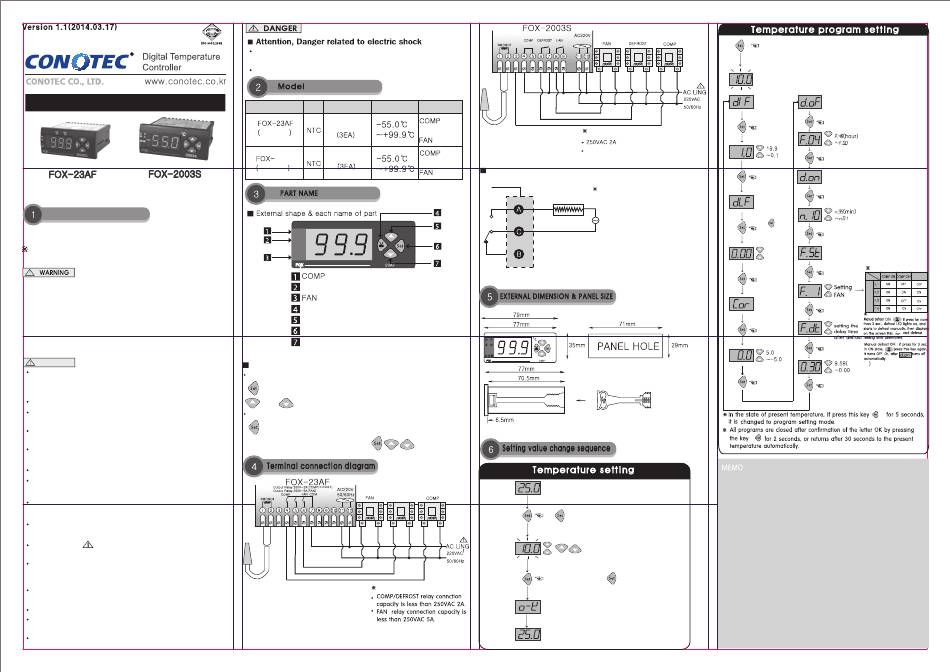

Conotec FOX-23AF Operating Manual

Operating Manual
Caution for safety
Read carefully this instruction manual before use and use
the product properly.
The specifications, appearance and dimension may be changed
for improvement of performance without a prior notice.
1. This product is not made as a safety device, so when it is used for
a control of devices feared to cause casualties, damages to the
peripheral devices or huge property loss, the double safety
devices should be arranged before use.
2. Avoid connecting lines, checking and repairing the products while
power is supplied.
3. Connect power after making sure the terminal number.
4. Never disassemble modify, improve or repair the product.
CAUTIONS
Be well-informed of how to use, safety regulations, warnings, etc
before installation of this device and apply it to the extent of the defined
specifications and relevant capacity without fail.
Avoid wiring or installation to a motor or solenoid with a large inductive load.
Use a shiled cable for extention of the sensor and ensure not to make it longer
than the necessity.
Ensure not to use the parts generating arc when switching at the same power
source or near to it.
Keep the po wer cable away from a high-tention po wer line and ensure not to
install it at a place with serious oil and dirt.
Avoid strong magnetic field or serious noise, vibration or impact.
Keep away from the place where strong alkaline or acid material is directly
released and use an independent pipe line.
When it is installed at kitchen, ensure not to pour water directly over the product
for cleaning.
Keep the sensor cable away from signal line, po wer source, power line or
loaded line and use an independent pipe line.
Note that the mark of in terminal connection diagram is the safety
expression for warnings or cautions.
Avoid using the product close to the device generating noises(high frequency
welder, high frequency sewing machine, high frequency radio, large capacity
SCR Controller, etc).
The use in any way other than what is instructed by the manufacturer may
cause injury or property loss.
It is not a toy and keep it out of reach of children's hand.
The installation of the device should be performed by an expert or a qualified
personnel without fail.
We shall not take any responsibility for the damage caused by non-compliance
with the abo ve-mentioned warnings or cautions or by any consumer's mistake.
Electric shock -Do not touch AC terminal during application of
electric current. It may cause electric shock.
Cut the power supply without fail during checking the input power.
Temperature
Sensor Controlled output Functions
Model
range
Relay contact
Defrost control
Cooler only
Relay contact
2003S
Defrost control
Cooler only
OUTPUT DISPLAY
DEFROST OUTPUT DISPLAY
OUTPUT DISPLAY
DEFROST SWITCH
UP SWITCH
FUNCTION CHANGE
DOWN SWITCH
User's mode changing(Temperature setting)
How to change the setting temp. for Main output
If press it once, the setting value is flickered.
or the value can be UP & DOWN with this key.
Mode setting for user
A key to enter to installer mode if press for more than
5 sec. change with these keys.
DEFROST
Output
control
Output
control
(5A)
Please make use of the power relay or
control
magnet surely.
Example for connection of relay
control
Note that use of load exceeding capacity of
contact may cause fusion of contact,
machine(load)
poor contact, damage of relay, etc.
power
Relay contact
output terminal
present temperature
By pressing this key, set value is
flickered
Flickering
Change the set value by pressing
the set temp.
these keys.
Changing
the set
After changing the set value
temperature
Confirm the
setting of
Displays the confirmed letter(OK)for
letter OK
saving set value,
and displayed the present temperature.
Present
temperature
Press for more than 5 seconds.
setting the
display unit
output
delay time
press this key.
Setting OFF time
for defrost
Setting ON time
for defrost
FAN setting
Chart
Defrost
F
A
N
How to set manual defrost
FAN ON
min,sec
