Hollyland Solidcom C1 Pro Hub Manual page 4

Antarmuka

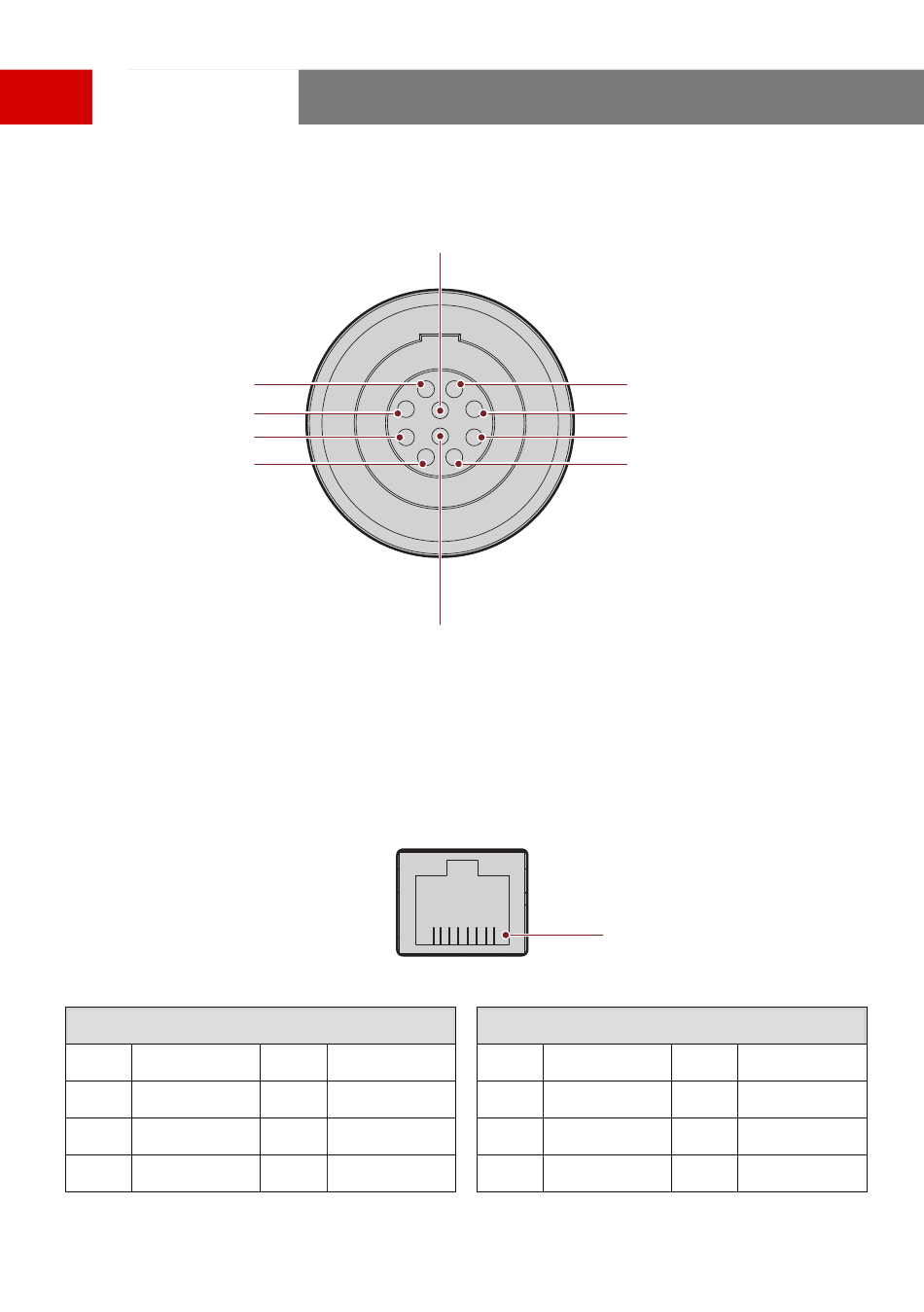

Antarmuka Headset Kabel 0B10
0B10 Wired Headset Interface
PIN8: MIC1 N-
PIN7: MIC1 P+
PIN6: MUTE
PIN5: RGB-A
Antarmuka Input & Output Audio 4-Kabel
4-Wire Audio Input & Output Interface
Jalur Standar
Standard Line Sequence
PIN1 GND
PIN1 GND
PIN2 GND
PIN2 GND
PIN3 AUDIO IN+
PIN3 AUDIO IN+
PIN 4 AUDIO OUT+
PIN4 AUDIO OUT+
PIN9: MIC2+
HEADSET
PIN10: GND
4-KABEL
PIN5 AUDIO OUT-
PIN5 AUDIO OUT-
PIN 6 AUDIO IN-
PIN6 AUDIO IN-
PIN7 GND
PIN7 GND
PIN 8 GND
PIN8 GND
ID-3
PIN1: SPK+
PIN2: SPK-
PIN3: ENC
PIN4: RGB-B
PIN1–PIN8
Jalur Silang
Cross Line Sequence
PIN1 GND
PIN1 GND
PIN2 GND
PIN2 GND
PIN3
AUDIO OUT+
PIN3 AUDIO OUT+
PIN 4 AUDIO IN+
PIN4 AUDIO IN+
PIN5 AUDIO IN-
PIN5 AUDIO IN-
PIN 6 AUDIO OUT-
PIN6 AUDIO OUT-
PIN7 GND
PIN7 GND
PIN 8 GND
PIN8 GND
