HIKVISION DS-PD2-D12P-W Instructions

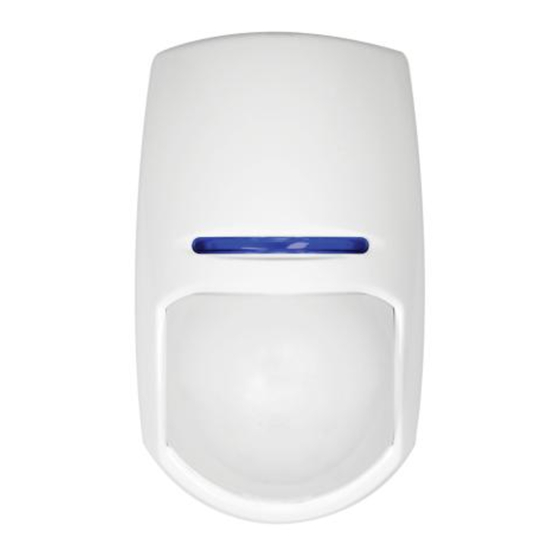

DS-PD2-D12P-W
Wireless 12m Dual Technology
Detector
UD09715B-A
E N G L I S H
References
1
WIRELESS DEVICE CONTROL
2
REGISTER LOCALLY/ VIA APP
Register Locally
Note: The distance between the security control panel and the detector should
be less than 50 cm.
Initialize the Detector
Register Via APP
1.Log in to the APP Store and input" Hik-Connect" to search the mobile client.
Download and install Hik-Connect to your phone.
3.Power on the security control panel.
4.Log in the Hik-Connect and tap the icon"+" at the upper-right coner of the
Hik-Connect page to add the security control panel. You can scan the QR code
on the device rear panel or on the package box, or input the device serial No.
3
DIAGNOSTICS
Specification
De te c on Ra ng e 12m
85°
60 zones， 7planes
0.3 - 3m/s
1.8-2.4m
Yes
Key Features
Blue Wave Technology Yes
Yes
Yes
Orange (Microwave), Blue (Alarm), Green (PIR)
3 Microwave Frequencies to Avoid Interference Yes
Front, rear, and bracket tamper signal input
Signal Strength Indicators (SSI) Yes
Microwave Frequency 10.515, 10.525, 10.535GHz
Transmission Frequency 433MHz, FM transceiver
Range in Open Space 800m
2x CR123A
2
Environment Features
Weight 135g
117 x 69 x 59mm
Dimensions(H x W x D)
Sealed
3D
Battery Information
reasons, having limited output current.
1
2
REGISTRATION
2.4m
0m
12m
12m
12m
Hangzhou Hikvision Digital Technology CO.,Ltd.
>5s
No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China
3
≤300s
LEDs
HIGH
LEDs
LO W
This product and - if applicable - the supplied accessories
too are marked with "CE" and comply therefore with the
applicable harmonized European standards listed under
2011/65/EU.
For electrical products sold within the European
Community. At the end of the electrical products life, it
should not be disposed of with household waste. Please
Authority or retailer for recycling advice in your country.
This product operates in a European
non-harmonised frequency band
5s
0.3 - 3m/s
0.3 -3m/s
