HIKVISION DS-PD2-P15C-W Manual

DS-PD2-P15C-W

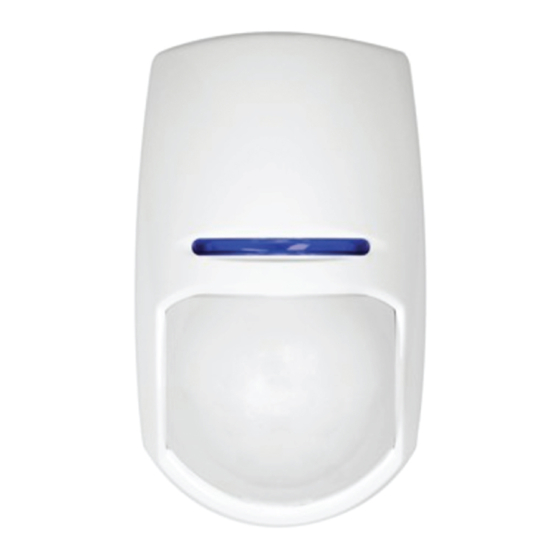

Wireless 15m Digital Curtain PIR Detector
This product and - if applicable - the supplied accessories too are marked with
"CE" and comply therefore with the applicable harmonized European
Diagram References
1
REGISTRATION
powered on.
2
DIAGNOSTICS (Check Signal Strength before Mounting)
Note: We also recommend doing a Walk Test of the system once
the detector is mounted (ENGINEER TESTS menu).
3
OPTIONAL WIRED TAMPER & OPTIONAL BRACKETS
Lens characteris cs
Detec on Range 15m
Detec on Angle 20 °
Detec on Zones 46 zones, 6 planes
Detec on Speed 0.3 - 3.0 m/s
Moun ng Height 2.4 - 4m
Creep-zone protec on yes
Key features
Blue Wave technology yes
Digital temperature compensa on yes
Tamper protec on Front, rear , and bracket tamper signal input
Signal Strength Indicators (SSI) yes
Electrical & ba ery
Transmission frequency 433MHz, FM transceiver
Range in open space 800m
3V lithium ba ery included 1x CR123A
Minimum ba ery life (years) 2
Environment features
Opera ng temperature -10°C /+40°C
125g
Weight
Dimensions 117 x 69 x 50mm
Direct light filter 6500 Lux
Cer fica on and warranty
Electrical conformity CE
Warranty 2 years
Accessories
Ceiling mounted bracket included yes
Wall mounted bracket included yes
The Curtain Lens
20
HORIZONTAL COVERAGE
46 z one edges
6 planes
1m 2m 3m 4m 5m 6m 7m 8m 9m 10m 11m 12m 13m 14m
15m
VERTICAL COVERAGE
4m
15m
1m 2m 3m 4m 5m 6m 7m 8m 9m 10m 11m 12m 13m 14m
2.4m
1m 2m 3m 4m 5m 6m 7m 8m 9m 10m 11m 12m 13m 14m 15m
When disposing of the pro ry must be removed
and disposed of separately in accordance with the local regul ons.
START
HIGH
LOW
1
Registering via Security Control Panel
Control Panel
Within 50cm
Register Detector
is finished.
Note: The distance between the security control panel and the detector
should be less than 50 cm.
2
O
3
.
LED ON LED OFF
+ +
HIGH
+ +
LOW
+ +
+ +
Unregister Detector
Delete the Detector from the Control Panel
three LEDs flash alternately.
three LEDs flash once together.
5s
+
-
BRACKETW
(Wall)
A C
B
D
+ CR123A -
LITHIUM
TAMPER B ATTERY
+
-
Registering via APP
1
1 Log in to the APP Store and input "Hik-Connect" to search the mobile client.
2 Download and install Hik-Connect to your phone.
3
4
Power on the security control panel.
5 Log in the Hik-Connect and ap the icon "+" at the upper-right coner of the Hik-Connect page to
add the security control panel. You can scan the QR code on the device rear panel or on the
package box, or input the device serial No. manually to add the device.
6
7
BRACKETC
(Ceiling)
E
C3
B
A
=
REAR TAMPER
See Sec
=
Registration
Alarm：Blue
Registration：Flashing red, blue, and green.
The indicator will flash 8 times if registration is
finished.
Self-checking：Flashing red and green.
When power on the unregistered device, the indicator will
Note:
turn to the sleep mode after fleshing for 90s.
REAR TAMPER
BREAK - OUT The KX15DD Print
D
®
EOL
C
END
®
