INSTALLATION INSTRUCTIONS

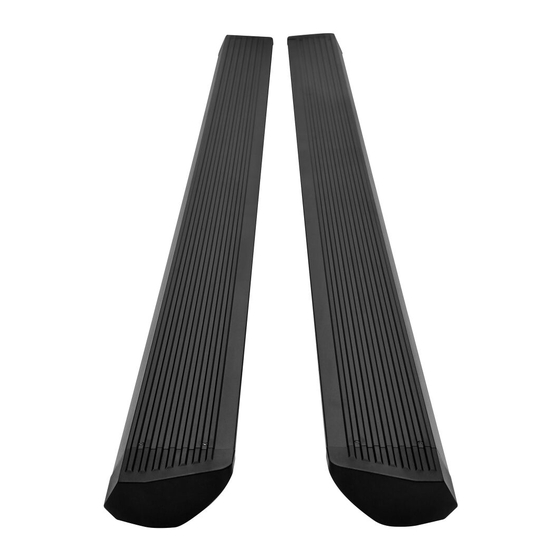

PRO-E ELECTRIC RUNNING BOARDS
APPLICATION:
Jeep Gladiator 2020-2023
PART NUMBER:
75-2924165
Estimated Time to Complete Product Installation: 3 - 4 Hours
Westin Automotive Products, Inc.
Thank you for choosing Westin products
320 W. Covina Blvd
for additional installation assistance please call
San Dimas, Ca. 91773
Customer Service (800) 793-7846
1
www.westinautomotive.com
P.N.: 75-2924165-RevA
ECO #: W23-0047
DATE: 08/28/2023
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Westin 75-2924165
Summary of Contents for Westin 75-2924165
- Page 1 PART NUMBER: 75-2924165 Estimated Time to Complete Product Installation: 3 - 4 Hours Westin Automotive Products, Inc. Thank you for choosing Westin products 320 W. Covina Blvd for additional installation assistance please call San Dimas, Ca. 91773 Customer Service (800) 793-7846 www.westinautomotive.com...
- Page 2 It is recommended that anti-seize lubricant is used on all stainless steel fasteners to prevent thread damage and galling. Note that failure to identify damage before installation could lead to a rejection of any claim. Westin Automotive Products, Inc. Thank you for choosing Westin products 320 W. Covina Blvd for additional installation assistance please call San Dimas, Ca.
- Page 3 ITEM 8 ITEM 9 ITEM 10 ITEM 11 ITEM 12 Westin Automotive Products, Inc. Thank you for choosing Westin products 320 W. Covina Blvd for additional installation assistance please call San Dimas, Ca. 91773 Customer Service (800) 793-7846 www.westinautomotive.com P.N.: 75-2924165-RevA...
- Page 4 White, Door Trigger Black, Negative. 12V- Red, Positive, 12V+ ITEM 12: Wiring Harness Leads Westin Automotive Products, Inc. Thank you for choosing Westin products 320 W. Covina Blvd for additional installation assistance please call San Dimas, Ca. 91773 Customer Service (800) 793-7846 www.westinautomotive.com...
- Page 5 Pinch Seam Final Position M8 Lock Mounting Block Front of vehicle Westin Automotive Products, Inc. Thank you for choosing Westin products 320 W. Covina Blvd for additional installation assistance please call San Dimas, Ca. 91773 Customer Service (800) 793-7846 www.westinautomotive.com P.N.: 75-2924165-RevA...
- Page 6 M8 hardware as shown in Figure 5. Please refer to Figure 3 for bracket orientation and locations. Figure 4 Figure 5 Figure 6 Westin Automotive Products, Inc. Thank you for choosing Westin products 320 W. Covina Blvd for additional installation assistance please call San Dimas, Ca. 91773 Customer Service (800) 793-7846 www.westinautomotive.com...
- Page 7 Figures 9. Torque to 25 ft-lbs. Figure 9 Figure 8 Westin Automotive Products, Inc. Thank you for choosing Westin products 320 W. Covina Blvd for additional installation assistance please call San Dimas, Ca. 91773 Customer Service (800) 793-7846 www.westinautomotive.com...
- Page 8 8-9 ft-lbs., M8 hardware to 15-18 ft-lbs., and M10 hardware to 35- 38 ft-lbs. Westin Automotive Products, Inc. Thank you for choosing Westin products 320 W. Covina Blvd for additional installation assistance please call San Dimas, Ca.
- Page 9 Front Passenger Side Shown Front Passenger Side Shown Front Passenger Side Shown Westin Automotive Products, Inc. Thank you for choosing Westin products 320 W. Covina Blvd for additional installation assistance please call San Dimas, Ca. 91773 Customer Service (800) 793-7846 www.westinautomotive.com...
- Page 10 Grounding bolt. Passenger Side Shown Passenger Side Shown Passenger Side Shown Westin Automotive Products, Inc. Thank you for choosing Westin products 320 W. Covina Blvd for additional installation assistance please call San Dimas, Ca. 91773 Customer Service (800) 793-7846 www.westinautomotive.com P.N.: 75-2924165-RevA...
- Page 11 1.5” Front door magnetic induction module placement Front door magnet Placement Westin Automotive Products, Inc. Thank you for choosing Westin products 320 W. Covina Blvd for additional installation assistance please call San Dimas, Ca. 91773 Customer Service (800) 793-7846 www.westinautomotive.com P.N.: 75-2924165-RevA...
- Page 12 0.5” Rear door magnetic induction module placement Westin Automotive Products, Inc. Thank you for choosing Westin products 320 W. Covina Blvd for additional installation assistance please call San Dimas, Ca. 91773 Customer Service (800) 793-7846 www.westinautomotive.com...
-
Page 13: Manual Switch
Fused power wires routed up to the engine compartment. Recommended mounting position. Westin Automotive Products, Inc. Thank you for choosing Westin products 320 W. Covina Blvd for additional installation assistance please call San Dimas, Ca. 91773 Customer Service (800) 793-7846 www.westinautomotive.com... - Page 14 Secure wiring harness to frame using zip ties. Front of Vehicle Westin Automotive Products, Inc. Thank you for choosing Westin products 320 W. Covina Blvd for additional installation assistance please call San Dimas, Ca. 91773 Customer Service (800) 793-7846 www.westinautomotive.com...
- Page 15 Figure 31 Rear bracket LED Front bracket LED positioning positioning Westin Automotive Products, Inc. Thank you for choosing Westin products 320 W. Covina Blvd for additional installation assistance please call San Dimas, Ca. 91773 Customer Service (800) 793-7846 www.westinautomotive.com P.N.: 75-2924165-RevA...
-
Page 16: Installation Complete
Your Westin Power Running Boards should now be operational. Step 35: Open and close all four doors to test the operation of your new Westin Power Running Boards. Also, test the manual switch by leaving the driver door open and flipping the switch to “O” or off this will signal the running boards to retract to the stowed position and will disable any further operation until the switch is flipped to the “I”... - Page 17 AND SAFETY. DRILLING: Most Westin products do not require drilling for installation. If drilling is defined as required, use caution when drilling a vehicle. FAILURE TO REVIEW AN AREA TO BE DRILLED MAY RESULT IN PERSONAL INJURY AND/OR INJURY TO OTHERS AS WELL AS VEHICLE DAMAGE.
