MP‐2 noise mod

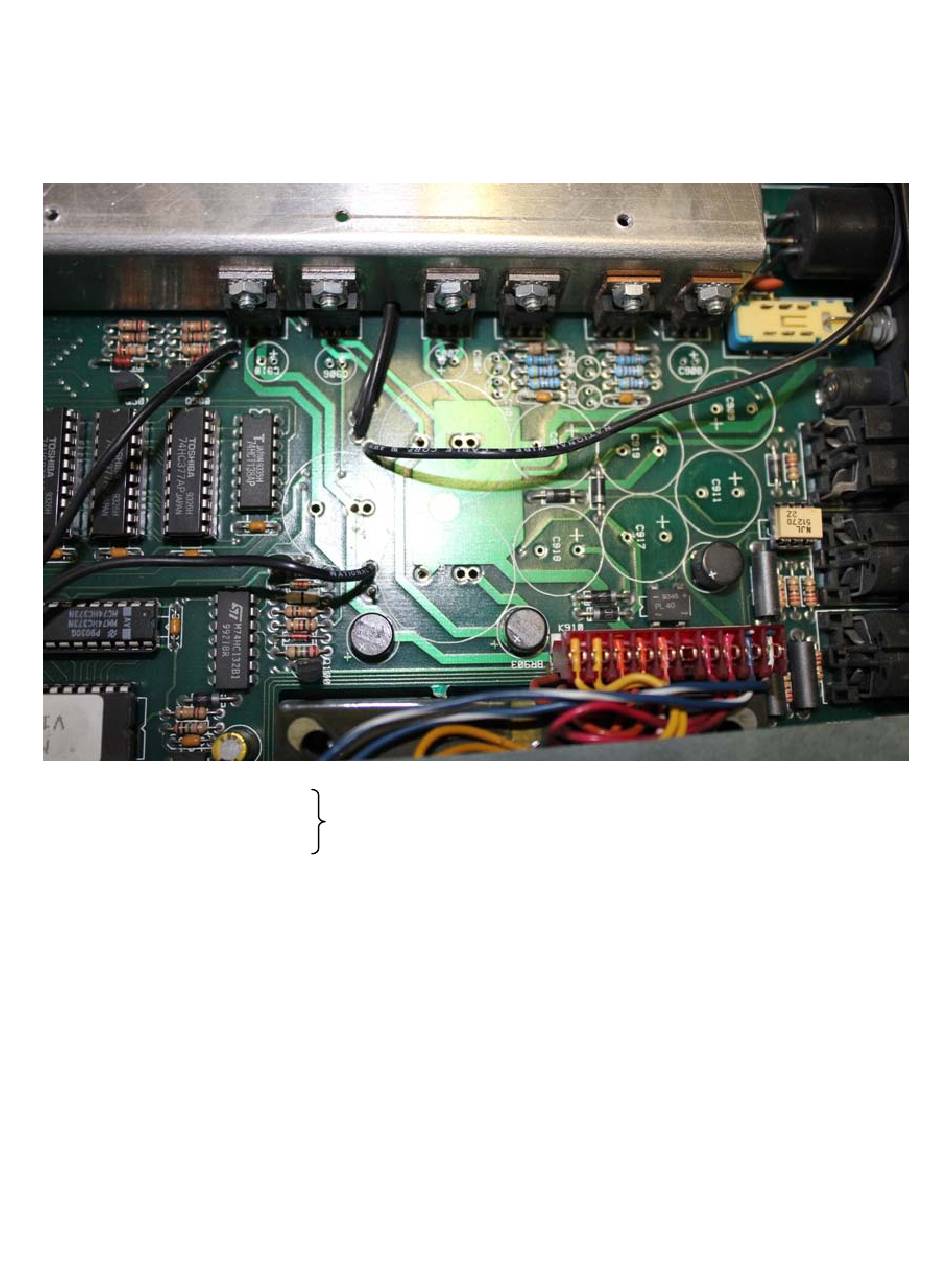

Step 1:Remove all these caps
C920: Replace with 4700µF/16V
C914: Replace with 4700ùF/35V
BE CAREFULL WHEN YOU REMOVE THESE,THEY ARE VERY HARD TO GET OUT
C915: Replace with 4700µF/35V
C916: Replace with 1000µF/50V
C918: Replace with 1000µF/50V
C917: Replace with 1000µF/50V
C919: Replace with 1000µF/50V
C909: Replace with 3300µF/35V
C911: Replace with 33µF/350V
C910: Replace with 33µF/50V
C908: Replace with 33µF/50V
C907: Replace with 33µF/50V
C906: Replace with 33µF/50V
C904: Replace with 10µF/50V
C903: Replace with 10µF/50V
C902: Replace with 10µF/50V
C901: Replace with 10µF/50V
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ada MP2
Summary of Contents for Ada MP2
- Page 1 MP‐2 noise mod Step 1:Remove all these caps C920: Replace with 4700µF/16V C914: Replace with 4700ùF/35V BE CAREFULL WHEN YOU REMOVE THESE,THEY ARE VERY HARD TO GET OUT C915: Replace with 4700µF/35V C916: Replace with 1000µF/50V C918: Replace with 1000µF/50V C917: Replace with 1000µF/50V C919: Replace with 1000µF/50V C909: Replace with 3300µF/35V C911: Replace with 33µF/350V C910: Replace with 33µF/50V C908: Replace with 33µF/50V C907: Replace with 33µF/50V C906: Replace with 33µF/50V C904: Replace with 10µF/50V C903: Replace with 10µF/50V C902: Replace with 10µF/50V C901: Replace with 10µF/50V ...
- Page 2 testpoint R913 C912 C333:Replace with 47µF/250V C324:Replace with 470µF/50V C912:Replace with 33µF/50V C334:Replace with 47µF/250V R913:Replace with 240k 1/2W (in this pic it’s already replaced) When finished the test point should have 190Vdc. ...
- Page 3 When finished it should look like this.Pay attention to the polarity of the caps!!!!!!! ...
