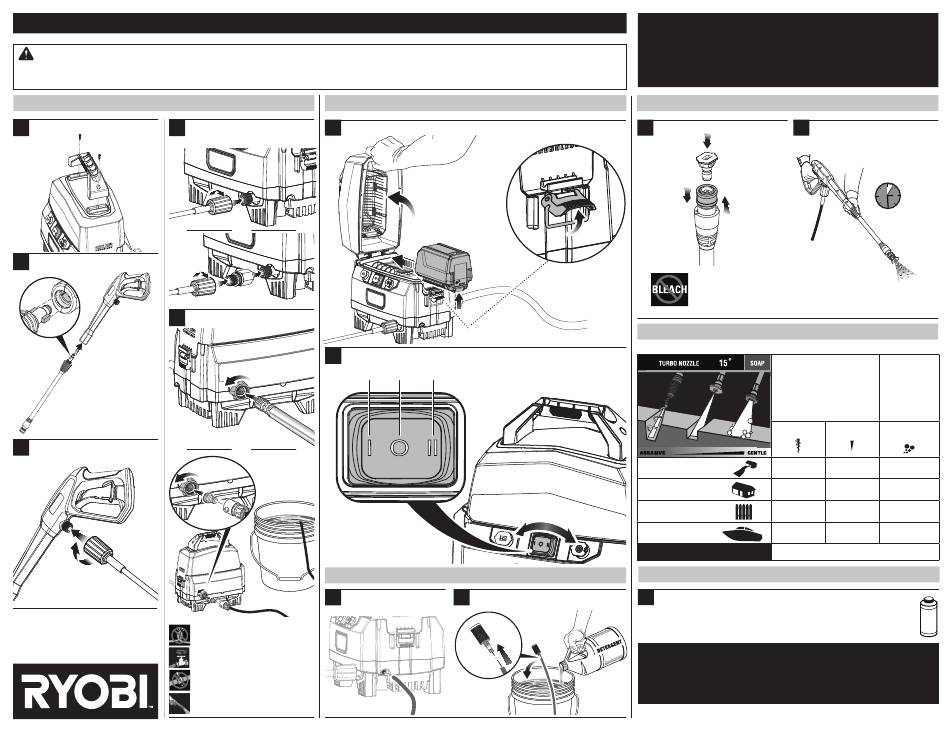

RY40HPPW12 QUICK REFERENCE GUIDE
WARNING:
This Quick Reference Guide is not a substitute for reading the operator's manual. To reduce the risk of injury or death, user must read and understand
operator's manual before using this product. All page references refer to the operator's manual.
FIRST TIME ASSEMBLY
Attaching the carrying handle
Connect the high pressure hose to the pump. If con-
1 4
(see page 7). necting to a non-pressurized water source, install
the self priming adaptor. (see page 8).
Connect the spray wand to the trigger handle
2
(see page 7).
Connect the garden hose or the siphon hose to the
5
pressure washer (see page 8).
Connect the high pressure hose to the trigger
3
handle (see page 7).
Completely uncoil garden hose or remove
completely from reel to prevent kinks.
Turn water faucet on fully or place siphon
hose into water source.
Make sure there are no leaks.
With no nozzle installed, squeeze the trigger
to relieve air pressure. Hold the trigger until a
steady stream of water appears.
STARTING THE UNIT
1
Install the battery pack into the pressure washer. Close the battery cover and fasten the latch to secure the cover.
(see page 9).
OR
2 To start the motor press the on/off switch to I for ECO mode, II for HI mode. (see page 10).
ECO ON SWITCH
MODE OFF
OR
Connect soap siphon hose to unit (see
1
page 11).
HI ON
MODE
USING DETERGENT
Pour pressure washer detergent into bucket. Connect soap
2
siphon filter to hose and drop in bucket. (see page 11).
There may be residual water in the
pump due to performance testing.
USING DETERGENT
Install blue or black soap nozzle (see page 12). Squeeze trigger and wait approx. 5 seconds for
3 4
soap (see page 12).
Use of soap nozzle will activate detergent injector at a 20:1 dilution ratio.
WARNING! Never use bleach or solvent-based detergent.
• Will damage your pump
• Will void your warranty
• Will damage plants/shrubs
NOZZLE SELECTION GUIDE
Use the chart below to determine the correct nozzle for your job.
HIGH PRESSURE
(NO SOAP WHEN USING
THESE NOZZLES)
Turbo Nozzle
 
Concrete, Brick, Masonry
Siding, Gutters, House
Fencing, Deck, Patio
Lawn Equipment, Boat, RV
  Use With Caution for Certain Applications
BEFORE STORING THE UNIT
Always add Pump Protector to the unit after each use and before storing. This will significantly improve
1
pump life. (See page 14).
Pump protector is available from your local retailer. For further assistance, call customer service at
1-800-525-2579.
To add, follow the instructions provided by the Pump Protector manufacturer.
Make the most of your purchase! Go to www.ryobitools.com
and register your new tool online. For questions about operating or
maintaining your product please call, 1-800-525-2579.
