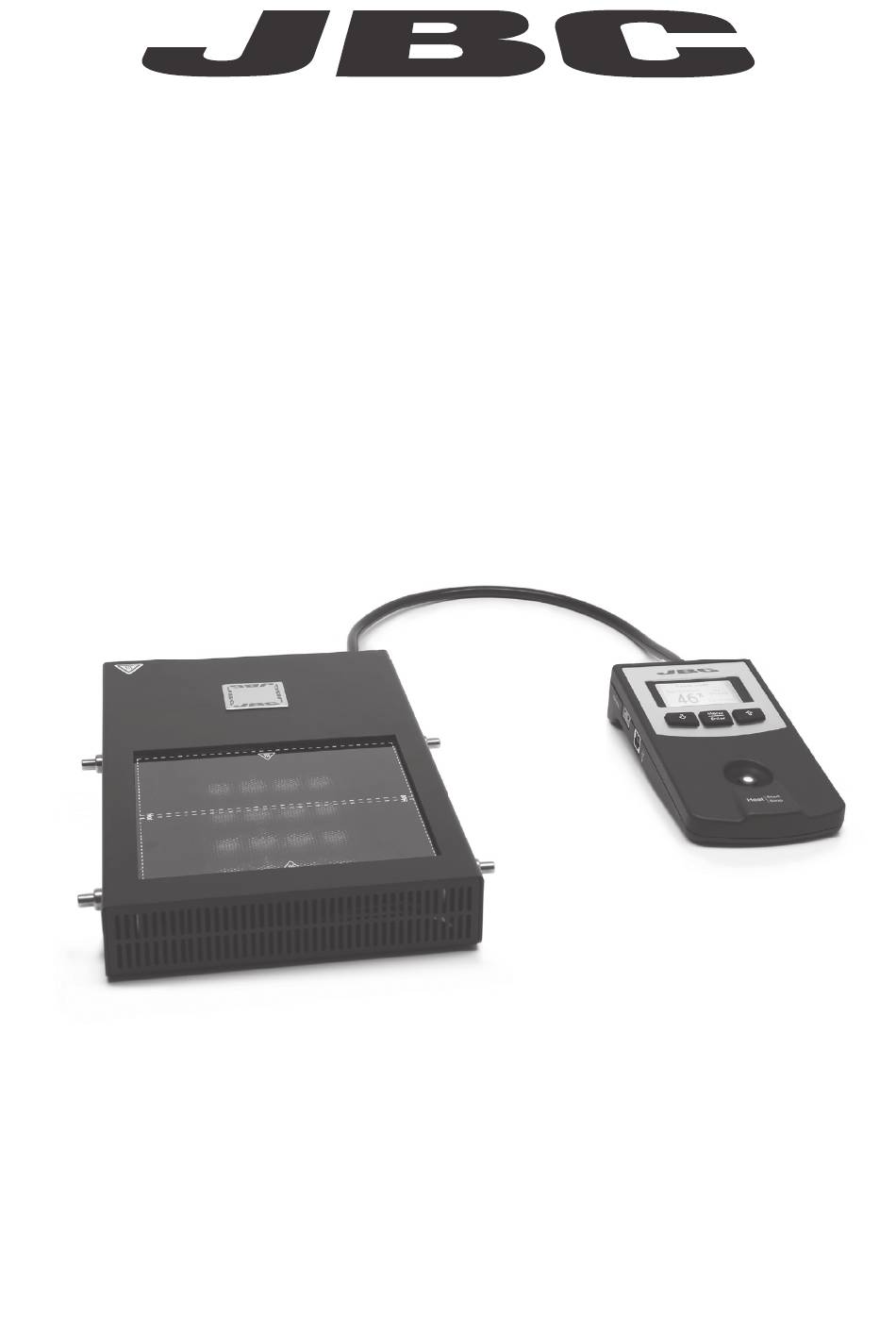

- Page 1 www.jbctools.com INSTRUCTION MANUAL IR Preheater Ref. PHS-C...
-
Page 2: Packing List

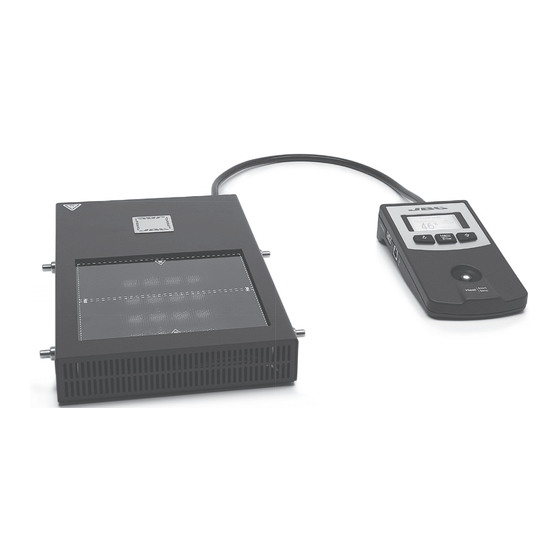

Packing List The following items should be included: IR Preheater ............................... 1 unit Ref. PHS-1C (120V) PHS-2C (230V) PHS-9C (100V) Heater Unit Console Power Cord ..........1 unit Kapton Tape ..........1 unit Ref. 0009417 (100V/120V) Ref. PH217 0009401 (230V) Thermocouple .......... - Page 3 w w w.jbctools.com Features Heater Unit Heating Areas Zone A Zone B Fixing brackets for PHS-SA Convection Preheater Support Power Power socket Pedal socket (optional) Ref. P-005 Console Control Unit Start / Stop USB-B connector to PC: Update software Thermocouple (Type K) Ref.
-
Page 4: Operation
JBCset profiles There are 3 profiles predefined by JBC: A, B and C. The difference between them is the number of steps: 2, 3 or 4. The thicker your PCB is and the more layers it contains, the more steps are needed to obtain a gradual warming. -
Page 5: Recommended Guidelines
w w w.jbctools.com Recommended Guidelines 1. Place the Thermocouple (TC) as near as possible to the component being worked on. Fix the TC with Kapton Tape Auxiliary Thermocouple (TC) 2. If there are any sensitive components, use the Auxiliary Thermocouple as protection. You can select the protection temperature in Station settings. -
Page 6: Display Control
Display Control... - Page 7 w w w.jbctools.com...
-
Page 8: Maintenance
- Replace any defective or damaged parts. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service. - Page 9 w w w.jbctools.com Safety It is imperative to follow safety guidelines to protect health and prevent electric shock, injury, fire or explosions. - Do not use the units for any purpose other than PCB preheating. Incorrect use may cause fire. - The mains cable must be plugged into approved bases.
-
Page 10: Exploded View
Exploded View... - Page 11 w w w.jbctools.com...
-
Page 12: Specifications
600 min or indefinite Complies with CE standards. ESD protected housing. Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse. In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased.
