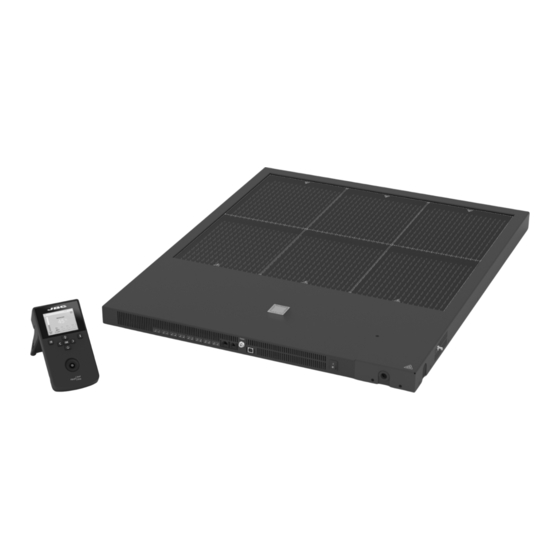

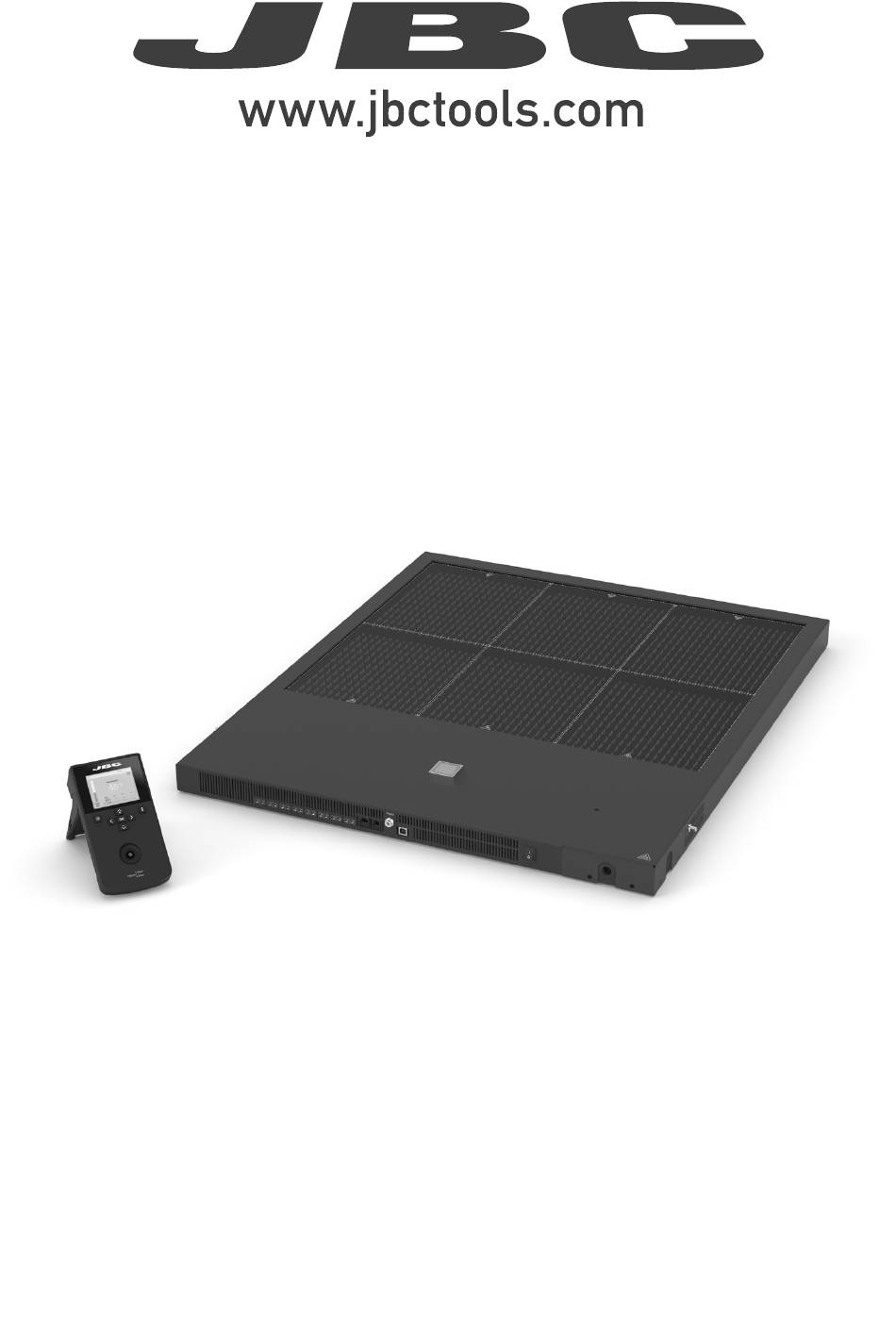

- Page 1 INSTRUCTION MANUAL PHXLE XL Preheater...
-
Page 2: Packing List
This manual corresponds to the following references: PHXLE-9A (100V) PHXLE-1A (120V) PHXLE-2A (230V) Packing List The following items are included: XL Preheater Unit ........1 unit Console ......1 unit Ref. ACE-A Kapton Tape ..........1 unit Thermocouple ........3 units Ref. -
Page 3: Features And Connections
w w w.jbctools.com Features and Connections Preheater Unit Heating Areas (6 independent heating areas) Zone B1 Zone B2 Zone B3 Fixing brackets for Zone A1 Zone A2 Zone A3 Thermocouple XL PCB Support Connectors x8 (Type K) For Electrical Power Supply RJ45 Connector Connection to Console... -
Page 4: Connection To Power Supply
Connection to Power Supply RJ45 Cable Ref. 0019914 PHXLE can be connected to single-phase or three-phase networks. A power supply cable is required. Use the following table to determine the cable size and connection: Peak Current Cable Connection Wire Section Ref. - Page 5 w w w.jbctools.com To conect your power supply cable to the Heater Unit do as follows: Cable grommet 1. Unscrew the four screws and remove the 2. Insert the cable through the cable grommet cover. The cable can be inserted through the and the flange and fix it with the allen screws.
-
Page 6: Work Screen
Work Screen The Console offers an intuitive user interface which provides quick access to station parameters. 14:15 Status Indicator 14:15 Max. Rate Status Bar º 1.6ºC/s Max. Heating Max. Rate Rate Instant Power º 1.6ºC/s º Selected 120 Supplied to TC1 Current Heater and Selected... -
Page 7: Recommended Guidelines
w w w.jbctools.com Setting Thermocouples Function Select Thermocouples from the Work mode menu to set them up. The thermocouples (TC) can work in three diferent ways depending on what is needed. · Control: the unit mantains the selected temperature. · Protection: the Heater Unit stops if the TC reaches the selected temperature. ·... -
Page 8: Work Mode
14:15 Work Mode Max. Rate º 1.6ºC/s Temperature Mode: Select Temp. mode from the Work mode menu. In this mode the heater unit maintains the selected Selected 120 º temperature for the TC1 thermocouple as long as the other TC’s do not reach the control/protection temperature limit. - Page 9 Work Mode w w w.jbctools.com Temperature Mode: This function allows you to set a maximum value for the temperature increase per second when heating. Select Temp. mode from the Work mode menu. In this mode the heater unit maintains the selected temperature for the TC1 thermocouple as long as the other TC’s do not reach the control/protection The maximum heating rate value can be set between 0.1ºC/s and 2.0ºC/s (2) or “None”...
- Page 10 Profile Modes Select Profile Mode from the Work Mode Menu. In this mode the heater unit regulates the temperature of the TC1 thermocouple according to the selected profile as long as the other TCs do not reach the control/protection temperature limit. 14:15 PROFILE1 Stop...
-
Page 11: Profile Editor
JBC Set Profiles There are 3 profiles predefined by JBC: A, B and C. The difference between them is the number of steps: 2, 3 or 4. The thicker your PCB is and the more layers it contains, the more steps are needed to obtain a gradual warming. -
Page 12: Process Analysis
Process Analysis By pressing Graphics in the main MENU, temperature of TC1 thermocouple and power fi gures in real time are displayed. Graphics 14:15 Power (%) Temperature (ºC) Power [%] Ext. Temp [ºC] Switch Y Axis Between Power and Temperature System Notifications The following icons will be displayed on the screen’s status bar. - Page 13 Insert a USB flash drive into the USB-A connector to export / import profiles. Update the Station Software 1. Download the JBC Update File from 2. Insert the USB flash drive to the console. www.jbctools.com/software.html and save The icon is diplayed while updating.
-
Page 14: Also Available
Also Available JBCs XL Pre Heater Set (PHXLEK) comes with both, XL Pre Heater (PHXLE) and XL PCB Support (PHXLS). This is a complete system for preheating big-sized PCBAs such as communications boards, airpla- nes and for repetitive soldering jobs. -
Page 15: Maintenance
- Only if it is absolutely necessary and if cleaning with isopropyl alcohol (IPA) is not enough, it is recommended to use a scraper to remove dirt in the glass area. - Replace any defective or damaged parts. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service. - Page 16 Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the units for any purpose other than PCB preheating. Incorrect use may cause fire. - The mains cable must be plugged into approved bases. Make sure that it is properly grounded before use.
- Page 17 w w w.jbctools.com Notes...
- Page 18 Notes...
-
Page 19: Specifications
Specifications PHXLE XL Preheater Ref.: PHXLE-9A 100V. Input 100/200V. 50/60Hz. Fuse T20A Ref.: PHXLE-1A 120V. Input 120/208V. 50/60Hz. Fuse T20A Ref.: PHXLE-2A 230V. Input 230/400V. 50/60Hz. Fuse T10A - Maximum Power: 5400W - Heating Areas (L x W): 6 areas, each 255 x 203 mm / 10.04 x 8.07 in... - Page 20 In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. This product should not be thrown in the garbage.
