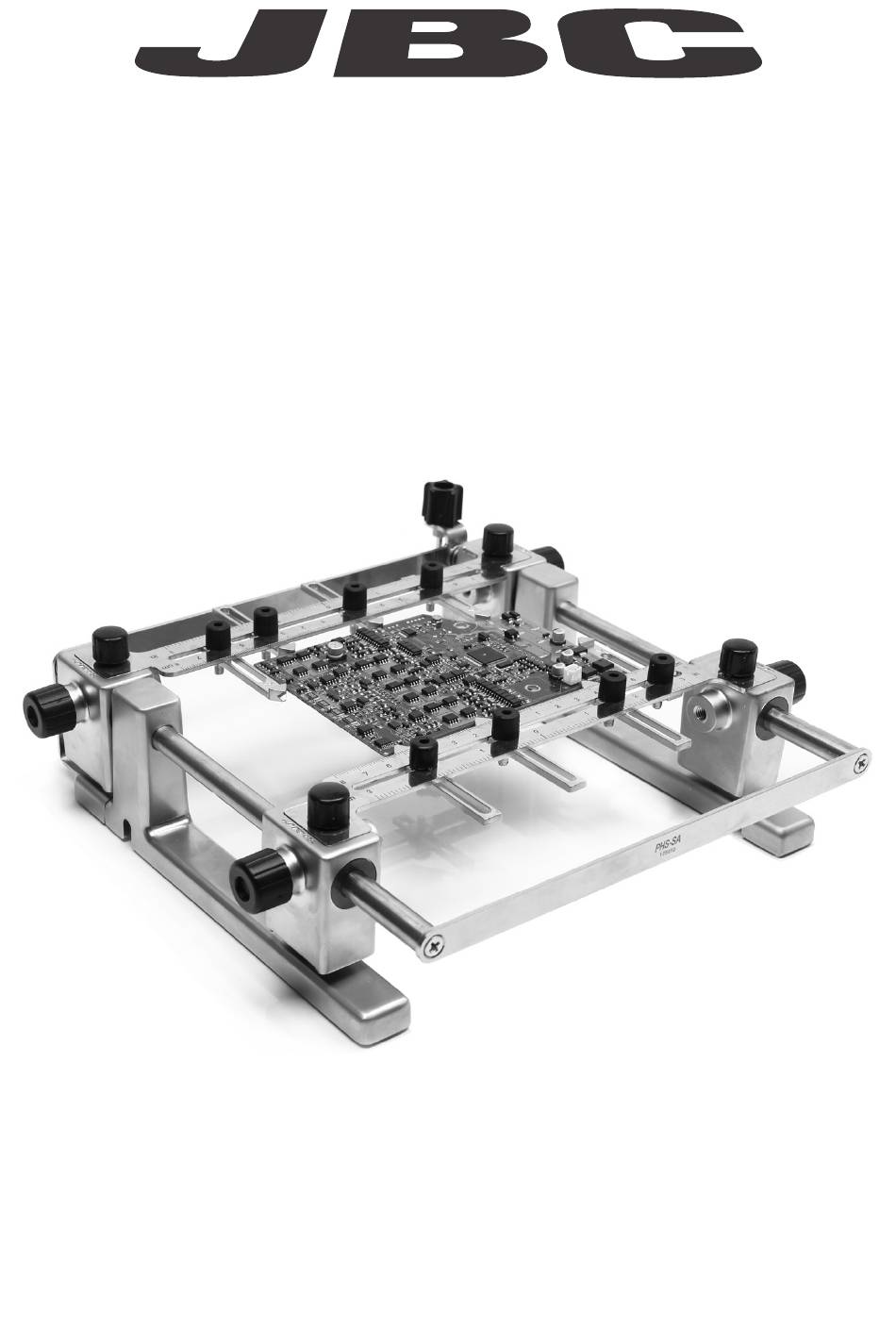

- Page 1 IR Preheater Support Ref. PHS-SA...
-
Page 2: Packing List
Packing List The following items should be included: IR Preheater Support ..........................1 unit Ref. PHS-SA Allen key ............. 1 unit Manual ............1 unit Ref. 0013754 Ref. 0017154 w w w.jbctools.com IR Preheater Support Ref. PHS-SA... - Page 3 Features Slot clamps For fixing irregular shaped PCBs to the support. ESD safe connector For fixing identical PCBs in the same position. Allen key Spring guide Sliding guide Rubber caps Clamp knobs Heater Unit...
- Page 4 Height Adjustment It allows adjustment for 3 heights between the PCB and the Heating Area of the PHS-B Heater Unit. Low level 28mm For PCBs of 0.8 - 2.4mm thick Remove these knobs if necessary 50mm Medium level For PCBs of 2.4 - 6mm thick High level 70mm For PCBs over 6mm thick...
- Page 5 Changing PCBs of the same batch The support lets you place PCBs of the same batch so as to always heat the same area. Use the sliding guides to change the PCBs. Removing the PCB Placing another PCB After loosening the SP guide knobs, push the Push the PCB against the SP guide, position it PCB against the SP guide and lift out.
- Page 6 - Check periodically that the support is clean, especially the axes of the sliding guide. - Replace any defective or damaged piece. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service. Axes of the sliding guide Safety It is imperative to follow safety guidelines to protect health and prevent electric shock, injury, fire or explosions.
- Page 7 Exploded View...
-
Page 8: Specifications
267 x 259 x 96 mm (10.5 x 10.2 x 3.8 in) Complies with CE standards. ESD protected housing. Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse.
