Summary of Contents for Award AFEC1500

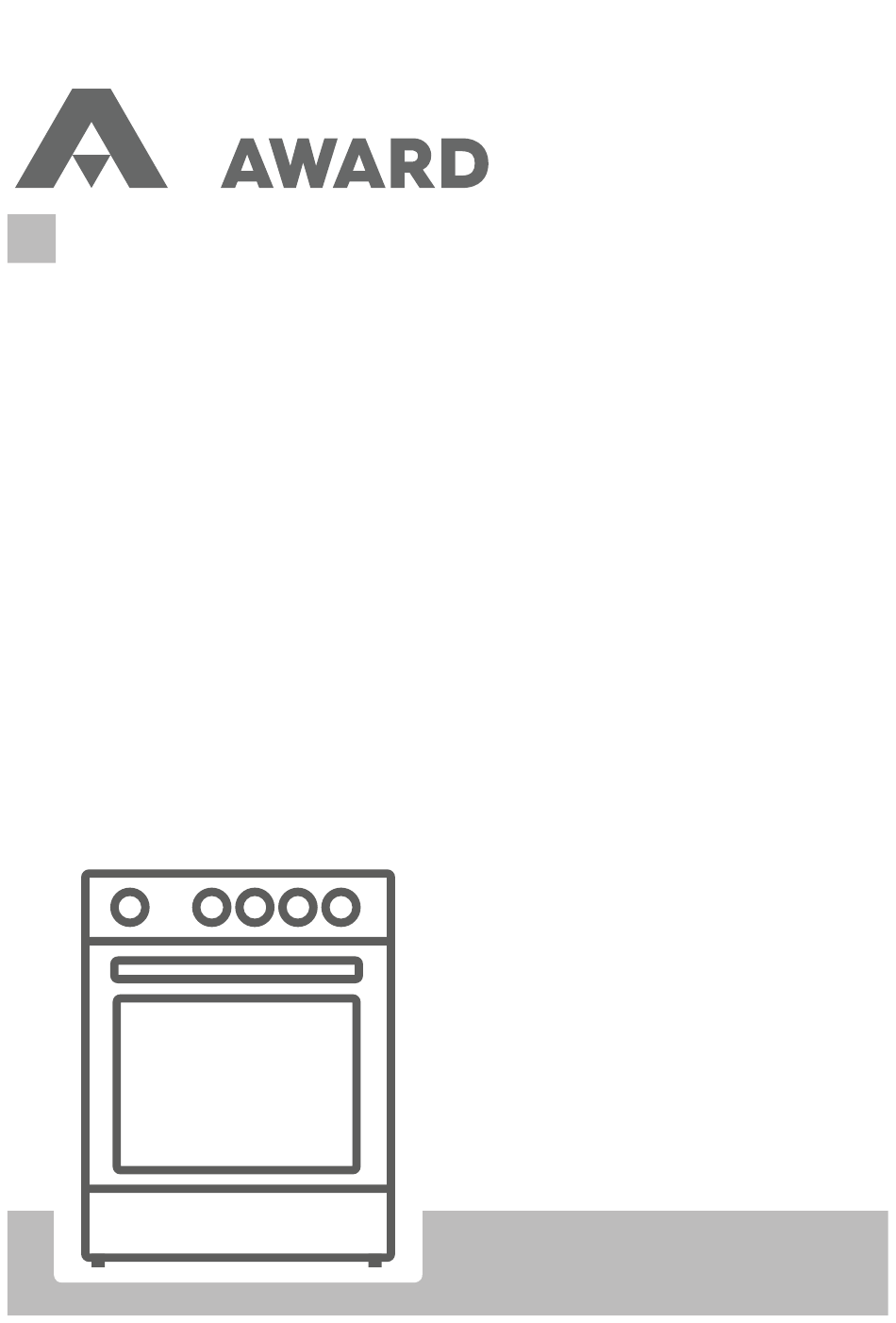

- Page 1 Free Standing Cooker / User Manual AFEC1500...
- Page 2 Thank you for choosing this product. This User Manual contains important safety information and instructions on the operation and maintenance of your appliance. Please take the time to read this User Manual before using your appliance and keep this book for future reference. Icon Type Meaning...
-
Page 3: Table Of Contents
CONTENTS 1.SAFETY INSTRUCTIONS ....................4 1.1 General Safety Warnings ....................4 1.2 Installation Warnings ......................7 1.3 During Use ........................7 1.4 During Cleaning and Maintenance .................9 2.INSTALLATION AND PREPARATION FOR USE ............10 2.1 Instructions for the Installer ..................10 2.2 Electrical Connection and Safety.................. 11 2.3 Anti-tilting kit .........................12 2.4 Adjusting the feet ......................12 3.PRODUCT FEATURES ....................13... -
Page 4: Safety Instructions
1. SAFETY INSTRUCTIONS • Carefully read all instructions before using your appliance and keep them in a convenient place for reference when necessary. • This manual has been prepared for more than one model therefore your appliance may not have some of the features described within. - Page 5 WARNING: Danger of fire: Do not store items on the cooking surfaces. WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock. • For models which incorporate a hob lid, clean any spillages off the lid before use and allow the cooker to cool before closing the lid.
- Page 6 applicable local and international standards and regulations. • Maintenance and repair work should only be carried out by authorised service technicians. Installation and repair work that is carried out by unauthorised technicians may be dangerous. Do not alter or modify the specifications of the appliance in any way.
-
Page 7: Installation Warnings
appliance. 1.2 Installation Warnings • Do not operate the appliance before it is fully installed. • The appliance must be installed by an authorised technician. The manufacturer is not responsible for any damage that might be caused by incorrect placement and installation by unauthorised people. •... - Page 8 • Take care when opening the oven door during or after cooking. The hot steam from the oven may cause burns. • Do not put flammable or combustible materials in or near the appliance when it is operating. • Always use oven gloves to remove and replace food in the oven.
-
Page 9: During Cleaning And Maintenance
use. Avoid touching the inside surface. • Do not hang towels, dishcloths or clothes from the appliance or its handles. 1.4 During Cleaning and Maintenance • Make sure that your appliance is turned off at the mains before carrying out any cleaning or maintenance operations. -
Page 10: Installation And Preparation For Use
2. INSTALLATION AND PREPARATION FOR USE Installation of the Cooker WARNING : This appliance must be installed by an authorised service person or qualified technician, • If the kitchen cabinetry is higher than the according to the instructions in this guide cooktop, the kitchen cabinetry must be at and in compliance with the current local least 10 cm away from the sides of... -
Page 11: Electrical Connection And Safety
2.2 Electrical Connection and Safety • If the appliance is not connected to the mains with a plug, a multi-pole WARNING: The electrical connection isolator switch (with at least 3 mm of this appliance should be carried out contact spacing) must be used in order by an authorised service person or to meet the safety regulations. -
Page 12: Anti-Tilting Kit
2.3 Anti-tilting kit turn the feet anti-clockwise. To decrease the height of the appliance, turn the feet clockwise. It is possible to raise the height of the appliance up to 30 mm by adjusting the Screw (x1) feet. The appliance is heavy and we recommend that a minimum of 2 people lift Anti-tilting it. -
Page 13: Product Features
3. PRODUCT FEATURES Important: Specifications for the product vary and the appearance of your appliance may differ from that shown in the figures below. List of Components 1. Cooktop 2. Control Panel 3. Oven Door Handle 4. Oven Door 5. Adjustable Feet Control Panel 6. -
Page 14: Use Of Product
4. USE OF PRODUCT decreased or until one of the cooking zones is activated. 4.1 Hob controls Hints and Tips Ceramic Heater Important: When ceramic heaters are The ceramic heater is controlled by a 6 operated in higher heat settings, the position knob. -
Page 15: Oven Controls
well away from the hob during operation Static Cooking and until it has fully cooled after Function: The oven’s operation. thermostat and warning lights will • If you notice a crack on the cooktop, switch on, and the it must be switched off immediately lower and upper and replaced by authorised service heating elements will... - Page 16 Faster Grilling Function: The oven’s thermostat and warning lights will switch on, and the grill and upper heating elements will start operating. This function is used for faster grilling and for grilling food with a larger surface area, such as meat. Use the upper shelves of the oven.
-
Page 17: Cleaning And Maintenance
WARNING Place the grid to any corresponding rack in the oven cavity correctly and push it to the end. The Wire Grid for Deep Trays Make sure the wire grid is correctly placed within a deep tray. It is recommended to use this accessory for grilling steaks, meatballs and similar food. - Page 18 clean the oven. • Clean the glass parts of your appliance on a regular basis. • Use a glass cleaner to clean the inside and outside of the glass parts. Then, rinse and dry them thoroughly with a dry cloth. Cleaning the Enamelled Parts •...
-
Page 19: Maintenance
The lamp is designed specifically for use in household cooking appliances. It is not suitable for household room illumination. 3. Close the door until it almost reaches the fully closed position and remove the door by pulling it towards you. Removal of the Wire Shelf To remove the wire rack, pull the wire rack as shown in the figure. -
Page 20: Troubleshooting&Transport
6. TROUBLESHOOTING&TRANSPORT 6.1 Troubleshooting If you still have a problem with your appliance after checking these basic troubleshooting steps, please contact an authorised service person or qualified technician. Problem Possible Cause Solution Check the household fuse for the appliance. The hob or cooking zones There is no power supply. - Page 21 Award Appliances (NZ) Limited Email: sales@award.co.nz 52300186 www.awardappliances.co.nz...
