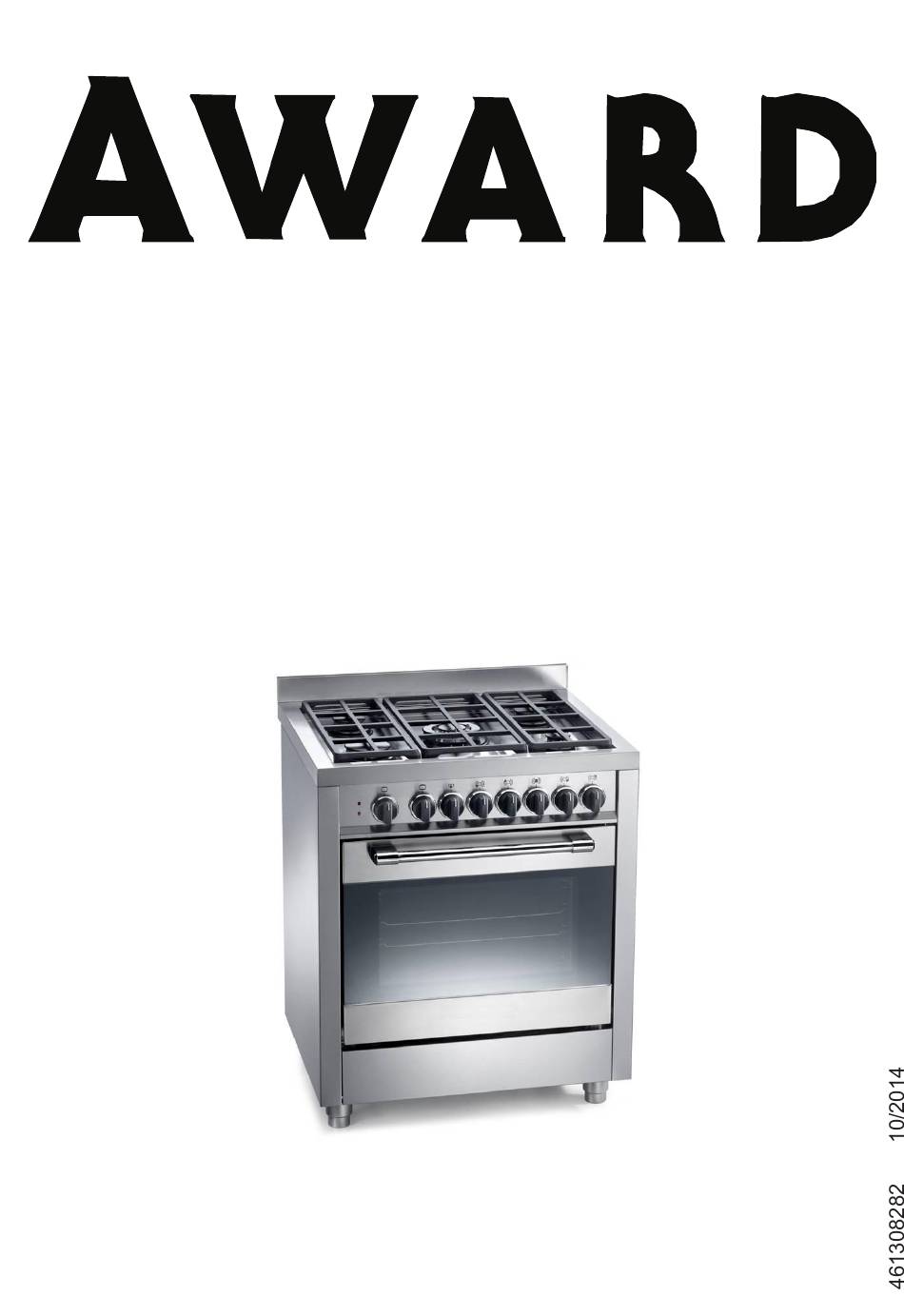

Page 1
INSTRUCTIONS AND ADVICE FOR INSTALLING, USING AND SERVICING OF COOKERS MODEL: A7061S...
Page 2
The appliance was designed and made in accordance with the International standards listed below: =>IEC 60 335-1 and IEC 60 335-2-6 (electrical) plus relative amendments The appliance complies with the prescriptions of the International Directives as below: Electrical safety (BT). Electromagnetic compatibility (EMC) Gas safety.
ASSISTANCE AND SPARE PARTS Before this appliance left the factory it was tested and set by specialized, expert personnel in order to guarantee the best functioning results. Any subsequent repairs or adjustments that may be necessary must be done with the maximum of care and attention by authorised personnel.For this reason we recommend you always contact us (refer below), specifying the brand, model, serial number and type of problem you are having with it.
IMPORTANT NOTES AND PRECAUTIONS FOR USE removed from the outer surfaces and You have purchased one of our the various inner parts, thoroughly products for which we thank you. We check that the appliance is in perfect are confident that this new appliance, condition.
Page 5
IMPORTANT NOTES AND PRECAUTIONS FOR USE installation.. WARNING - Accessible parts may • Before cooking for the first time, become hot during use. To avoid ensure the oven is empty and its door burns young children should be kept closed, heat the oven at maximum away.
Page 6
IMPORTANT NOTES AND PRECAUTIONS FOR USE • The appliance is not intended to be • In the case of a failure or malfunction, operated by means of an external turn the appliance off and switch off timer or separate remote-control the electrical supply and do not tamper system with it.
DESCRIPTION OF THE APPLIANCE The oven walls are fitted with various guide bars or PRESENTATION runners (fig. 1) on which the following accessories can Our cooker is fitted with a fully gas hotplate. This be placed. Supply and quantities vary from model innovative burner hotplate offers you more scope and to model (fig.
Page 8
DESCRIPTION OF THE APPLIANCE DESCRIPTION OF THE APPLIANCE DESCRIPTION OF THE CONTROLS RED WARNING LIGHT When lit it indicates that the electric grill or one of the HOB GAS BURNER KNOB (A) oven electric components is on. By rotating the knob the following symbols appear: YELLOW WARNING LIGHT = Closed position When lit it indicates that either the electric oven or...
INSTRUCTIONS FOR THE USER HOB: GENERAL NOTES ON SAFETY ABNORMAL OPERATION Any of the following are considered to be abnormal • When using the burners, do not leave the appliance unsupervised. Ensure that children and the infirm operation and may require servicing: do not play with the appliance.
Page 10
INSTRUCTIONS FOR THE USER OVEN: GENERAL SAFETY INSTRUCTIONS • Do not leave the oven unsupervised during use. Ensure that children and the infirm do not play with the appliance. • Do not spray aerosols in the vicinity of this appliance while it is operating.
Page 11
INSTRUCTIONS FOR THE USER HOW TO USE THE MULTIFUNCTION OVEN CONVETIONAL GRILL COOKING Turn the selector knob to the symbol and adjust the DEFROSTING AT ROOM TEMPERATURE thermostat knob to the desired temperature. Turn the selector knob to the symbol and place the Selecting this function the top central heating element food you want to defrost inside the oven.
Page 12
INSTRUCTIONS FOR THE USER COOKING / BAKING TIMETABLE COOKING BY COOKING BY Position of the NATURAL CONVECTION FORCED CONVECTION Weight FOODS oven shelf from the Temperature Cooking Time Temperature Cooking Time bottom in °C in min in °C in min MEAT Roast veal 200-225...
Page 13
INSTRUCTIONS FOR THE USER USING THE GRILL • The grill is located in the top of the oven and makes for an extremely versatile and controllable method of cooking. • Preheat the grill for a few minutes for quicker cooking and more succulent results. Preferably add seasonings after cooking is completed •...
Page 14
INSTRUCTIONS FOR THE USER USEFUL COOKING TIPS Meat: • If, when cooking meat, the time needed is more than 40 minutes, turn the oven off 10 minutes Cakes and bread: before the end of cooking time to exploit the • Heat the oven for at least 15 minutes before you residual heat (energy saving).
Page 15
INSTRUCTIONS FOR THE USER CLEANING AND MAINTENANCE STRUCTURE All the cooker parts (in enamelled or painted metal, • Prior to any maintenance work or cleaning, steel, or glass) should be cleaned frequently with warm disconnect the appliance from the electricity soapy water and then rinsed and dried with a soft cloth.
INSTRUCTIONS FOR THE USER OVEN SIDEWALL GRIDS (fig. 10) REPLACING THE OVEN LAMP (fig. 13) To allow for a better cleaning of the side grids, you can Ensure the appliance is switched off before extract them this way: replacing the lamp to avoid the possibility of 1.
TROUBLESHOOTING Some problems can be caused either as the results of simple maintenance operations or by incor- rect selection of settings. Prior to contacting a Service Centre please check the following chart. PROBLEM REMEDY The appliance is not working • Make sure the gas cock is open •...
INSTRUCTIONS FOR THE INSTALLER TECHNICAL INFORMATION • The installation, adjustments, conversions and maintenance operations listed in this part must only be carried out by qualified personnel. The manufacturer cannot be held responsible for any damage to persons or property resulting from an incorrect installation of the appliance.
Page 19
INSTRUCTIONS FOR THE INSTALLER VENTILATION LOCATION AND AERATION The room where the appliance is installed should be Gas cookers must always discharge combustion no less than 20 m³. products and moisture through hoods connected to The quantity of air necessary is that required for a flues or directly to the outside (fig.
Page 20
INSTRUCTIONS FOR THE INSTALLER SECURING COOKER WALL THE CUPBOARD WITH TWO SCREWS ON EACH SAFETY CHAIN. Note:- The installation of the chain provided PLEASE TEST THAT THE COOKER DOES NOT is for safety reasons, it must be installed as TILT FORWARD indicated below.
Page 21
INSTRUCTIONS FOR THE INSTALLER INSTRUCTIONS FOR THE INSTALLER GAS CONNECTION • with a copper pipe in accordance with the standard, whose joints must be made using sealed fittings in Before connecting the appliance check that the accordance with the standard. data on the rating plate affixed to the cooker, •...
Page 22
INSTRUCTIONS FOR THE INSTALLER ELECTRICAL CONNECTION CONNECTING THE POWER CABLE The combi cookers leave the factory ready for single- The electrical connection must be carried out in phase power, but they can, with due modifications, be accordance with the current standards and laws in powered by three phase systems by following these force.
Page 23
INSTRUCTIONS FOR THE INSTALLER ADJUSTMENTS • Always disconnect the appliance from the electricity supply before making any adjustment. • All seals must be replaced by the technician following any adjustment or regulation. • The adjustment of the reduce rate (simmer) must be undertaken only with burners functioning on natural gas while in the case of...
INSTRUCTIONS FOR THE INSTALLER MAINTENANCE CHANGING THE FLEXIBLE GAS HOSE In order to guarantee that the gas hose is always in Prior to any maintenance work or changing excellent condition we strongly recommend changing parts, disconnect the appliance from the gas it on the date you will find printed on it.
TECHNICAL FEATURES BURNER DISPOSITION BURNER DISPOSITION AND HOB BURNER TECHNICAL DATA TABLE Diameter Burners Operating pressure gas Rate injector Heat input By-pass Sabaf DENOMINATION mbar 1/100 mm 1/100 mm G30 - Butano 28-30 1600 3250 5 Ultrarapid G31 - Propano 1600 3250 G20 - Naturale...
Page 26
TECHNICAL FEATURES ELECTRICAL COMPONENTS DESCRIPTION Lower heating element of the oven 800+170 W Top heating element of the oven-grill 800+1800 W Rear heating element 2000 W Oven lamp 15 W - E 14 - T 300 Fan of the rear heating element 25..29 W Spit motor Supply cable...
