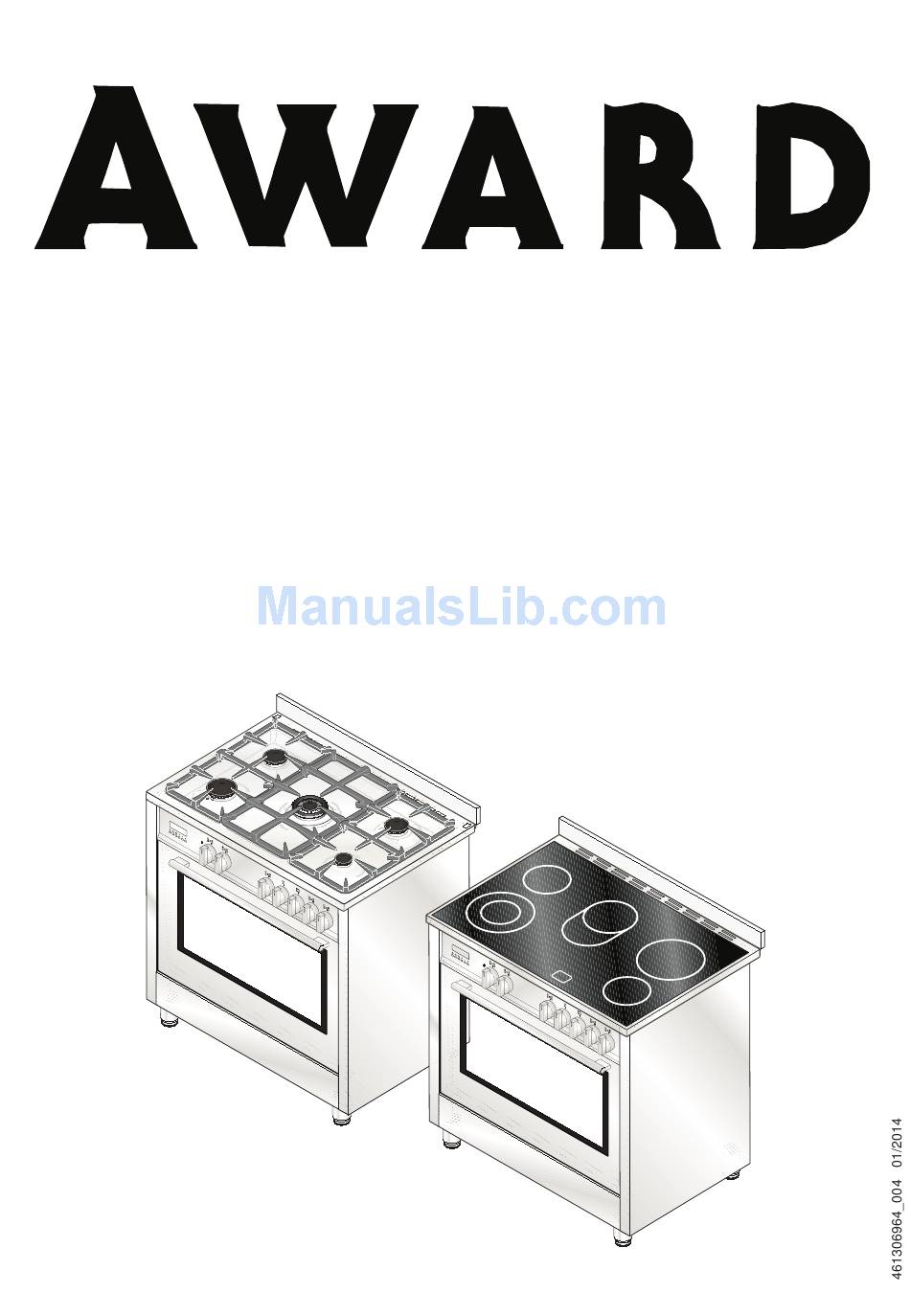

- Page 1 INSTRUCTIONS AND ADVICE FOR INSTALLING, USING AND SERVICING OF COOKERS MODEL: A9061XT A9061BL A9061C...
- Page 2 The appliance was designed and made in accordance with the European standards listed below: => EN 60 335-1 and EN 60 335-2-6 (electrical) plus relative amendments The appliance complies with the prescriptions of the European Directives as below: => 2006/95 EC concerning electrical safety (BT). =>...
-
Page 3: Table Of Contents
ASSISTANCE AND SPARE PARTS Before this appliance left the factory it was tested and fine-tuned by specialised expert personnel in order to guarantee its best functioning results. Any subsequent repairs or adjustments that may be necessary must be done with the maximum of care and attention by qualified personnel. -
Page 4: Important Notes And Precautions For Use
IMPORTANT NOTES AND PRECAUTIONS FOR USE removed from the outer surfaces and You have purchased one of our the various inner parts, thoroughly products for which we thank you. We check that the appliance is in perfect are confident that this new appliance, condition. - Page 5 IMPORTANT NOTES AND PRECAUTIONS FOR USE • The oven door glass and the the interior of the oven to be burnt accessible parts will become hot off and dissipate the associated when in use. To avoid burns and smells. Ensure adequate ventilation scalds young children should be in the kitchen whilst burning off and kept away.
- Page 6 IMPORTANT NOTES AND PRECAUTIONS FOR USE • The appliance is not intended to be • Switch off the electrical supply before operated by means of an external you start cleaning or servicing the timer or separate remote-control appliance. system • In the case of a failure or malfunction, •...
-
Page 7: Description Of The Appliance
DESCRIPTION OF THE APPLIANCE PRESENTATION There are 2 different hobs that can be used on our cookers: all gas and all electrical (with heating elements in ceramic glass). Each knob on the front panel has a diagram printed above it showing to which burner or heating element it refers. - Page 8 DESCRIPTION OF THE APPLIANCE DESCRIPTION OF THE CONTROLS ENERGY REGULATOR KNOB (A) By turning the knob to the right or to the left we find the following symbols: = heating elements off from 1 to 12 = minimum and maximum power ENERGY REGULATOR KNOB (B) By turning the knob to the right we find the following symbols:...
- Page 9 DESCRIPTION OF THE APPLIANCE ELECTRONIC PROGRAMMER "TOUCH" Setting the time. After connecting to mains or after a power cut, symbol “A” and “0,00” will both flash simultaneously on the display. Keep pressed for some seconds simultaneously + and - buttons or just MODE button, till when symbol “A” turn off and symbol turn on.
-
Page 10: Instructions For The User
INSTRUCTIONS FOR THE USER heat onto the hotplate and surrounding surfaces. GENERAL NOTES ON SAFETY • When the boiling point is reached, it is best to turn • When the heating elements are in use do not leave the knob to the “Reduced rate position” (small them unattended and make sure there are no small flame). - Page 11 INSTRUCTIONS FOR THE USER GENERAL INFORMATION AND INSTRUCTIONS SWITCHING THE HEATING ELEMENTS FOR USING CERAMIC GLASS HOBS The cooking zones are clearly visible on the hob, • Ceramic glass is a natural product and, like any being circular. other material in ceramic, can have an uneven Only the inside of the circles traced on the glass is surface.
- Page 12 INSTRUCTIONS FOR THE USER HOW TO SAVE ELECTRICITY (fig. 6) To get the maximum yield with the minimum consumption of electricity it is recommended to keep the following points in mind: • Switch the hob heating element on only after you have put the pan on the cooking zone or plate •...
- Page 13 INSTRUCTIONS FOR THE USER OVEN: GENERAL SAFETY INSTRUCTIONS WHAT TO DO THE FIRST TIME YOU USE THE OVEN • Do not leave the oven unsupervised during use. If the appliance has a programming accessory, Ensure that children and the infirm do not play with place it on the manual position, and, before cooking the appliance.
- Page 14 INSTRUCTIONS FOR THE USER HOW TO USE THE MULTIFUNCTION OVEN REAR HEATING COMBINED COOKING DEFROSTING AT ROOM TEMPERATURE Turn the selector knob to the symbol and set the Turn the selector knob to the symbol and place the thermostat to the desired temperature, then place food you want to defrost inside the oven.
- Page 15 INSTRUCTIONS FOR THE USER USEFUL COOKING TIPS Meat: • If, when cooking meat, the time needed is more than 40 minutes, turn the oven off 10 minutes Cakes and bread: before the end of cooking time to exploit the • Heat the oven for at least 15 minutes before you residual heat (energy saving).
- Page 16 INSTRUCTIONS FOR THE USER COOKING / BAKING TIMETABLE COOKING BY COOKING BY Position of Weight NATURAL CONVECTION FORCED CONVECTION (WITH FAN) the oven FOODS shelf from the Temperature Cooking Time Temperature Cooking Time bottom in °C in minutes in °C in minutes MEAT Roast veal...
- Page 17 INSTRUCTIONS FOR THE USER caps, are correctly positioned in their housings (fig. 8). CLEANING AND MAINTENANCE • Take care not to disturb the ignition spark plugs or flame failure devices. • Prior to any maintenance work or cleaning, • If you find a tap is difficult to open or close do not disconnect the appliance from the electricity force it but call for technical assistance urgently.
- Page 18 INSTRUCTIONS FOR THE USER OVEN CAVITY SELF-CLEANING PANELS Oven walls are protected by panels coated with a Do not spray or wash the thermostat bulb with grease-proof, microporous enamel that absorbs and acid based products (check the product label eliminates splattering during baking. before use).
- Page 19 INSTRUCTIONS FOR THE USER OVEN DOOR REMOVAL The oven door can be removed to give easier access to the oven when cleaning. To remove, proceed as follows: • Open the oven door and insert rivet or nail (R) in the hole (fig.14) of the hinge.•...
-
Page 20: Troubleshooting
TROUBLESHOOTING Some of the problems occur because of simple maintenance oversights or operation mistakes and can easily be resolved without having to call for technical assistance. PROBLEM REMEDY The appliance is not working • Make sure the gas cock is open •... - Page 21 TECHNICAL FEATURES ELECTRIC COMPONENTS Description Nominal data 1200 W A - hi-light radiant heating element 2200 W B - hi-light radiant heating element 120/210 700 + 1400 W C - hi-light double radiant heating element 170/265 800 + 1400 W D - hi-light double oval radiant heating element Lower heating element of the oven 2100 W...
-
Page 22: Instructions For The User
INSTRUCTIONS FOR THE INSTALLER TECHNICAL INFORMATION • The installation, adjustments, conversions and maintenance operations listed in this part must only be carried out by qualified personnel. The manufacturer cannot be held responsible for any damage to persons or property resulting from an 150 mm 150 mm incorrect installation of the appliance. - Page 23 INSTRUCTIONS FOR THE INSTALLER LOCATION AND AERATION Gas cookers must always discharge the products of combustion and the moisture through hoods connected to flues or directly to the outside (fig. 20). If it is impossible to use a hood, a fan installed on the window or wall, facing the outside, is allowed and should be switched on each time the appliance is used (fig.
- Page 24 INSTRUCTIONS FOR THE INSTALLER SECURING THE COOKER TO WALL Note:- The installation of the chain provided is for safety reasons, it must be installed as indicated below. To prevent the cooker tipping forwards in the event of children standing on the oven door or where users put extreme weight on the door when in open position, two chains MUST BE fixed to the back of the oven which should at all times be secured to the threaded pins .
- Page 25 INSTRUCTIONS FOR THE INSTALLER GAS CONNECTION • with a copper pipe in accordance with the standard, whose joints must be made using sealed fittings in Before connecting the appliance check that the accordance with the standard. data on the rating plate affixed to the cooker, •...
- Page 26 INSTRUCTIONS FOR THE INSTALLER ELECTRICAL CONNECTION The electrical connection must be carried out in accordance with the current standards and laws in force. WARNING: IF THE SUPPLY CORD IS DAMAGED, IT MUST BE REPLACED BY THE MANUFACTURER, ITS SERVICE AGENT OR SIMILARLY QUALIFIED PERSONS IN ORDER TO AVOID A HAZARD.
- Page 27 INSTRUCTIONS FOR THE INSTALLER ADJUSTMENTS CONVERSIONS REPLACING THE INJECTORS • Always disconnect the appliance from the Our burners can be adapted to different types of gas electricity supply before making any adjustment. by simply installing the injectors suitable for the gas •...
- Page 28 INSTRUCTIONS FOR THE INSTALLER MAINTENANCE Prior to any maintenance work or changing parts, disconnect the appliance from the gas and electricity power sources. REPLACING THE TAPS Proceed in the following way when replacing a tap: • Remove pan supports, burner heads. •...
- Page 29 INSTRUCTIONS FOR THE INSTALLER CHANGING THE FLEXIBLE GAS HOSE In order to guarantee that the gas hose is always in excellent condition we strongly recommend changing it on the date you will find printed on it. REPLACING THE ELECTRICAL COMPONENTS •...
- Page 32 SPACE FOR DATA LABEL...
