Summary of Contents for Award AFEE133/1

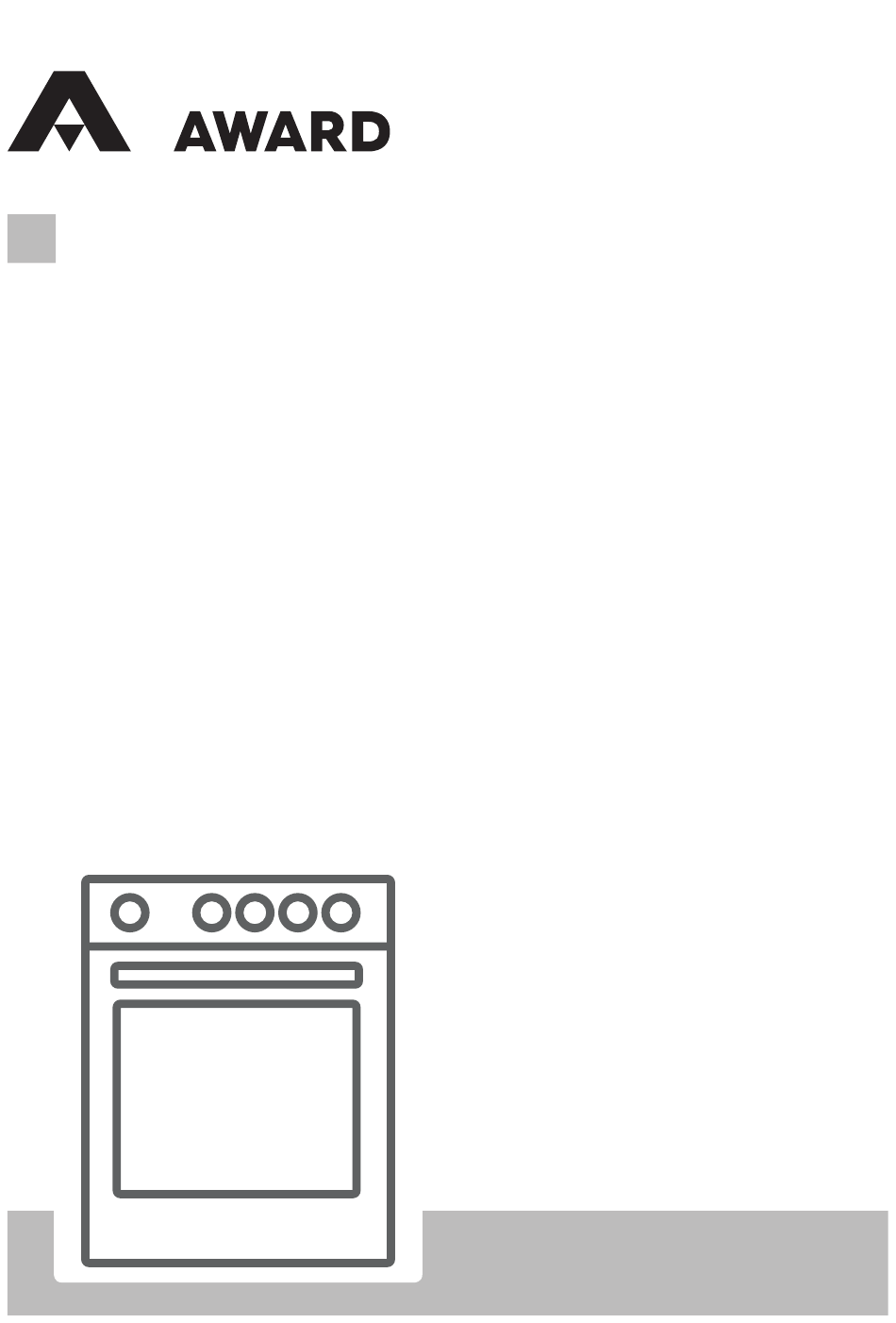

- Page 1 Free Standing Cooker / User Manual AFEE133/1...
- Page 2 Thank you for choosing this product. This User Manual contains important safety information and instructions on the operation and maintenance of your appliance. Please take the time to read this User Manual before using your appliance and keep this book for future reference. Icon Type Meaning...
-
Page 3: Table Of Contents
CONTENTS 1.SAFETY INSTRUCTIONS ....................4 1.1 General Safety Warnings ....................4 1.2 Installation Warnings ......................7 1.3 During Use ........................7 1.4 During Cleaning and Maintenance .................9 2.INSTALLATION AND PREPARATION FOR USE ............10 2.1 Instructions for the Installer ..................10 2.2 Electrical Connection and Safety.................. 11 2.3 Anti-tilting kit .........................12 2.4 Adjusting the feet ......................12 3.PRODUCT FEATURES ....................13... -
Page 4: Safety Instructions
1. SAFETY INSTRUCTIONS • Carefully read all instructions before using your appliance and keep them in a convenient place for reference when necessary. • This manual has been prepared for more than one model therefore your appliance may not have some of the features described within. - Page 5 WARNING: Danger of fire: Do not store items on the cooking surfaces. WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock. • For models which incorporate a hob lid, clean any spillages off the lid before use and allow the cooker to cool before closing the lid.
- Page 6 applicable local and international standards and regulations. • Maintenance and repair work should only be carried out by authorised service technicians. Installation and repair work that is carried out by unauthorised technicians may be dangerous. Do not alter or modify the specifications of the appliance in any way.
-
Page 7: Installation Warnings
appliance. 1.2 Installation Warnings • Do not operate the appliance before it is fully installed. • The appliance must be installed by an authorised technician. The manufacturer is not responsible for any damage that might be caused by incorrect placement and installation by unauthorised people. •... - Page 8 • Take care when opening the oven door during or after cooking. The hot steam from the oven may cause burns. • Do not put flammable or combustible materials in or near the appliance when it is operating. • Always use oven gloves to remove and replace food in the oven.
-
Page 9: During Cleaning And Maintenance
use. Avoid touching the inside surface. • Do not hang towels, dishcloths or clothes from the appliance or its handles. 1.4 During Cleaning and Maintenance • Make sure that your appliance is turned off at the mains before carrying out any cleaning or maintenance operations. -
Page 10: Installation And Preparation For Use
2. INSTALLATION AND • If the cabinet is higher than the cooktop, the kitchen furniture must be at least 10 PREPARATION FOR USE cm away from the sides of appliance for WARNING : This appliance must be air circulation. installed by an authorised service •... -
Page 11: Electrical Connection And Safety
2.2 Electrical Connection and Safety • If the appliance is not connected to the mains with a plug, a all-pole WARNING: The electrical connection disconnector (with at least 3 mm contact of this appliance should be carried out spacing) must be used in order to meet by an authorised service person or the safety regulations. -
Page 12: Anti-Tilting Kit
2.3 Anti-tilting kit sure the appliance is level prior to cooking. To increase the height of the appliance, turn the feet anti-clockwise. To decrease the height of the appliance, turn the feet clockwise. Screw (x1) It is possible to raise the height of the appliance up to 30 mm by adjusting the Anti-tilting feet. -
Page 13: Product Features
3. PRODUCT FEATURES Important: Specifications for the product vary and the appearance of your appliance may differ from that shown in the figures below. List of Components 1. Cooktop 2. Control Panel 3. Oven Door Handle 4. Oven Door 5. Adjustable Feet Control Panel 6. -
Page 14: Use Of Product
4. USE OF PRODUCT • When a hotplate is in operation, make sure that the pan is centred correctly on it. 4.1 Hob Controls • Never use a pan with a smaller or larger Hotplate diameter than that of the hotplate as this The hotplate is controlled by a knob with 6 will waste energy. - Page 15 Oven Functions Lower Heating and Fan Function: The Oven Lamp: Only the oven’s thermostat and oven light will switch warning lights will on. It will remain on for switch on, and the the duration of the lower heating element cooking function. and fan will start operating.
-
Page 16: Accessories
faster grilling of thicker food and for grilling Do not store any food, plastic or flammable of food with a larger surface area. Both the materials in the drawer. upper heating elements and grill will be energised along with the fan to ensure even cooking. - Page 17 Do not leave vinegar, coffee, milk, salt, which do not contain particles. Do not use caustic (corrosive) creams, abrasive water, lemon or tomato juice on the cleaning powders, rough wire wool or enamel for a long time. hard tools as they may damage the Cleaning the Stainless Steel Parts (if cooker surfaces.
-
Page 18: Maintenance
5.2 Maintenance WARNING: The maintenance of this appliance should be carried out by an authorised service person or qualified technician only. Changing the Oven Lamp WARNING: Switch off the appliance and allow it to cool before cleaning your appliance. • Remove the glass lens, then remove the bulb. -
Page 19: Troubleshooting&Transport
6. TROUBLESHOOTING&TRANSPORT 6.1 Troubleshooting If you still have a problem with your appliance after checking these basic troubleshooting steps, please contact an authorised service person or qualified technician. Problem Possible Cause Solution Check the household fuse for the appliance. The hob or cooking zones There is no power supply. - Page 20 Award Appliances (NZ) Limii- ted Email: sales@award.co.nz www.awardappliances.co.nz 52270055...
