- Page 1 EB3A Product Training Authorised Distributor in Dubai For Bluetti products 20230406...
- Page 2 CONTENTS Product Overview PART 01 Operation PART 02 Charging & Discharging PART 03 App Uses PART 04 Tutorial PART 05 Troubleshooting PART 06 FAQs PART 07...
-
Page 3: Product Overview

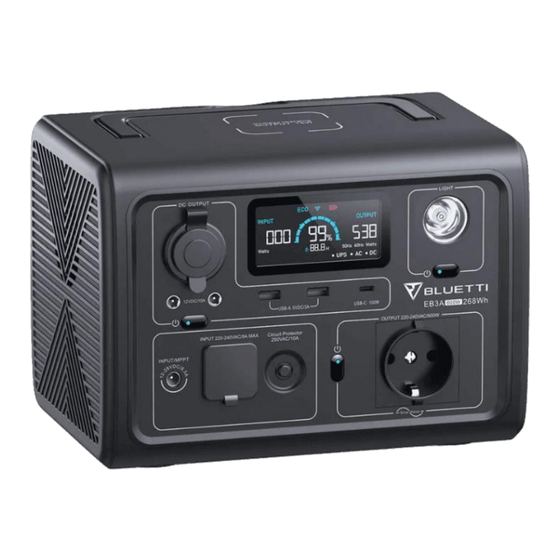

Product Overview BLUETTI EB3A Battery Capacity 268.8Wh(12000mAh)/@22.4V Cell Type LiFePO4 (2500+ Cycles to 80%) Dimensions (L*W*H) 10.04×7.09×7.20in/255×180×183mm Weight 10.14lb/4.6kg Discharging Temperature -4°F~104°F/-20°C~40°C Charging Temperature 32~104°F/0~40°C Working Humidity 10-90% EUROPE Australia USA/JP... - Page 4 Product Overview- Diagram AC Output 100-120V 600W JP/USA Rated power output 220-240V 600W EU/UK/AU/DE Surge 1200W Frequency 50/60Hz±0.3Hz DC Output Port Voltage Current Cigarette Lighter Port *1 12VDC DC5521 *2 12VDC USB-A *2 5VDC USB-C PD3.0 *2 (5V/9V/12V/15V/20VDC, 3A; 20VDC, 5A) Wireless Charging *1 5W/7.5W/10W/15W Max.
- Page 5 1. Fast charging mode: AC+PV, total 430W Max, Single AC Input 340W Max, @10-45C; 2. Standard mode: 268W Max, @10-45C; Connect the EB3A with the AC power and the 'UPS' will be on display. Then Turn-ON 3. Silent mode: 100W Max;...
-
Page 6: Operation- Power
Operation- Power ON/OFF Switch LCD screen: Simply press any button (AC/DC or LED light) , the LCD screen will stay about 30-60 seconds. Power ON: When display “ON” press and hold the AC, DC or LED light Power Button for 1sec to Turn-ON the corresponding output. Green light (on the button) LCD Display Power OFF:... - Page 7 Operation- Setting Entering the Setting Mode: When the AC output power is “OFF” & Display “ON”, Press AC & DC power buttons simultaneously and the frequency indicator flashes. AC Frequency: Under 'Setting Mode', press the AC power button to switch 50/60Hz. ECO Mode: Under 'Setting Mode', press the DC power button to Turn ON/OFF.
- Page 8 1. AC output short circuit, Turn OFF AC; Please disconnect the load to make sure SHORT Output short circuit 2. USB output short-circuit, Turn OFF DC; the output power of loads meet the limit 3. DC12V output short circuit, Turn OFF DC; of the EB3A.
- Page 9 Fan parameter 1. Fan ON ：AC output power > 500W, Fan OFF : AC output power < 450W (10sec Conti..) Inverter temperature >65°C, fan duty cycle 20%, for every 1C increase, duty cycle increases by 5%, Radiator temperature <63°C 2. Fan ON ：PV power >...
- Page 10 Charging 1. AC Charging S i m p l y p l u g t h e i n t o a s t a n d a r d w a l l o u t l e t v i a a d a p t e r a n d s t a r t c h a r g i n g .
- Page 11 Charging 3. Generator Charging C o n n e c t t h e A C a d a p t e r i n p u t p l u g t o t h e g e n e r a t o r w h i l e t h e o u t p u t p l u g g o e s t o t h e a d a p t e r c h a r g i n g p o r t o f E B 7 0 .
-
Page 12: Discharging Time
Discharging time- (Estimated) Di sc h a rgi n g ti me = (Ba tter y Ca pa c i ty) × Do D × η ÷ ( L oa d p o wer +Self consumption) =(2 6 8 W h ) × Do D × η ÷ (Load p o we r+S e l f co n su m p ti o n ) Depth of Discharge, DoD = 80%~90% η... - Page 13 How to use the App- Download & Login BLUETTI app allows you to monitor and control the EB3A in the palm of your hand via Bluetooth, with features like In-time Alarm, Error Message, Data Collection, Operation Status, Parameter Configuration, and Firmware Upgrade.
- Page 14 How to use the App- Connect with EB3A Share Device: Share the QR code with your friends or family to get the access of your EB3A.
- Page 15 4.3 How to use the App- Charging Mode Three charging modes are available in the app: Standard: 268W Max • Silent:100W Max • Turbo: 430W(AC+PV) Max •...
-
Page 16: Tutorial Video
Tutorial video... - Page 17 Tutorial- How to control via APP...
- Page 18 Tutorial- How to charge EB3A...
-
Page 19: Troubleshooting
Check whether the load specification exceeds the EB70 output specification. Please disconnect the load and press the AC power button to rebooting the unit. When the EB3A is without loads, the screen reports short. A: Please return it for repair if the error still exists after rebooting the unit. - Page 20 Troubleshooting Wireless charging doesn't work 1. Confirm whether the mobile phone shows the charging sign. If so, it is normal, there is no charging power display due to the low power. 2. Tur-OFFf the DC and restart the DC, take-OFF the mobile phone cover, adjust the mobile phone up and down to see if it can be charged, if it can be charged, it is the problem of the mobile phone or the mobile phone coil and the wireless board coil is not on.
- Page 21 FAQs Can I charge this EB70 by dual charging? A : N o . Is there a button to turn ON/OFF the wireless charging? A : Y e s , P r e s s t h e D C P o w e r B u t t o n t o e n a b l e t h e w i r e l e s s c h a r g i n g . Can it charge and discharge at the same time? A : Y e s , I t c a n c h a r g e a n d d i s c h a r g e a t t h e s a m e t i m e .
- Page 22 FAQs How do I know whether my devices will work well with this product? A : P l e a s e e v a l u a t e t h e t o t a l c o n s t a n t l o a d o f y o u r a p p l i a n c e s . I f i t d o e s n ' t e x c e e d t h e M a x .
- Page 23 Thank you Authorised Distributor in DubaiFor Bluetti products...
