ASSEMBLY INSTRUCTIONS
ITEM: A302018601
SKU#: 810667033

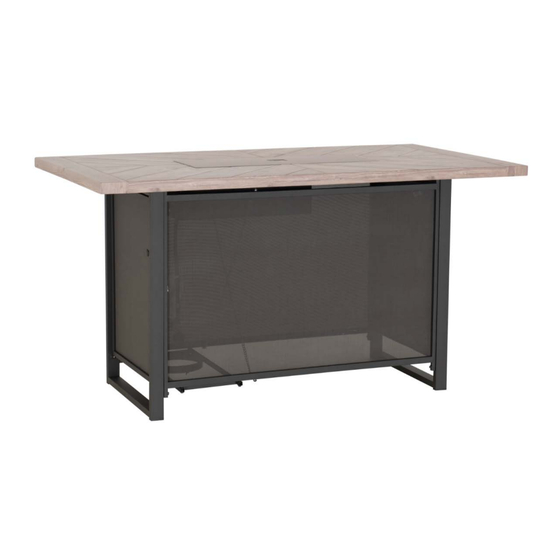

SAN MARINO FIRE PIT
DINING TABLE
Need help? We are here for you!
1(866)578-6569
24/7 • Toll Free
Production number: 2024100255

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SAN MARINO A302018601 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Broyhill SAN MARINO A302018601

Summary of Contents for Broyhill SAN MARINO A302018601

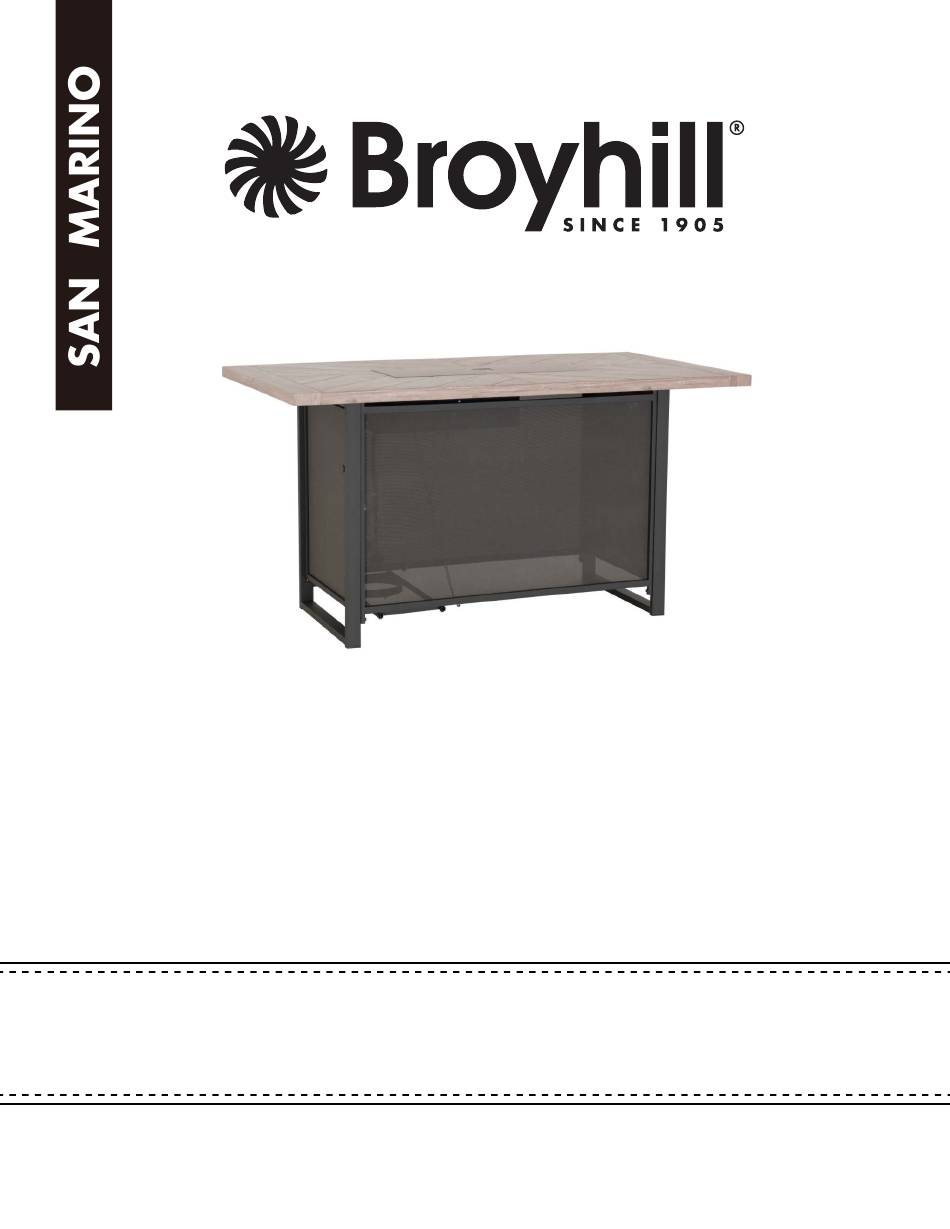

  • Page 1 ASSEMBLY INSTRUCTIONS ITEM: A302018601 SKU#: 810667033 SAN MARINO FIRE PIT DINING TABLE Need help? We are here for you! 1(866)578-6569 24/7 • Toll Free Production number: 2024100255...
  • Page 2 For Outdoor Use Only. WARNING: Leave this manual with the INSTALLER: Installation and service must be performed by a appliance. qualified installer, service agency, or the gas Retain this manual for future CONSUMER: supplier. reference. DANGER FIRE OR EXPLOSION HAZARD If you smell gas: 1.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS General information - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3 Specification - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4 Important safety information and precaution...

  • Page 4: Specification

    SPECIFICATION SAN MARINO FIRE PIT DINING TABLE Product name A302018601 Model NO. Rated Heat Output 38,000 BTU/HR Fuel Propane - LP Gas Supply 20 lb. LP - Gas cylinder Manifold Pressure 11 Inches W.C. Orifice Size (diameter) 1.9mm Gas Supply Pressure Max.
  • Page 5 • Open the door and inspect the hose assembly and burner prior to each use. If there is evidence of excessive abrasion or wear or if the hose or burner is damaged, it must be replaced by appropriate part from the manufacturer. •...

  • Page 6: Expanded View

    EXPLODED DRAWING 6/20...

  • Page 7: Parts List

    PARTS LIST Label Part Number Description Part Image P00310014201 Mesh Cover P00260007501 P00210058201 Table top P00250015901 Bowl Door P00410020901 P00380071501 Side Panel Front Panel P00390017801 Back Panel P00400040201 Cylinder Rack P00670007501 P00220044901 Locking Mechanism Lava rock P00660005301 7/20...
  • Page 8 HARDWARE PACK Label Part Number Description Part Image Bolt M6*15 H010010003 Bolt M6*30 H010010006 Flat washer H050030001 Wrench M6 H090010017 If you want to replace the parts listed, please contact Customer Service Center: 1(866) 578-6569. 8/20...

  • Page 9: Installation

    STEP 1 Caution: the back panel and frone panel shuould be located as below: panel (F) to front Assemble the Side panel (G) and Back panel (J) with bolt (H2) Flat washer (H3), then tighten with wrench (HW). 9/20...
  • Page 10 STEP 2 Assemble the Door (E) with front panel (G) and Back panel (J) with (H2) and flat bolt washer (H3), then tighten with wrench (HW). 10/20...
  • Page 11 STEP 3 Assemble Cylinder rack (K) with front panel (G) and back panel(J) with bolt (H2) and Flat washer (H3), then tighten with wrench (HW). 11/20...
  • Page 12 STEP 4 Assemble Locking mechanism cylinder rack (K) with bolt (H1) and Flat washer (H3), then tighten with wrench (HW). 12/20...
  • Page 13 STEP 5 1 AA 1.5V battery required (not included), the battery need to be inserted before igniton. Assemble Bowl (D) and table top (C), with bolt (H1) and flat washer (H3), then tighten with wrench (HW). 13/20...
  • Page 14 STEP 6 Assemble Side panel (F) with door (E) on table top (C), with bolt (H1) and flat washer (H3), then tighten with wrench (HW). 14/20...
  • Page 15 STEP 7 Pour the Lava rock (M) into the bowl (D), put the mesh cover(B) and lid (A)into the table(C). 15/20...

  • Page 16: Location

    LOCATION Your Gas appliance must be installed on a flat, stable surface, away from any combustible materials or construction. SET - UP Your Gas appliance comes assembled, ready for a Gas connection. 1 - Remove the appliance from container box and place it on any level, outdoor, non-combustible surface.

  • Page 17: Operation

    OPERATION: LEAK TEST !!!WARNING!!! ・ Do not use an open flame to check for leaks. ・ Do not smoke during testing. ・ Do not test indoors. ・ A leak check must be performed whenever the gas cylinder is replaced. 1 - Make sure the control knob is in the “OFF” position. 2 - Make sure the gas cylinder is correctly and securely connected to the pressure regulator, without over tightening.

  • Page 18: Storage And Maintenance

    NOTE: While in use, the burner flame should be mainly blue in appearance with a small amount of yellow. The flame can be identified by the following figure. Warning: Lighting the Fire Pit improperly could lead to an unsafe condition. 7 - Press in and turn the control valve knob clockwise to OFF to shut down fireplace.

  • Page 19: Trouble Shooting

    TROUBLE SHOOTING: PROBLEM OBSERVED POSSIBLE CAUSE CORRECTIVE MEASURES Gas odor Gas leak See “If you smell gas:” on front cover of manual Check all gas connections Delayed ignition Low gas pressure Check gas supply pressure Clean burner ports-see manual Clogged or dirty burner section ports Blocked orifice Check orifice opening...
  • Page 20 PARTS LIST Label Part Number Description Part Image P00260007501 Mesh Cover Note: Remove the lid and put the protective mesh screen over your burner and lava rock when in use! CAUTION: Please be advised that this fire pit table uses natural lava rock that may crackle or pop when it is used.
