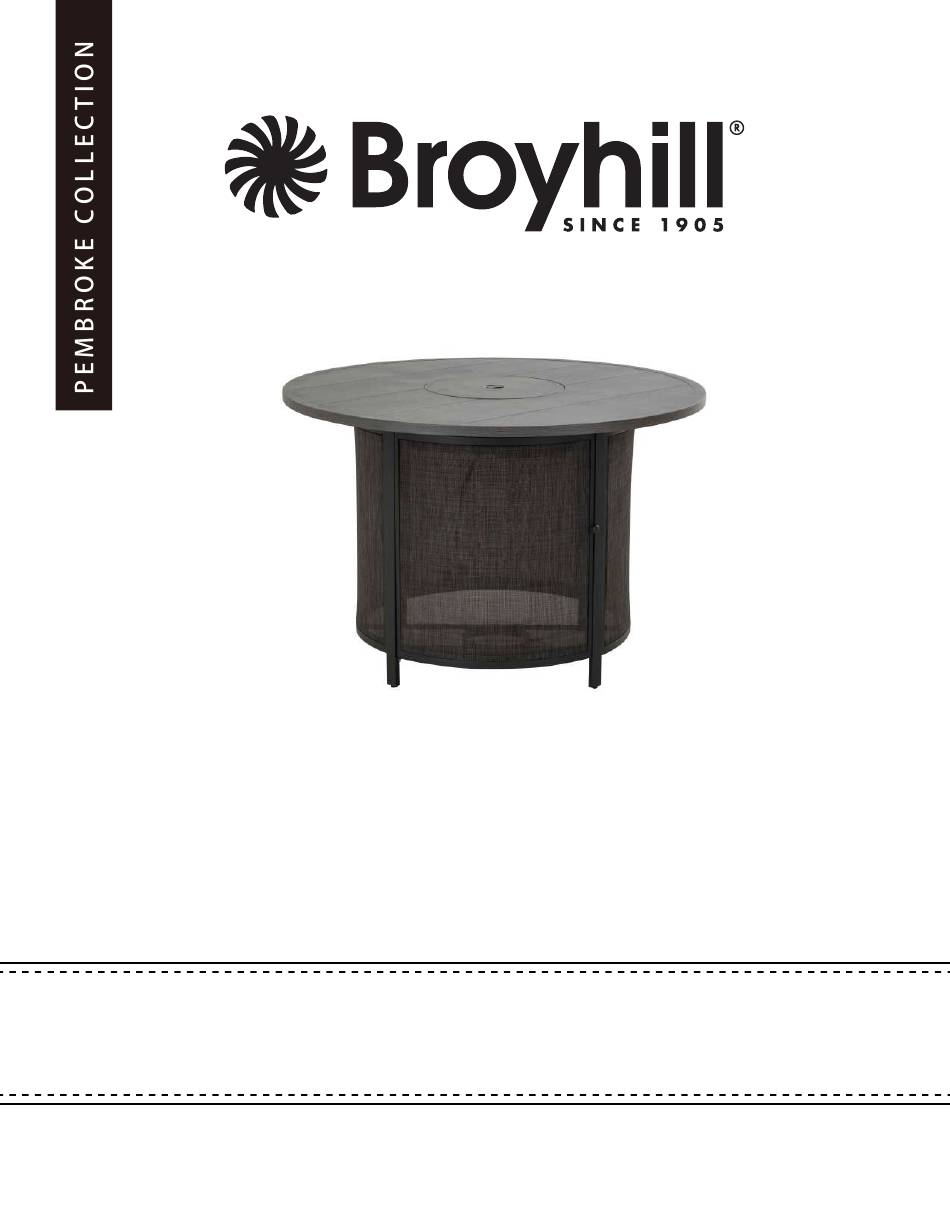

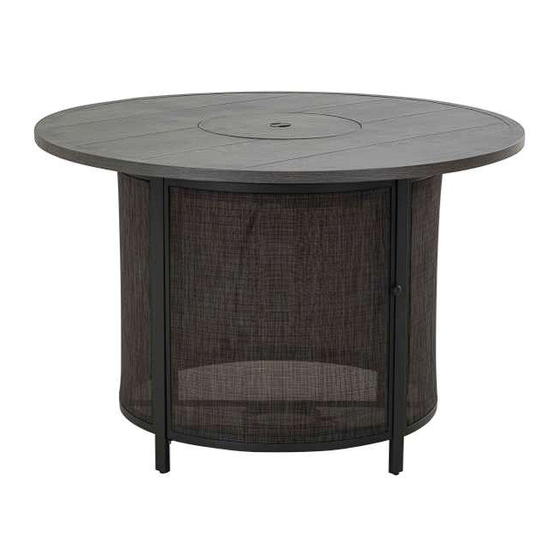

- Page 1 ASSEMBLY INSTRUCTIONS ITEM#: A208064301 SKU#:810580389 PEMBROKE FIRE PIT DINING TABLE Need help? We are here for you! 1(866)578-6569 24/7 • Toll Free Production number: 2023100480...
- Page 2 For Outdoor Use Only. WARNING: Leave this manual with the INSTALLER: Installation and service must be performed by a appliance. qualified installer, service agency, or the gas Retain this manual for future CONSUMER: supplier. reference. DANGER FIRE OR EXPLOSION HAZARD If you smell gas: 1.
-
Page 3: Table Of Contents
TABLE OF CONTENTS General information - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3 Specification - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4 Important safety information and precaution... -
Page 4: Specification
SPECIFICATION PEMBROKE FIRE PIT DINING TABLE Product name A208064301 Model NO. Rated Heat Output 38,000 BTU/HR Fuel Propane - LP Gas Supply 20 lb. LP - Gas cylinder Manifold Pressure 11 Inches W.C. Orifice Size (diameter) 1.9mm Gas Supply Pressure Max. - Page 5 • Open the door and inspect the hose assembly and burner prior to each use. If there is evidence of excessive abrasion or wear or if the hose or burner is damaged, it must be replaced by appropriate part from the manufacturer. •...
-
Page 6: Expanded View
EXPANDED VIEW 6/20... -
Page 7: Parts List
PARTS LIST Label Part Number Description Part Image P00310013401 Mesh screen P00310010302 P00210055301 Table top P00410019401 Door P00400038201 Rear door P00380057001 Side panel P00670007101 Cylinder rack P002500130 Fire bowl P006600048 Lava rock 7/20... - Page 8 HARDWARE PACK Label Pa rt Number Description Pa rt Image H010010003 Bolt M6*15 Flat washer H050030001 H090010017 Wrench M6 If you want to replace the parts listed, please contact Customer Service Center: 1(866) 578-6569. 8/20...
-
Page 9: Installation
STEP 1 Fit Side panel (F) with Rear door (E), assemble with Bolt (H1) and Flat washer (H2), then assemble with Wrench (HW). 2 places in total. 9/20... - Page 10 STEP 2 Fit Side panel (F) with Rear door (E), assemble with Bolt (H1) and Flat washer (H2), then assemble with Wrench (HW). 2 places in total. 10/20...
- Page 11 STEP 3 Fit Cylinder rack (G) with Side panel (F), assemble with Bolt (H1) Flat washer (H2), then assemble with Wrench (HW). 4 places in total. 11/20...
- Page 12 STEP 4 Fit Door (D) with Side panel (F), assemble with Bolt (H1) and Flat washer (H2), then assemble with Wrench (HW). 4 places in total. 12/20...
- Page 13 STEP 5 Fit Table top (C) with Fire bowl (J), assemble with Bolt (H1) and Flat washer (H2), then assemble with Wrench (HW). 4 places in total. 13/20...
- Page 14 STEP 6 1 AA 1.5V battery required (not included)，refer to page 16 -SETUP. assembled (D/E/F) assembled Table top (C) with Bolt (H1) and Flat washer (H2), and tighten all Bolts with Wrench (HW). Please note that the control knob should face the door.
- Page 15 STEP 7 Pour the Lava rock (K) into the Fire bowl (J), close the Mesh screen (B), and finally close the Lid (A). 15/20...
-
Page 16: Location
LOCATION Your Gas appliance must be installed on a flat, stable surface, away from any combustible materials or construction. SET - UP Your Gas appliance comes assembled, ready for a Gas connection. 1 - Remove the appliance from container box and place it on any level, outdoor, non-combustible surface. -
Page 17: Operation
OPERATION: LEAK TEST !!!WARNING!!! ・ Do not use an open flame to check for leaks. ・ Do not smoke during testing. ・ Do not test indoors. ・ A leak check must be performed whenever the gas cylinder is replaced. 1 - Make sure the control knob is in the “OFF” position. 2 - Make sure the gas cylinder is correctly and securely connected to the pressure regulator, without over tightening. -
Page 18: Storage And Maintenance
NOTE: While in use, the burner flame should be mainly blue in appearance with a small amount of yellow. The flame can be identified by the following figure. Warning: Lighting the Fire Pit improperly could lead to an unsafe condition. 7 - Press in and turn the control valve knob clockwise to OFF to shut down fireplace. -
Page 19: Trouble Shooting
TROUBLE SHOOTING: PROBLEM OBSERVED POSSIBLE CAUSE CORRECTIVE MEASURES Gas odor Gas leak See “If you smell gas:” on front cover of manual Check all gas connections Delayed ignition Low gas pressure Check gas supply pressure Clean burner ports-see manual Clogged or dirty burner section ports Blocked orifice Check orifice opening... - Page 20 PARTS LIST Label Part Number Description Part Image P00310010302 Mesh screen Note: Remove the lid and put the protective mesh screen over your burner and lava rock when in use! CAUTION: Please be advised that this fire pit table uses natural lava rock that may crackle or pop when it is used.
