www.ti.com

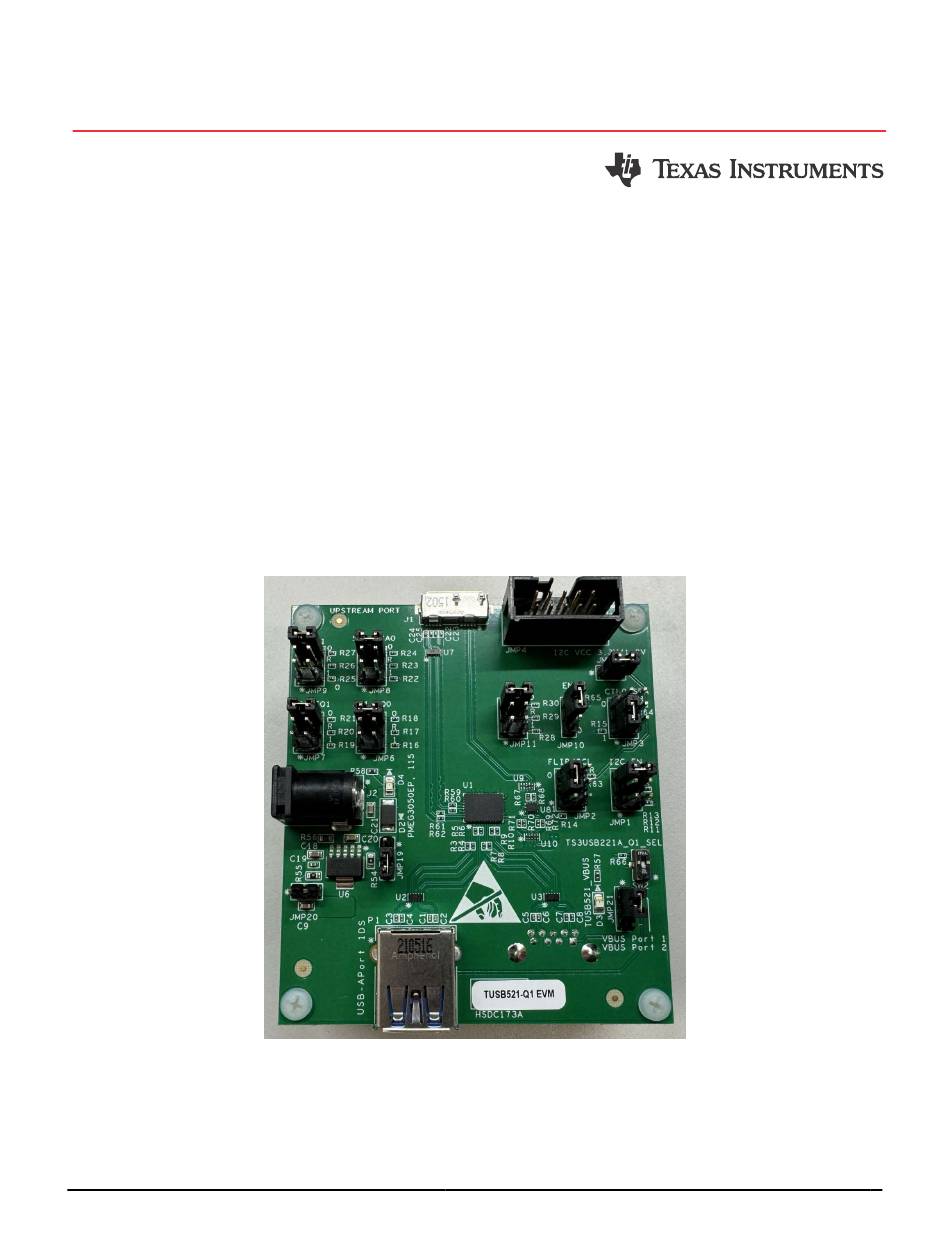

EVM User's Guide: TUSB521Q1-EVM
TUSB521-Q1 Evaluation Module
Description
The TUSB521Q1-EVM is a linear redriving switch
supporting data rates up to 5Gbps. This device
uses 5th generation USB redriver technology. The
TUSB521Q1-EVM can be used with a host/hub
upstream with two devices and hubs downstream to
demonstrate the mixture of the multiplexer capabilities
with the redriving capabilities that the TUSB521-Q1
can provide.
Features
®
USB Type-C
2:1 or 1:2 redriver MUX
Supports USB 3.2 up to 5Gbps
Ultra-low-power architecture
Linear redriver with up to 12dB equalization at
2.5GHz
SLLU377 – APRIL 2024
Submit Document Feedback
Sixteen equalization settings
Configuration through GPIO or I2C
Supports either 1.8V or 3.3V I2C signaling levels
Hot-plug capable
No host or device side requirement
Operates from a single 3.3V supply
Automotive grade 2 temperature range: –40°C to
105°C
5mm × 7mm, 0.5mm pitch VQFN package
Applications
PC and notebooks
TV
Gaming
Home theater and entertainment
Smart phones
Tablets

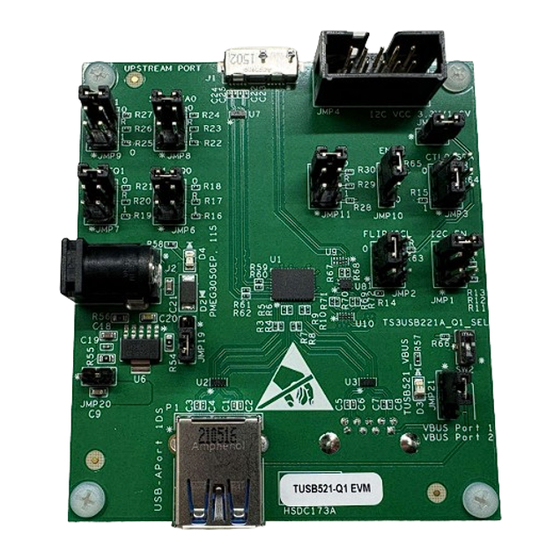

TUSB521Q1-EVM
Copyright © 2024 Texas Instruments Incorporated
Description
TUSB521-Q1 Evaluation Module
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the TUSB521-Q1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Texas Instruments TUSB521-Q1

  • Page 1 • Automotive grade 2 temperature range: –40°C to demonstrate the mixture of the multiplexer capabilities 105°C with the redriving capabilities that the TUSB521-Q1 • 5mm × 7mm, 0.5mm pitch VQFN package can provide. Applications Features •...
  • Page 2: Kit Contents

    Figure 1-1. TUSB521Q1-EVM Block Diagram 1.4 Device Information The TUSB521-Q1 is a linear redriver with 1:2 DeMUX or 2:1 MUX function for USB Type-C applications. The TUSB521-Q1 is intended to reside between a Host and a USB-C receptacle or between a USB device and a USB-C receptacle.
  • Page 3: Equalization Control

    (TS3USB221 S) needs to be pulled up connecting pins 2 and 3, sending the USB2 signals to port 2. 2.2 Equalization Control Equalization (EQ) can be controlled using I2C or pin-strapping. Each of the TUSB521-Q1 receiver lanes has individual controls for receiver equalization (see Configuration Pin-Level Definitions).
  • Page 4 USB 3.2 Upstream Facing Ports EQ Setting # EQ Gain at EQ Gain at SSEQ1 SSEQ0 2.5GHz (dB) 2.5GHz (dB) -0.9 -2.4 -1.3 -0.4 TUSB521-Q1 Evaluation Module SLLU377 – APRIL 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 5 Hardware Design Files 3 Hardware Design Files 3.1 Schematics Figure 3-1. Schematic Page 1 SLLU377 – APRIL 2024 TUSB521-Q1 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 6 Hardware Design Files www.ti.com Figure 3-2. Schematic Page 2 Figure 3-3. Schematic Page 3 TUSB521-Q1 Evaluation Module SLLU377 – APRIL 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 7 Hardware Design Files 3.2 PCB Layouts Figure 3-5. TUSB521Q1-EVM PCB Layer 2 (Ground) Figure 3-4. TUSB521Q1-EVM PCB Layer 1 (Top) SLLU377 – APRIL 2024 TUSB521-Q1 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 8 Hardware Design Files www.ti.com Figure 3-7. TUSB521Q1-EVM PCB Layer 4 (Signal) Figure 3-6. TUSB521Q1-EVM PCB Layer 3 (Power) TUSB521-Q1 Evaluation Module SLLU377 – APRIL 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 9 Hardware Design Files Figure 3-9. TUSB521Q1-EVM PCB Layer 6 (Bottom) Figure 3-8. TUSB521Q1-EVM PCB Layer 5 (Ground) SLLU377 – APRIL 2024 TUSB521-Q1 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 10 CONN RCPT USB3.1 TYPEA 9POS R/A USB3 Type A USB3_TYPEA Amphenol ICC (FCI) GSB4111312HR Receptacle R3,R4,R5,R6,R7,R8,R9 RES SMD 2 OHM 5% 1/20W 0201 RC0201 Panasonic Electronic ERJ-1GNJ2R0C ,R10,R59,R60,R61,R62 Components TUSB521-Q1 Evaluation Module SLLU377 – APRIL 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 11 TVS DIODE 3.3VWM 3VC DFN2510A-10 PUSB3FR4 SOT1176-1 Nexperia USA Inc. PUSB3FR4Z IC REG LINEAR 3.3V 1.5A SOT223-6 TPS7A4533 SOT223-6 Texas Instruments TPS7A4533DCQ TS3USB221E TS3USB221E RSE0010A Texas Instruments TS3USB221ERSER SLLU377 – APRIL 2024 TUSB521-Q1 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 12: Additional Information

    4 Additional Information 4.1 Trademarks USB Type-C ® is a registered trademark of USB Implementers Forum. All trademarks are the property of their respective owners. TUSB521-Q1 Evaluation Module SLLU377 – APRIL 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
