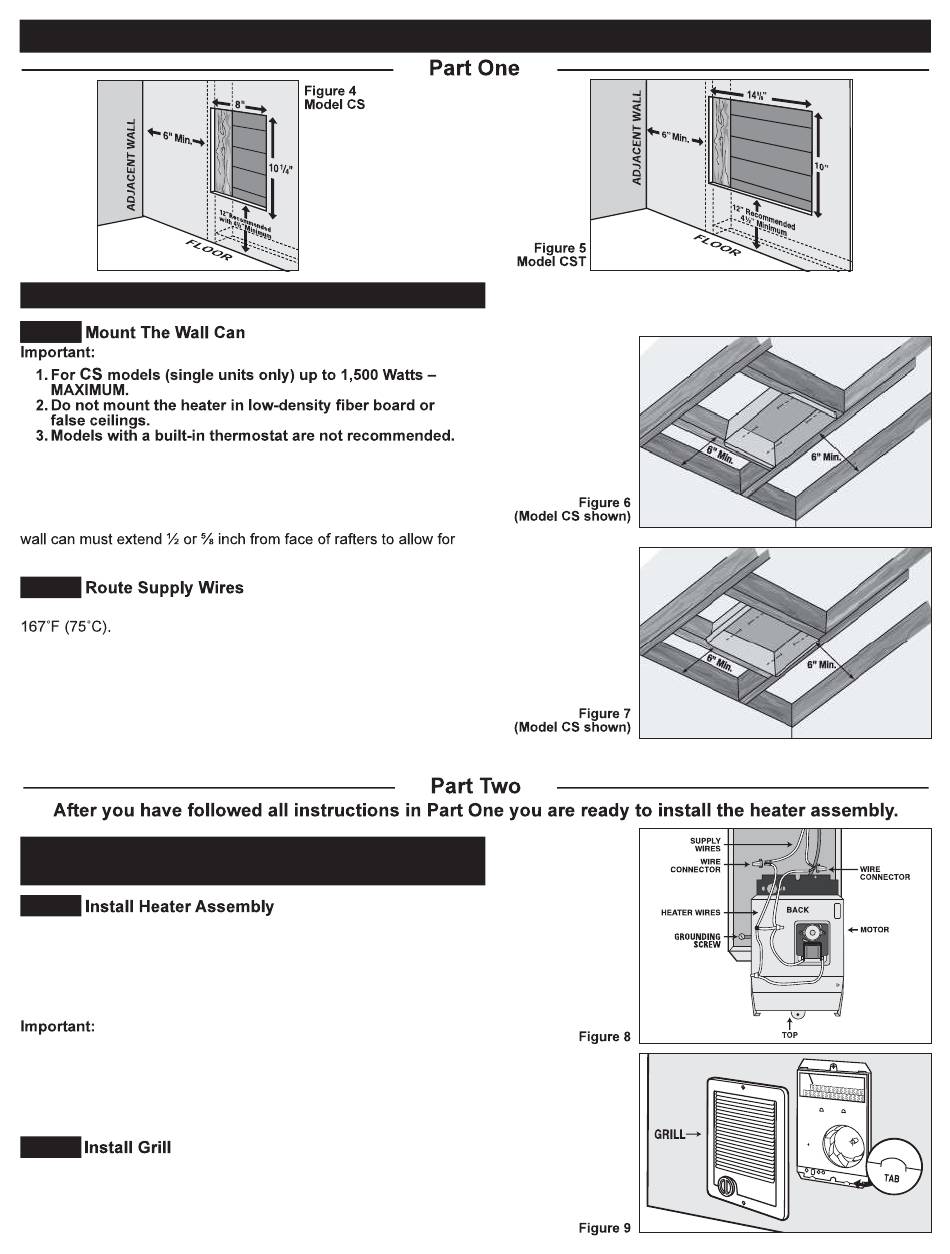

Cadet Com-Pak CS051 Owner's Manual page 4

INSTALLATION INSTRUCTIONS
How do I install for a ceiling mount?
STEP 1
REQUIRED MINIMUM distance of 6 inches from adjacent
surfaces (See Figure 6). However, Cadet recommends 12 inches
from adjacent surfaces for longer and cleaner performance.
Secure the wall can to studs/rafters on opposite sides (See
Figures 6 and 7) with 4 screws (not provided). The face of the
thickness of sheetrock.
STEP 2
Important: Supply connections must use wires suitable for at least
Route supply wire from the circuit breaker, to the thermostat, to
the wall can. Remove a knockout from the wall can and attach the
supply wire with a strain relief connector (not included) leaving
a minimum of 6 inches wire lead. Connect supply ground wire to
grounding screw in wall can (See Figure 3). Proceed to Part Two.
How do I insert the heater assembly into the
wall can?
STEP 1
Turn the heater face down, element facing down and the motor
facing up. Connect the supply wires to the heater wires with wire
connectors (not included).
that the element and fan are facing you, with the fan below the ele-
ment. Insert the bottom edge of the heater assembly into the tabs in
the bottom lip of the wall can (See Figure 9).
Push wires into bottom of wall can during insertion. Be
sure that supply wires are not caught between motor and wall can.
Attach heater assembly at top with screw provided.
Note: Warranty is void if any material is sprayed on the element or blower. Use a paint
mask to cover any exposed areas of the heater if walls are to be textured or painted.
STEP 2
Secure grill with the screws provided. If you have a built-in thermo-
stat model, slide thermostat knob onto shaft. Turn power on at the
main disconnect panel.
Page 4
(See Figure 8). Rotate the heater up so
(continued)
