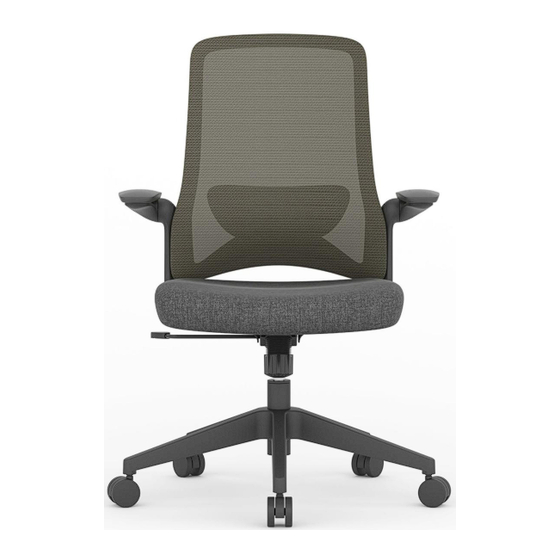

- Page 1 RYZE-BLK ASSEMBLY INSTRUCTIONS OPERATING INSTRUCTIONS WARRANTY CUSTOMER SERVICE： parts@raynorgroup.com CUSTOMER SERVICE： 1-800-637-0005 www.eurotechseating.com...
-
Page 2: Part List
ASSEMBLY INSTRUCTIONS RYZE-BLK Remove all items from the carton. Verify all components before assembly. PART LIST Description Part Qty. Spare Backrest Seat Armrests ( 1 left & 1 right armrest ) Star Base Seat Post(Cylinder) Caster Mechanism Armrest Bolts ( M6×40mm Blue ) Back Bolts ( M6×20mm Blue ) - Page 3 ASSEMBLY INSTRUCTIONS RYZE-BLK...
- Page 4 RYZE-BLK Remove all items from the carton. Verify all components before assembly. STEP STEP 1 STEP 2 Press the Casters (F) into the holes at the end of each Attach each Armrest (C) to the Seat Cushion (B), Using 3 leg of the Base (D).
- Page 5 RYZE-BLK Remove all items from the carton. Verify all components before assembly. STEP STEP 5 STEP 6 Use the correct Mechanism Bolts (J) and Back Bolts (I), Now turn the assembled seat upright and locate the center Assemble the Mechanism (G) to the Seat Cushion (B), hole of the Mechanism over the Seat Post.
- Page 6 PERATING INSTURCTION RYZE-BLK A BACKREST TILT ADJUSTMENT A BACKRESTT TILT ADJUSTMENT While seated, Pull out the single control lever then the backrest can be tilted slightly. While pushing in the single control lever the backrest can be locked in the original position. The tilt angle is approximately 23°.
