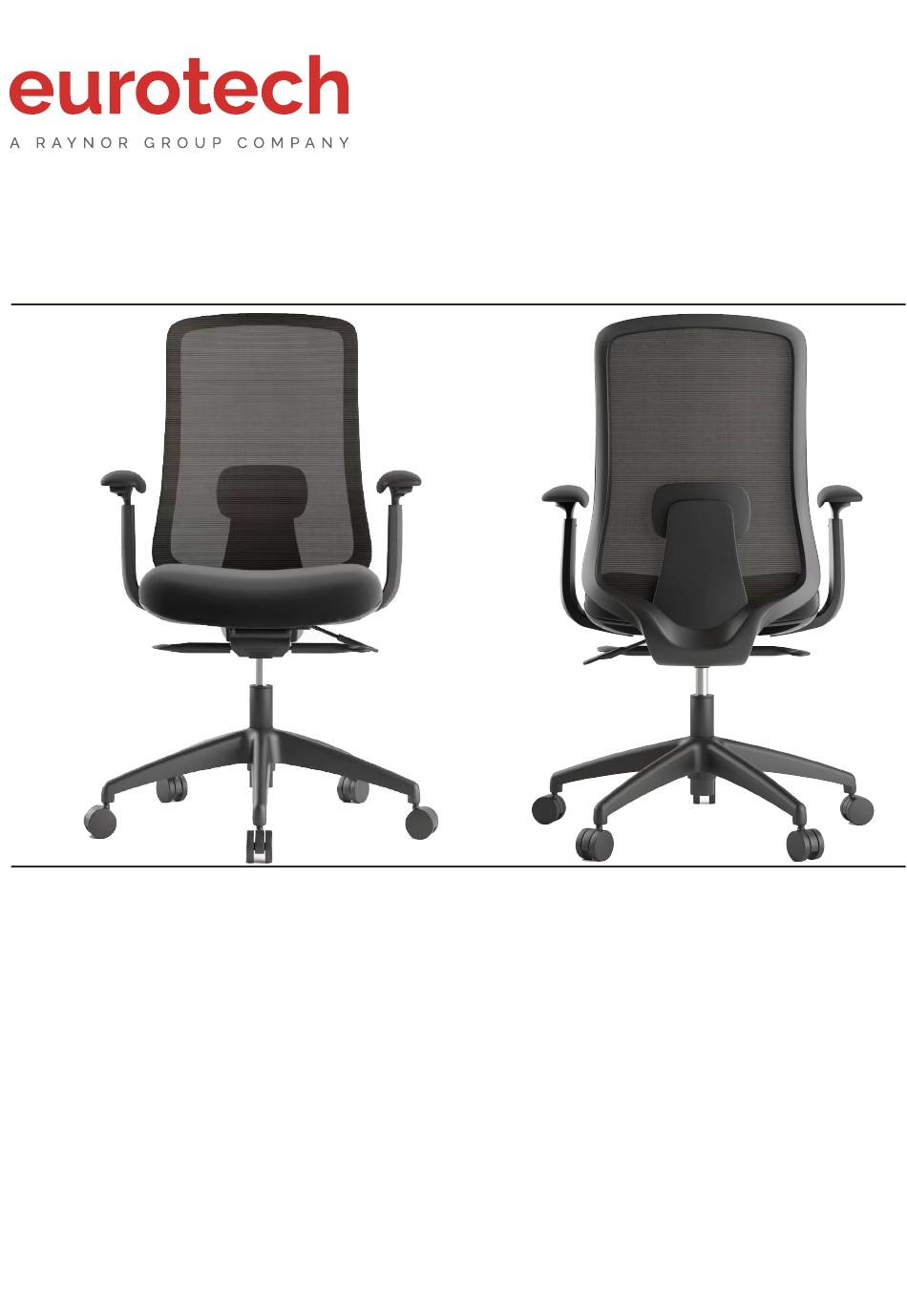

- Page 1 FLEXY-BLK ASSEMBLY INSTRUCTIONS OPERATING INSTRUCTIONS WARRANTY CUSTOMER SERVICE： parts@raynorgroup.com CUSTOMER SERVICE： 1-800-637-0005 www.eurotechseating.com...
-
Page 2: Part List
ASSEMBLY INSTRUCTIONS FLEXY-BLK Remove all items from the carton. Verify all components before assembly. PART LIST Description Part Spare Qty. Backrest Seat Armrests ( 1 left & 1 right armrest ) Star Base Seat Post(Cylinder) Caster Mechanism Armrest Bolts ( M6×50mm Blue ) Back Bolts ( M8×20mm Blue ) - Page 3 ASSEMBLY INSTRUCTIONS FLEXY-BLK Remove all items from the carton. Verify all components before assembly. Part List Qty. Part Description Spare Mechanism Bolts ( M6×45mm Blue) Washers for Bolts Ø *17*2.0 Spring Washers for Back Bolts Ø *2.0 Allen Wrench 5mm...
- Page 4 FLEXY-BLK Remove all items from the carton. Verify all components before assembly. STEP 1 STEP 2 STEP Press the Casters (F) into the holes atthe end of each Attach the Armrest (C) to the Seat Cushion (B), using leg of the Base (D). Armrest BoIts (H) and Washers (K) for each arm.
- Page 5 ASSEMBLY INSTRUCTIONS FLEXY-BLK Remove all items from the carton. Verify all components before assembly. STEP 5 Now turn the assembled seat upright and locate the center hole of the Mechanism over the Seat Post. Push down firmly until the connection is secure. PREVENTIVE MAINTENANCE AND WARNING ! •...
- Page 6 OPERATING INSTRUCTIONS FLEXY-BLK B ARM PAD FORWARD AND BACKWARD A ARMREST HEIGHT ADJUSTMENT ADJUSTMENT A ARMREST HIGHT ADJUSTMENT While seated, grasp each armrest and raise to your desired height. In order to lower the arm, lift the armrest to its highest position and it will go back down to the lowest height.
- Page 7 OPERATING INSTRUCTIONS FLEXY-BLK E LUMBAR SUPPORT HEIGHT F SEAT HEIGHT A DJUSTMENT E LUMBAR SUPPORT HEIGHT ADJUSTMENT ADJUSTMENT The height of the lumbar support can be adjusted by lifting or lowering the backrest height. The lumbar support height adjustment range is approximately 1.96''.
- Page 8 OUR PROMISE. They say with age comes wisdom. And while we ’ ve learned a lot since we sold our first office chair in 1979, even then we knew that superior craftsmanship and design are essential ingredients in delivering real value for our customers. All these years later, those three simple pillars still stand behind our promise of exceptional seating with every chair we sell.
