- Page 1 G87 BMW M2 Hood Louver Install Installation Manual Author: C. Warner Release Date: 2024/03/11 Approvals: E. Hazen Document Revisions Date Author Description 2024/03/11 C. Warner Issued for Release Verus Engineering sales@verus-engineering.com...
- Page 2 1. Introduction ............................<3> 1.1. Overview ............................ <3> 1.2. Difficulty ............................. <3> 1.3. Time Required ..........................<3> 1.4. Tools Needed ..........................<3> 1.5. Hood Louver Kit Components ....................<3-4> 2. Hood Louver Kit Install ........................<4-8> Verus Engineering sales@verus-engineering.com 3/6/2016...

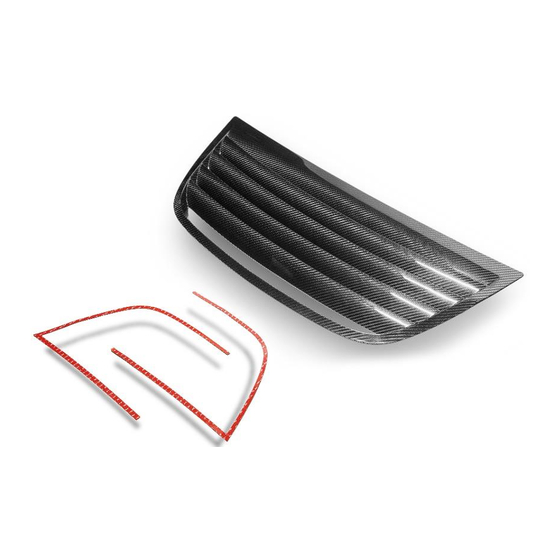

- Page 3 1.4.10. Vacuum 1.4.11. Touch-Up Paint (Optional) 1.5. Hood Louver Components 1.5.1. (1) Hood Louver 1.5.2. Hardware Bag 1.5.2.1. (1) Cut Template 1.5.2.2. (1) Pre-Cut Left Side 3M VHB Tape 1.5.2.3. (1) Pre-Cut Right Side 3M VHB Tape Verus Engineering sales@verus-engineering.com 3/6/2016...
- Page 4 2. Hood Louver Kit Install 2.1. Verus Engineering is not responsible for damage to your vehicle by following this manual. 2.2. Remove the hood by removing the four 13mm nuts and set the hood on a soft flat surface. We like to use a roll of carpet to ensure the hood surface does not get scratched or damaged.
- Page 5 2.7. Mark the cut area with painter’s tape around the structure as shown below. We are using the raised edge to keep the cut off wheel away from the hood skin. A photo of what this should look like is below. Verus Engineering sales@verus-engineering.com 3/6/2016...
- Page 6 Flip the hood back over and test fit the hood louver before the template is removed. We do this to ensure the hood louver will sit flush with the hood. If it does not, make the necessary cuts to ensure it does sit flush. Verus Engineering sales@verus-engineering.com 3/6/2016...
- Page 7 Note: Ensure the leading edge of the hood louver follows the natural curvature of the hood. This is being pointed at in the photo below. Verus Engineering sales@verus-engineering.com 3/6/2016...
- Page 8 Vacuum all the shavings from inside the hood as well as possible and reinstall the hood on the car. 2.17. Congratulations! You have completed installation of the G87 BMW M2 Hood Louver! If you have any comments, concerns, or issues, please contact sales@verus-engineering.com. Verus Engineering sales@verus-engineering.com 3/6/2016...
